Generic Blower Motor Housing Cover and Filter for BMW F07 F10 F06 F01 F02 (OEM 64119216222) Instruction Manual

1. Прадукт скончыўсяview

This document provides instructions for the installation and maintenance of the Generic Blower Motor Housing Cover with integrated filter, designed as a direct replacement for specific BMW models. This component is crucial for maintaining optimal airflow and air quality within your vehicle's HVAC system.

Малюнак 1.1: Зверху ўніз view of the Blower Motor Housing Cover with the integrated filter visible.

2. Асаблівасці прадукту

• Прамая замена: Engineered to factory specifications for a perfect match and seamless integration with your vehicle's existing components.
• Трывалая канструкцыя: Made from high-quality black plastic material, designed to withstand extreme temperature variations within the HVAC system for long-term reliability.
• Optimal Airflow & Filtration: Features a built-in filter that effectively captures dust and debris, preventing them from entering the cabin ventilation system and ensuring clean air circulation.
• Precise Fitment: Designed to match original equipment dimensions and mounting points, ensuring a secure fit, eliminating vibration noise, and providing a proper seal.
• Лёгкая ўстаноўка: Requires no modifications for mounting, allowing for direct installation into the original location, which saves time and labor.

3. Сумяшчальнасць

This blower motor housing cover and filter (OEM part number 64119216222) is compatible with various BMW 5 Series, 6 Series, 7 Series, and GT models manufactured between 2009 and 2018. Please verify your vehicle's OEM part number before installation.

Compatible BMW Models (2009-2018):

• BMW 740Ld xDrive
• BMW Alpina B7 xDrive
• BMW Alpina B7
• BMW Alpina B7L
• BMW 535i
• BMW 550i xDrive
• BMW 535i GT xDrive
• BMW 535i xDrive
• BMW Alpina B7L xDrive
• BMW 550i
• BMW 740i
• BMW 750Li xDrive
• BMW 535i GT
• BMW 550i GT
• BMW 550i GT xDrive
• BMW 750i xDrive
• BMW 760Li
• BMW 740Li
• BMW 750Li
• BMW 528i
• BMW 650i
• BMW Alpina B6 xDrive Gran Coupe
• BMW 535d
• BMW 535d xDrive
• BMW 640i xDrive
• BMW 640i xDrive Gran Coupe
• BMW M6 Gran Coupe
• BMW ActiveHybrid 7
• BMW 528i xDrive
• BMW M5
• BMW 650i xDrive Gran Coupe
• BMW 640i Гран Купэ
• BMW 650i Гран Купэ
• BMW ActiveHybrid 5
• BMW M6
• BMW 650i xDrive
• BMW 640i
• BMW 740Li xDrive
• BMW 750i

4. Інструкцыя па ўстаноўцы

This section outlines the general steps for replacing the blower motor housing cover and filter. Professional installation is recommended if you are unfamiliar with automotive repair procedures.

1. Падрыхтоўка: Ensure the vehicle is turned off and the ignition is disengaged. For safety, disconnect the negative terminal of the car battery.
2. Знайдзіце існуючы кампанент: Identify the current blower motor housing cover in your vehicle. Its location typically varies by BMW model but is often found in the passenger footwell area or under the dashboard. Consult your vehicle's service manual for the exact location.
3. Remove Old Cover: Carefully unfasten any clips, screws, or retaining tabs securing the old blower motor housing cover. Disconnect any electrical connectors if present.
4. Агледзець вобласць: Clean any debris or dust from the blower motor area before installing the new component.
5. Install New Cover: Position the new Generic Blower Motor Housing Cover with Filter (OEM 64119216222) into place. Ensure all mounting points align correctly.
6. Бяспечны кампанент: Fasten all clips, screws, or retaining tabs to secure the new cover. Reconnect any electrical connectors that were detached.
7. Канчатковая праверка: Verify that the new cover is securely installed and that there are no loose connections. Reconnect the car battery.

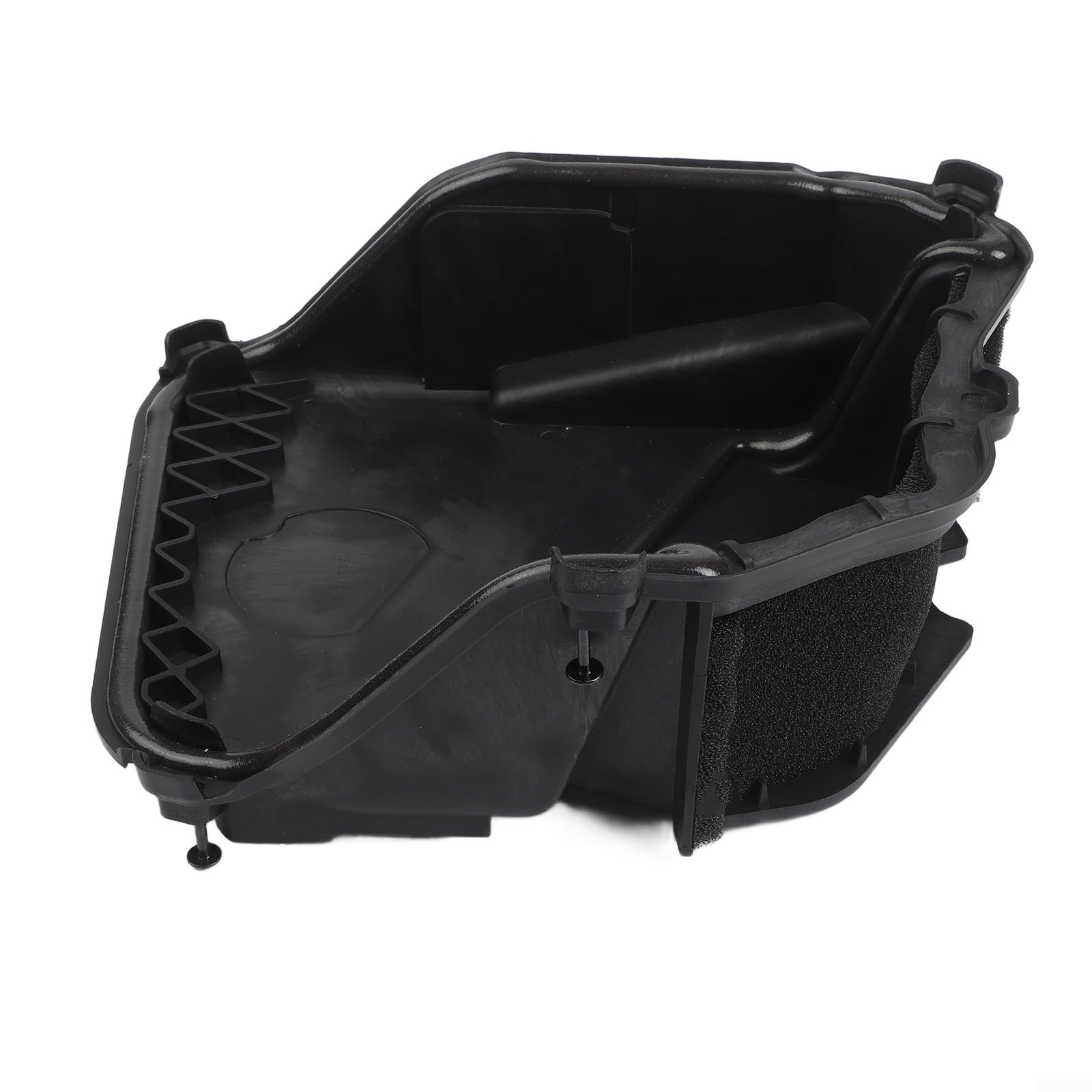

Малюнак 4.1: Інтэр'ер view of the housing cover, highlighting the integrated filter for clean air intake.

Малюнак 4.2: Падрабязны views of the housing cover, illustrating its design and various attachment points for secure installation.

5. Аперацыя

The blower motor housing cover is a passive component that protects the blower motor and houses the air filter. Once installed, it operates continuously with your vehicle's HVAC system to ensure proper air intake and filtration. No user interaction is required for its operation.

6. Тэхнічнае абслугоўванне

Regular maintenance of the integrated air filter is essential for optimal HVAC performance and cabin air quality. The filter within this housing cover is designed to capture airborne particles.

Замена фільтра:

• The integrated filter should be inspected periodically and replaced according to your vehicle manufacturer's recommendations or if you notice reduced airflow or unusual odors from the HVAC system.
• To replace the filter, follow the initial steps of the installation guide to access the housing cover. The filter can typically be removed and replaced without needing to fully detach the entire housing cover.
• Ensure the replacement filter is compatible with OEM part number 64119216222.

7. Выпраўленне непаладак

• Паменшаны паток паветра: If you experience reduced airflow from your vehicle's vents after installation, check that the housing cover is securely fastened and properly sealed. A clogged filter can also cause reduced airflow; consider inspecting or replacing the filter.
• Незвычайныя шумы: If you hear rattling or other unusual noises, ensure all clips and screws are tightened, and the housing cover is seated correctly. Improper installation can lead to vibrations.
• Дрэнная якасць паветра: If cabin air quality remains poor, ensure the filter is correctly installed and not damaged. A new filter may be required.

8. Тэхнічныя характарыстыкі

9. Змесціва ўпакоўкі

• 1 x Blower Motor Housing Cover with Filter
