1. Уводзіны
This manual provides essential information for the safe and effective installation, operation, and maintenance of your Generic Replacement Belt, model RB-530 01007015P. This belt is designed as a replacement part for specific outdoor power equipment, including White-Outdoor 414 CRT and compatible M-series models (M48, M54, M60, M72). Please read this guide thoroughly before attempting any installation or maintenance procedures.
Важна: The model number provided (RB-530 01007015P) is for reference. Always verify compatibility with your specific equipment model and existing belt specifications before purchase and installation. This product may not be compatible with all models, even if listed as a general reference.
2. Інфармацыя па бяспецы
Always prioritize safety when working with machinery. Failure to follow safety instructions can result in serious injury or damage to equipment.
- Ensure the equipment is turned off, spark plug wire disconnected (for gasoline engines), and all moving parts have come to a complete stop before beginning any work.
- Карыстайцеся адпаведнымі сродкамі індывідуальнай абароны (СІЗ), у тым ліку ахоўнымі акулярамі і пальчаткамі.
- Refer to your equipment's original manufacturer's manual for specific safety procedures and belt replacement instructions.
- Трымайце дзяцей і пабочных асоб далей ад рабочай зоны.
- Калі вы не ўпэўненыя ў якой-небудзь працэдуры, звярніцеся па дапамогу да кваліфікаванага спецыяліста.
3. Усталёўка (налада)
This section outlines the general steps for replacing a drive belt. Specific procedures may vary depending on your equipment model. Always consult your equipment's service manual for detailed instructions.
3.1 Неабходныя інструменты
- Wrenches or sockets (appropriate sizes for your equipment)
- Pry bar or similar tool (for tensioning, if applicable)
- Пальчаткі
- Ахоўныя акуляры
3.2 Працэдура замены
- Падрыхтуйце абсталяванне: Park the equipment on a flat, stable surface. Turn off the engine, remove the ignition key, and disconnect the spark plug wire to prevent accidental starting. Engage the parking brake.
- Access Belt Area: Depending on your equipment, you may need to remove deck covers, guards, or other components to gain access to the belt system. Refer to your equipment's manual.
- Зняць напружанне: Locate the belt tensioner (often a spring-loaded idler pulley). Use a wrench or pry bar to relieve tension on the old belt.
- Зняць стары рамень: Carefully remove the old belt from all pulleys. Note the routing path of the belt before removal, as this will be crucial for installing the new one. Taking a photo can be helpful.
- Праверце шківы: While the belt is off, inspect all pulleys for wear, damage, or excessive play. Replace any worn components.
- Усталяваць новы рамень: Route the new Generic Replacement Belt (RB-530 01007015P) around the pulleys, following the exact path of the old belt. Ensure the belt is seated correctly in all pulley grooves.
- Прыкласці напружанне: Reapply tension to the belt using the tensioner mechanism. Ensure the belt is taut but not overly tight, allowing for proper operation without excessive strain on bearings.
- Зборка: Reinstall any covers, guards, or components that were removed.
- Тэставая аперацыя: Reconnect the spark plug wire. Start the equipment and carefully test its operation at a low speed in a safe, open area. Listen for unusual noises and observe belt movement. If any issues arise, shut down immediately and re-inspect.

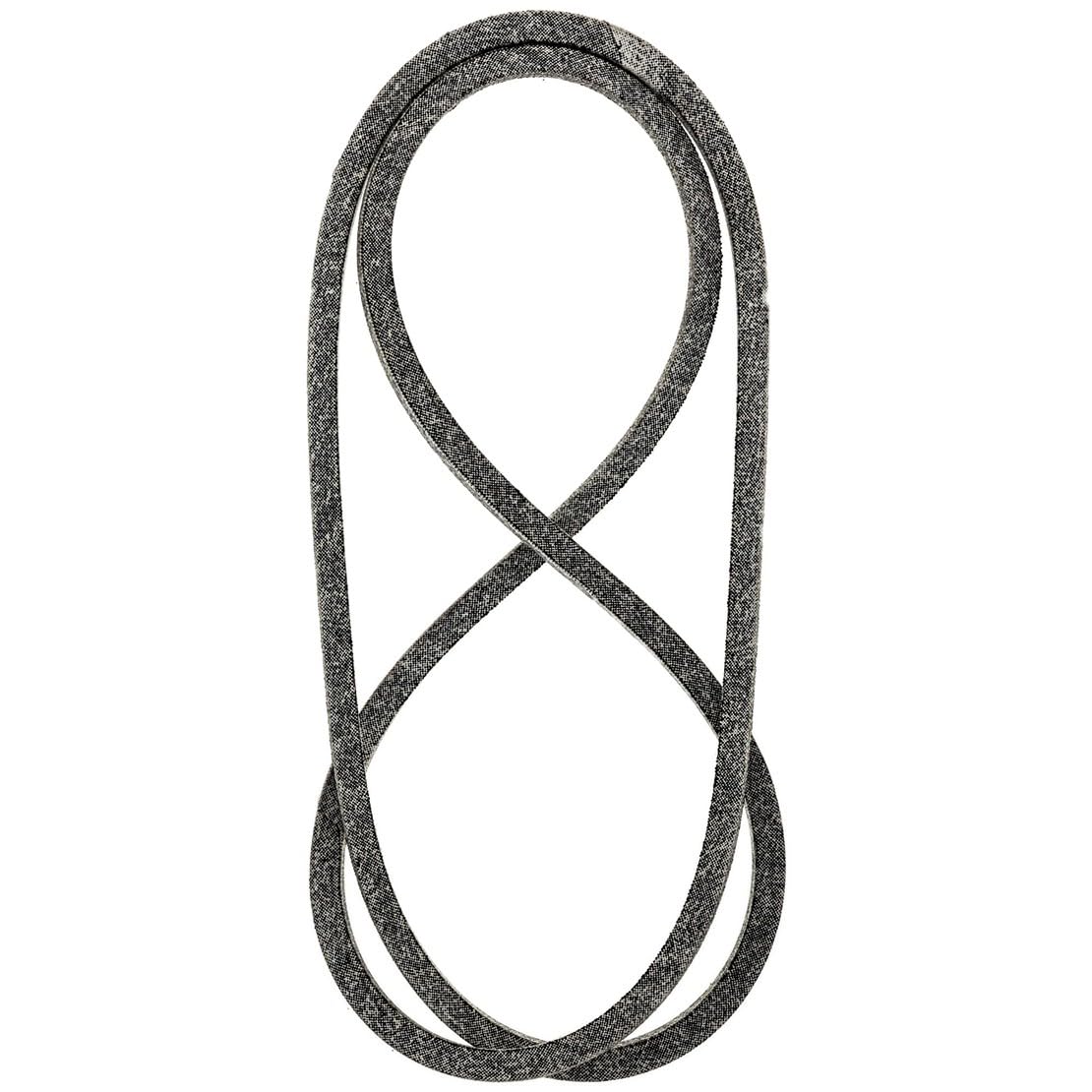

Image 1: Generic Replacement Belt RB-530 01007015P. This image shows the replacement belt, which is a V-belt design, typically used in power transmission systems for outdoor equipment.
4. Эксплуатацыйныя меркаванні
Once the new belt is installed, proper operating practices will help extend its lifespan and ensure efficient equipment performance.
- Avoid sudden starts and stops, which can put excessive strain on the belt.
- Ensure the equipment is not overloaded beyond its recommended capacity.
- Regularly check for debris or obstructions that could interfere with belt operation.
- If the belt slips or squeals, it may indicate improper tension or wear. Address these issues promptly.
5. Тэхнічнае абслугоўванне
Regular inspection and maintenance are crucial for the longevity and performance of your replacement belt.
- Візуальны агляд: Periodically inspect the belt for signs of wear, cracking, fraying, glazing, or stretching. Replace the belt if any significant damage is observed.
- Праверка нацяжэння: Ensure the belt maintains proper tension. A loose belt can slip, causing loss of power and accelerated wear. An overly tight belt can strain bearings and reduce belt life.
- Чысціня: Keep the belt and pulleys free from dirt, grass clippings, oil, and other debris. Contaminants can cause slippage and premature wear.
- захоўванне: If the equipment is stored for an extended period, ensure the belt is clean and properly tensioned. Store in a cool, dry place away from direct sunlight and chemicals.
6. Выпраўленне непаладак
| праблема | Магчымая прычына | Рашэнне |
|---|---|---|
| Спаўзанне рамяня | Incorrect tension; Worn belt; Oily/greasy belt or pulleys; Overload | Adjust tension; Replace belt; Clean belt/pulleys; Reduce load |
| Excessive noise (squealing) | Loose belt; Misaligned pulleys; Worn belt | Adjust tension; Check pulley alignment; Replace belt |
| Belt breaking prematurely | Over-tensioned belt; Misaligned pulleys; Damaged pulleys; Incorrect belt type | Adjust tension; Check pulley alignment; Inspect/replace pulleys; Ensure correct belt model |
| Equipment not engaging | Broken belt; Severely slipped belt; Engagement mechanism failure | Replace belt; Adjust tension; Inspect engagement linkage (refer to equipment manual) |
7. Тэхнічныя характарыстыкі
- Тып прадукту: Запасны прывадны рамень
- Нумар мадэлі: RB-530 01007015P (Also known as 810-CBL2076T)
- Памеры: Approximately 51 1/4 inches (length) x 1/2 inch (width)
- Сумяшчальнае абсталяванне: White-Outdoor 414 CRT, M-series (M48, M54, M60, M72)
- Нумар дэталі вытворцы: HNGOC1501-234 (Internal reference)
- Power Source (Equipment): Hand-powered (Note: This specification refers to the general category of equipment this belt might be used with, not the belt itself.)
8. Інфармацыя аб гарантыі
No specific warranty information is provided for this replacement part. Please refer to the retailer's return policy or contact the seller directly for any inquiries regarding product defects or returns.
9. Падтрымка кліентаў
For further assistance or questions regarding the Generic Replacement Belt RB-530 01007015P, please contact your point of purchase or the seller. When contacting support, please have your purchase details and the product model number ready.
For equipment-specific issues, always consult the original manufacturer's manual or contact their authorized service center.
