Paddsun Speed Sentinel Radar Detector User Manual

Уводзіны

The Paddsun Speed Sentinel Radar Detector (Model T0198(AB)-YKY) is designed to provide drivers with advance warning of speed monitoring devices. This device offers 360-degree detection capabilities, voice alerts, and an LED display to enhance driving awareness across various road conditions. It supports full frequency reception for X, K, and Ka bands, aiming to provide timely notifications.

Змест пакета

Перад тым, як працягнуць наладу, пераканайцеся, што ў камплекце ёсць усе пералічаныя ніжэй элементы:

• 1 x Paddsun Speed Sentinel Radar Detector
• 1 x Car Charger (Power Cord)
• 1 x Anti-slip Pad
• 1 х Кіраўніцтва карыстальніка

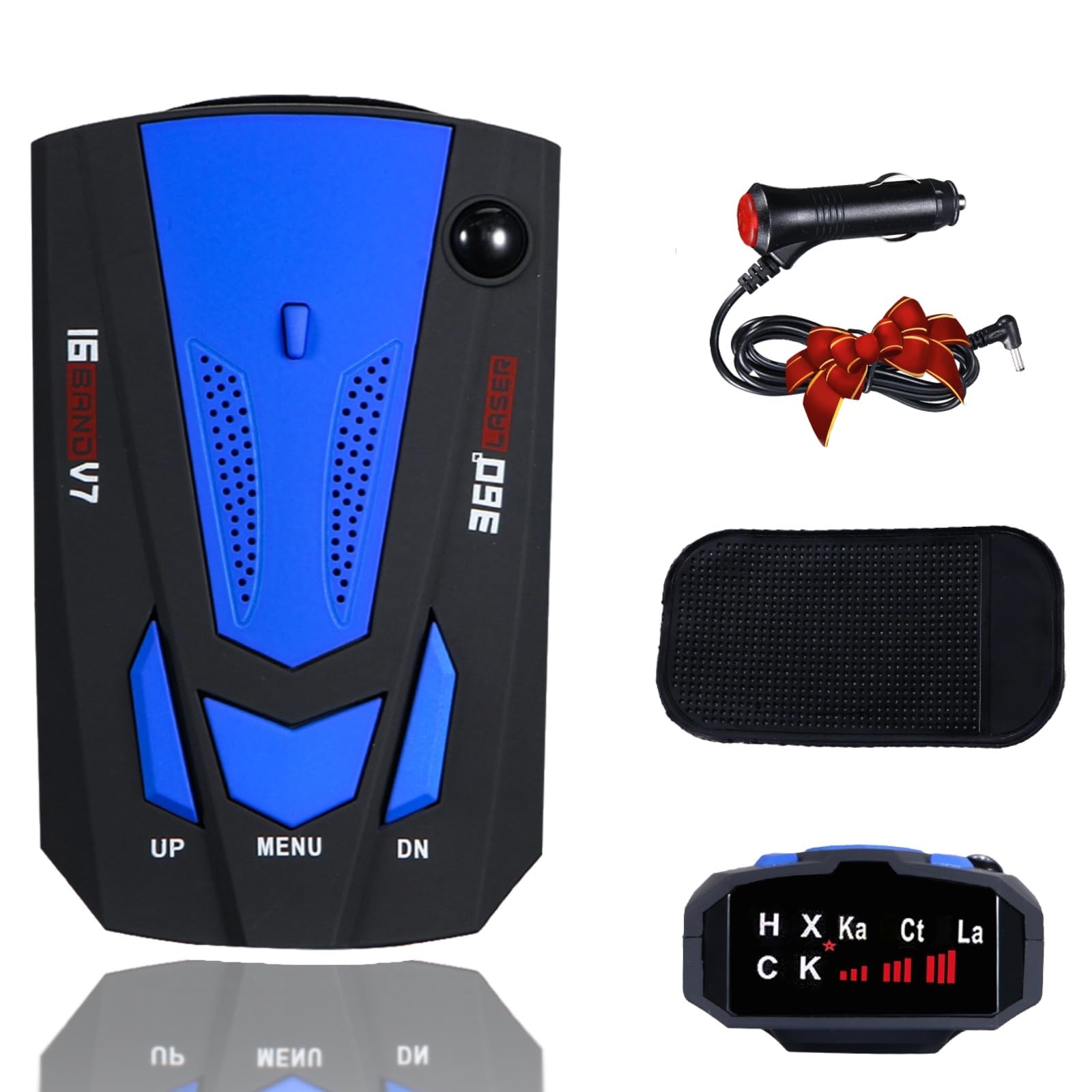

Image: Contents of the Paddsun Speed Sentinel Radar Detector package.

Настройка

Follow these steps to set up your radar detector:

1. Размяшчэнне: Choose a suitable location on your vehicle's dashboard that does not obstruct your view of the road. The anti-slip pad can be used to secure the device. Ensure the detector has a clear line of sight to the front and rear for optimal detection.
2. Падключэнне сілкавання: Insert the car charger into your vehicle's 12V power outlet (cigarette lighter socket). Connect the other end of the power cord to the Mini USB or DC charging port on the radar detector. The device will power on automatically.

Выява: Розныя views of the radar detector, showing its design and ports.

Інструкцыя па эксплуатацыі

The radar detector is designed for simple operation with three primary buttons:

• Кнопка UP: Press to increase the volume of alerts and voice prompts.
• Кнопка МЕНЮ: Press to adjust screen brightness.
• Кнопка DN: Press to decrease the volume of alerts and voice prompts. A long press (over 5 seconds) on the DN button will switch between City and Highway modes, and also change the device language between English and Russian.

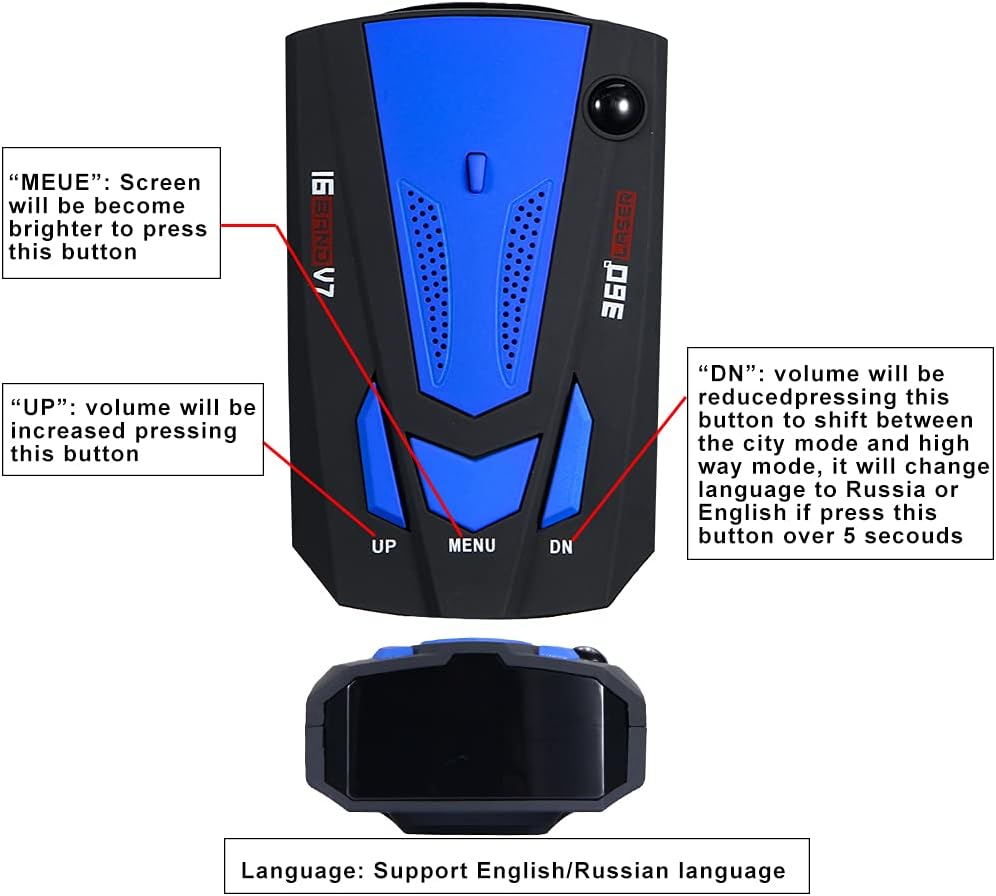

Image: Close-up of the radar detector's control buttons and their functions.

Рэжымы працы

• Рэжым шашы: Provides maximum detection range and sensitivity, suitable for open road driving.
• Гарадскі рэжым: Reduces sensitivity to minimize false alerts from common urban sources (e.g., automatic door openers, blind spot monitors), ideal for city driving.

Абвесткі і дысплей

When a speed monitoring device is detected, the unit will provide a clear voice prompt and display the detected band (X, K, Ka, Ct, La) on its LED screen. The display will also show signal strength indicators. The device is designed to provide advance warning, allowing sufficient time to adjust driving speed.

Тэхнічнае абслугоўванне

To ensure the longevity and optimal performance of your radar detector, follow these maintenance guidelines:

• Уборка: Use a soft, dry cloth to clean the exterior of the device. Avoid using abrasive cleaners or solvents, which can damage the casinг або экран.
• захоўванне: Store the device in a cool, dry place when not in use. Avoid prolonged exposure to direct sunlight or extreme temperatures, as this can affect internal components.
• Апрацоўка: Асцярожна звяртайцеся з прыладай. Пазбягайце падзення або моцных удараў.
• Абслугоўванне: The device contains no user-serviceable parts. Do not attempt to open or repair the unit yourself. Opening the device by non-professionals may void the warranty and cause damage.

Ліквідацыю непаладак

If you encounter issues with your radar detector, please refer to the following common problems and solutions:

• Прылада не ўключаецца:
  • Ensure the car charger is securely plugged into both the vehicle's 12V power outlet and the detector's power port.
  • Check the vehicle's 12V power outlet for power by testing it with another device.
• Абвестак не атрымана:
  • Verify that the device is properly positioned with a clear line of sight. Obstructions can block radar signals.
  • Пераканайцеся, што гучнасць не ўсталявана на мінімум або выключана.
  • Confirm the device is in the appropriate operating mode (Highway for maximum sensitivity).
• Frequent false alerts:
  • Switch the device to City mode to reduce sensitivity to non-police radar sources.
  • False alerts can be caused by automatic door openers, blind spot monitoring systems in other vehicles, or traffic flow sensors.
• Language is incorrect:
  • Націсніце і ўтрымлівайце DN button for over 5 seconds to cycle through available languages (English/Russian).

Тэхнічныя характарыстыкі

Інфармацыя аб гарантыі

This Paddsun Speed Sentinel Radar Detector (Model T0198(AB)-YKY) comes with a 30-ДНЯ warranty from the date of purchase. This warranty covers manufacturing defects under normal use. Please retain your proof of purchase for any warranty claims. The warranty does not cover damage caused by misuse, accidents, unauthorized modifications, or improper installation.

Падтрымка

For further assistance, technical support, or warranty inquiries, please contact the seller or manufacturer directly through the platform where the product was purchased. Please have your model number (T0198(AB)-YKY) and proof of purchase ready when contacting support.
