Кіраўніцтва па эксплуатацыі

1. Уводзіны

This manual provides essential information for the installation, operation, and maintenance of your new Blower Motor Housing Cover with Filter. This product is designed as a direct replacement part, ensuring compatibility and reliable performance for specified BMW models.

Please read this manual thoroughly before installation to ensure correct procedure and safe handling.

Image 1.1: Blower Motor Housing Cover with Filter.

2. Інфармацыя па бяспецы

Always prioritize safety when working on your vehicle. Improper installation or handling can lead to injury or damage to the vehicle.

• Ensure the vehicle is turned off and the battery is disconnected before beginning any work.
• Карыстайцеся адпаведнымі сродкамі індывідуальнай абароны, такімі як пальчаткі і ахоўныя акуляры.
• Калі вы не ўпэўненыя ў якім-небудзь кроку, звярніцеся да кваліфікаванага аўтамабільнага тэхніка.
• Трымайце дробныя дэталі далей ад дзяцей.

3. Змесціва ўпакоўкі

Пасля адкрыцця ўпакоўкі пераканайцеся, што ўсе кампаненты ёсць у наяўнасці і не пашкоджаны.

• 1 x Blower Motor Housing Cover with Integrated Filter (OEM 64119216222)

Image 3.1: Blower Motor Housing Cover with integrated filter.

4. Сумяшчальнасць

This Blower Motor Housing Cover with Filter (OEM 64119216222) is compatible with various BMW F07, F10, F06, F01, F02 Series models manufactured between 2009 and 2018. Please verify your vehicle's OEM part number before installation.

Compatible BMW Models (2009-2018):

• BMW 528i, 528i xDrive
• BMW 535i, 535i xDrive, 535i GT, 535i GT xDrive
• BMW 535d, 535d xDrive
• BMW 550i, 550i xDrive, 550i GT, 550i GT xDrive
• BMW ActiveHybrid 5
• BMW 640i, 640i xDrive, 640i Gran Coupe, 640i xDrive Gran Coupe
• BMW 650i, 650i xDrive, 650i Gran Coupe, 650i xDrive Gran Coupe
• BMW M6, M6 Gran Coupe
• BMW 740i, 740Li, 740Li xDrive, 740Ld xDrive
• BMW 750i, 750Li, 750i xDrive, 750Li xDrive
• BMW 760Li
• BMW ActiveHybrid 7
• BMW Alpina B6 xDrive Gran Coupe
• BMW Alpina B7, B7L, B7 xDrive, B7L xDrive
• BMW M5

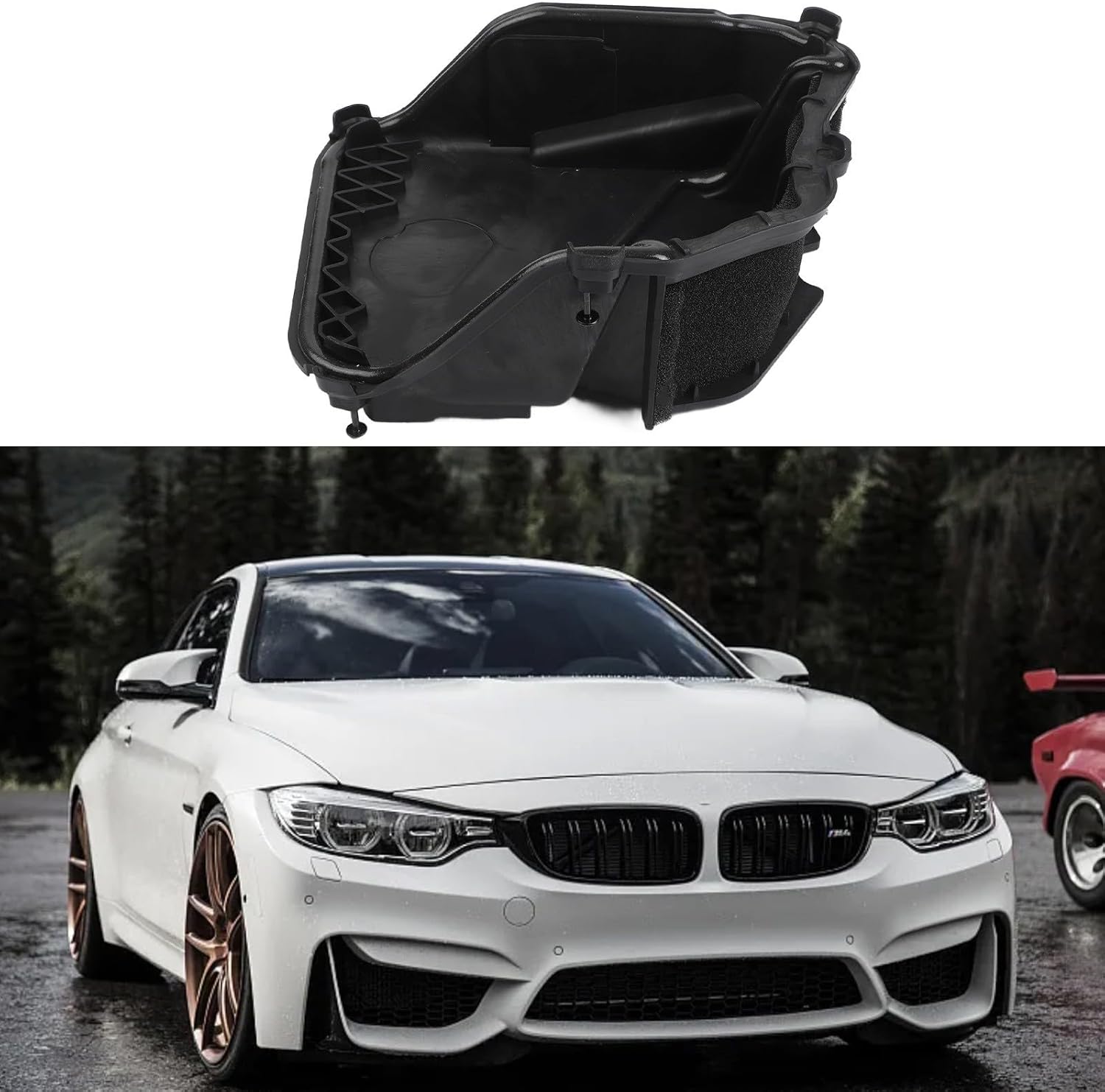

Image 4.1: Product shown with a compatible BMW vehicle.

5. Настройка і ўстаноўка

This blower motor housing cover is designed for easy installation, matching factory specifications. While direct replacement is intended, professional installation is recommended if you are unfamiliar with automotive repair procedures.

Агульныя этапы ўстаноўкі:

1. Падрыхтуйце аўтамабіль: Park the vehicle on a level surface, engage the parking brake, and turn off the engine. Disconnect the negative terminal of the battery to prevent electrical hazards.
2. Locate the Blower Motor Housing: The blower motor and its housing are typically located under the dashboard on the passenger side of the vehicle. You may need to remove trim panels or the glove compartment for access.
3. Адлучэнне электрычных злучэнняў: Carefully disconnect any electrical connectors attached to the blower motor or its housing.
4. Зняць крапежныя элементы: Identify and remove all screws, clips, or other fasteners securing the old blower motor housing cover.
5. Remove Old Housing Cover: Gently pull out the old housing cover. Note its orientation for proper installation of the new part.
6. Install New Housing Cover: Position the new Blower Motor Housing Cover with Filter (OEM 64119216222) into place, ensuring it aligns correctly with the blower motor and surrounding components.
7. Надзейныя зашпількі: Reinstall all screws, clips, and fasteners removed earlier. Ensure they are tightened securely but do not overtighten.
8. Reconnect Electrical Connections: Reconnect all electrical connectors.
9. Збярыце аздабленне: Reinstall any trim panels or the glove compartment that were removed for access.
10. Паўторнае падключэнне батарэі: Зноў падключыце мінусавую клему акумулятара.
11. Тэст-сістэма: Start the vehicle and test the HVAC system to ensure the blower motor operates correctly and airflow is restored.

Image 5.1: Product details showing various angles.

Малюнак 5.2: У разабраным выглядзе view for installation reference.

6. Прынцыпы працы

The Blower Motor Housing Cover with Filter serves two primary functions:

• Абарона жылля: It encases the blower motor, protecting it from physical damage and environmental elements.
• Фільтрацыя паветра: The integrated filter prevents dust, debris, and other particulates from entering the HVAC system and the vehicle's cabin, contributing to cleaner air quality and protecting the blower motor from contamination.

Once installed, the cover operates passively as part of the vehicle's HVAC system, ensuring proper airflow and filtration whenever the blower motor is active.

7. Тэхнічнае абслугоўванне

Regular maintenance of the integrated filter is crucial for optimal performance of your vehicle's HVAC system and cabin air quality.

• Праверка фільтра: Periodically inspect the integrated filter for accumulation of dirt, leaves, and other debris. The frequency of inspection may vary based on driving conditions and environment.
• Ачыстка/замена фільтра: If the filter appears heavily soiled or airflow through the HVAC system is noticeably reduced, the filter should be cleaned or replaced. Refer to your vehicle's service manual for specific recommendations on cabin air filter maintenance intervals.
• Жыллёвая інспекцыя: During filter maintenance, inspect the housing cover for any cracks or damage that could compromise its protective function.

Малюнак 7.1: View highlighting the integrated filter for maintenance.

8. Выпраўленне непаладак

If you experience issues after installing the blower motor housing cover, consider the following common troubleshooting steps:

• Паменшаны паток паветра:
  • Check if the new housing cover is seated correctly and all fasteners are secure.
  • Inspect the integrated filter for blockages or excessive dirt.
  • Ensure no debris has fallen into the blower motor assembly during installation.
• Незвычайныя шумы:
  • Verify that the housing cover is not loose and is not vibrating against other components.
  • Ensure no foreign objects are trapped within the blower motor or housing.
  • Confirm all electrical connectors are fully seated.
• HVAC System Not Functioning:
  • Check all electrical connections, including the battery terminal.
  • Verify that the blower motor itself is functioning (this housing cover is a passive component).
  • Consult your vehicle's diagnostic system or a professional technician.

If problems persist, it is advisable to seek assistance from a certified automotive technician.

9. Тэхнічныя характарыстыкі

10. Інфармацыя аб гарантыі

This product is manufactured to high-quality standards. For specific warranty details, please refer to the retailer or manufacturer's official website where the product was purchased. Keep your proof of purchase for any warranty claims.

11. Падтрымка кліентаў

If you have any questions regarding the installation, operation, or maintenance of this product, please contact the retailer or manufacturer's customer support. Provide your product model number (9U0KS0IWR5KYXQ69O29H2E13) and OEM part number (64119216222) for faster assistance.

For general automotive repair advice, consult a certified mechanic or refer to your vehicle's official service manual.
