Уводзіны
This manual provides detailed instructions for the installation, operation, maintenance, and troubleshooting of your KOHLER K-1723-96 Chesapeake Wall-Mount Bathroom Sink. Please read all instructions carefully before beginning installation or use to ensure proper function and longevity of the product. Retain this manual for future reference.
Прадукт скончаныview
The KOHLER K-1723-96 Chesapeake is a wall-mount bathroom sink designed for durability and functionality. Constructed from vitreous china, this sink is built to withstand high-volume usage. Its rectangular shape and biscuit finish offer a clean aesthetic suitable for various bathroom designs.
- матэрыял: Шклопадобны Кітай
- Памеры: 20 inches (L) x 18-1/4 inches (W)
- Тып ўстаноўкі: насценны
- Адтуліны для кранаў: 3 (8-inch centers)
- Перапаўненне: так

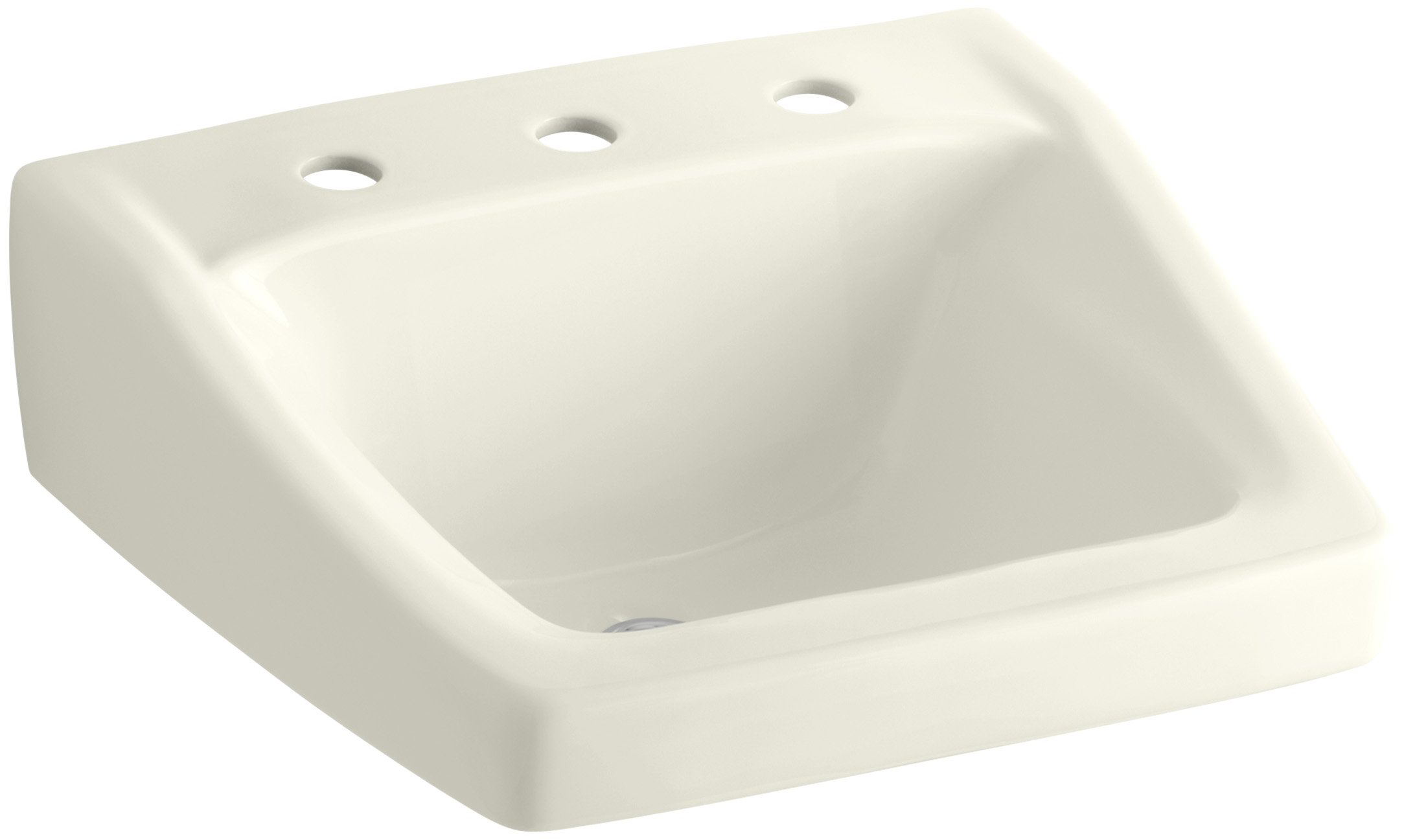

Image: The KOHLER K-1723-96 Chesapeake Wall-Mount Bathroom Sink, showcasing its rectangular basin and biscuit color. This image illustrates the overall design and wall-mount configuration of the sink.
Настройка і ўстаноўка
This section outlines the general steps for installing your wall-mount bathroom sink. Professional installation is recommended. Ensure all local plumbing codes are followed.
Неабходныя інструменты і матэрыялы (не ўключаны):
- Mounting hardware appropriate for your wall type
- Faucet and drain assembly
- Sealant (e.g., silicone caulk)
- Plumbing tools (wrenches, pipe cutters, etc.)
- Level, measuring tape, pencil
Этапы ўстаноўкі:
- Падрыхтуйце сцяну: Determine the desired height for the sink. Mark the mounting locations on the wall, ensuring they are level and align with the sink's mounting points. Reinforce the wall if necessary to support the sink's weight (approximately 35 lbs, plus water and usage).
- Усталюйце мантажнае абсталяванне: Securely attach the appropriate wall-mount brackets or bolts to the marked locations on the wall. Ensure they are robust enough to hold the sink.
- Install Faucet and Drain: Before mounting the sink to the wall, install the faucet and drain assembly into the sink's pre-drilled holes according to their respective manufacturer's instructions. Apply sealant as required to prevent leaks.
- Mount the Sink: Carefully lift the sink and align its mounting points with the installed wall hardware. Secure the sink firmly to the wall, ensuring it is level and stable.
- Падключыць сантэхніку: Connect the hot and cold water supply lines to the faucet. Connect the drain assembly to the P-trap and the main drain line. Ensure all connections are tight and leak-free.
- Тэст на ўцечкі: Turn on the water supply and check all connections for any leaks. Run water through the faucet and into the drain to verify proper drainage and seal.
- Нанесці герметык: Apply a bead of silicone sealant along the back edge of the sink where it meets the wall to prevent water infiltration.
Інструкцыя па эксплуатацыі
The KOHLER K-1723-96 Chesapeake sink is designed for standard bathroom use. Operate the faucet according to its manufacturer's instructions to control water flow and temperature. The sink's overflow feature helps prevent accidental spills if the basin is overfilled, but it is not a primary drainage system.
Догляд і абслугоўванне
Proper care will help maintain the appearance and performance of your vitreous china sink.
Уборка:
- Штодзённая ўборка: Выкарыстоўвайце мяккі, damp cloth and a mild, non-abrasive cleaner. Wipe the surface clean and rinse thoroughly with water.
- Устойлівыя плямы: For more persistent stains, a mild abrasive cleaner specifically designed for vitreous china can be used sparingly. Always test in an inconspicuous area first.
- Пазбягайце: Do not use abrasive pads, steel wool, harsh chemicals, strong acids, or alkaline cleaners, as these can damage the finish.
Агульны догляд:
- Avoid dropping heavy or sharp objects into the sink, which could chip or crack the vitreous china.
- Ensure proper ventilation in the bathroom to prevent mold and mildew buildup.
- Regularly check plumbing connections for any signs of leaks and tighten if necessary.
Ліквідацыю непаладак
У гэтым раздзеле разглядаюцца распаўсюджаныя праблемы, з якімі вы можаце сутыкнуцца пры выкарыстанні ракавіны.
| праблема | Магчымая прычына | Рашэнне |
|---|---|---|
| Павольны дрэнаж | Partial clog in the drain or P-trap. | Remove and clean the drain stopper and P-trap. Avoid pouring grease or large debris down the drain. |
| Leaking Around Faucet Base | Loose faucet connections or worn seals. | Tighten faucet mounting nuts. Inspect and replace O-rings or gaskets if damaged. |
| Leaking from Drain Connections | Loose drain nuts or improper sealant application. | Tighten drain nuts. If leaks persist, disassemble, reapply plumber's putty or sealant, and reassemble. |
| Sink Appears Unstable | Loose wall mounting hardware. | Ensure all wall mounting brackets and bolts are securely fastened to the wall and the sink. Consult a professional if unsure. |
If you encounter issues not listed here or if solutions do not resolve the problem, contact a qualified plumber or Kohler customer support.
Тэхнічныя характарыстыкі
| Асаблівасць | Дэталь |
|---|---|
| Марка | Колер |
| Нумар мадэлі | К-1723-96 |
| Колер | Бісквіт |
| Матэрыял | Ceramic (Vitreous China) |
| Тып ўстаноўкі | Насценнае мацаванне |
| Агульная даўжыня (з боку ў бок) | 20 цаляў |
| Агульная шырыня (ад пярэдняй да задняй часткі) | 18.25 цаляў |
| Overall Depth (Top to Bottom) | 10.375 цаляў |
| Basin Length (Side to Side) | 14 цаляў |
| Basin Width (Front to Back) | 12 цаляў |
| Basin Depth (Top to Bottom) | 4.875 цаляў |
| Вага прадмета | 35 фунта |
| Number of Faucet Holes | 3 |
| Пераліў | так |
| Форма | Прамавугольны |
| UPC | 040688799179 |
Гарантыя і падтрымка
Інфармацыя аб гарантыі:
Гэты прадукт KOHLER ахоплены Гадавая абмежаваная гарантыя. This warranty covers defects in material and workmanship under normal use and service. For specific terms and conditions, please refer to the official Kohler warranty documentation or contact Kohler customer service.
Падтрымка кліентаў:
For technical assistance, replacement parts, or warranty claims, please contact Kohler customer support. Visit the official Kohler webсайт для кантактнай інфармацыі і дадатковых рэсурсаў.
Афіцыйны Колер Webсайт: www.kohler.com
