1. Уводзіны і большview
The Sony NEX-5N is a compact interchangeable lens camera designed to deliver DSLR-quality imaging in a smaller, lighter form factor. It features a 16.1 MP Exmor APS HD CMOS image sensor, capable of capturing high-resolution still images and Full HD 1080/60p or 24p movies. The camera supports continuous shooting up to 10 frames per second and includes a 3.0-inch tiltable Live View touchscreen LCD for flexible viewвання і кантролю.
Асноўныя функцыі ўключаюць у сябе:
- DSLR quality in a compact body.
- Up to 10 fps continuous shooting for capturing fast action.
- 16.1 MP Exmor APS HD CMOS image sensor for detailed images.
- Full HD movie shooting at 60p/24p for cinematic video.
- Photo Creativity Touch for intuitive image adjustments.
Figure 1: Sony NEX-5N camera with the included 18-55mm lens attached.
2. Настройка
2.1 Распакоўка камеры
Carefully remove all components from the packaging. Ensure all items listed in the product's packing list are present. Retain the packaging for future storage or transport.
Малюнак 2: Спераду view of the Sony NEX-5N retail packaging.
Малюнак 3: Верх view of the Sony NEX-5N retail packaging, showing lens and camera illustrations.

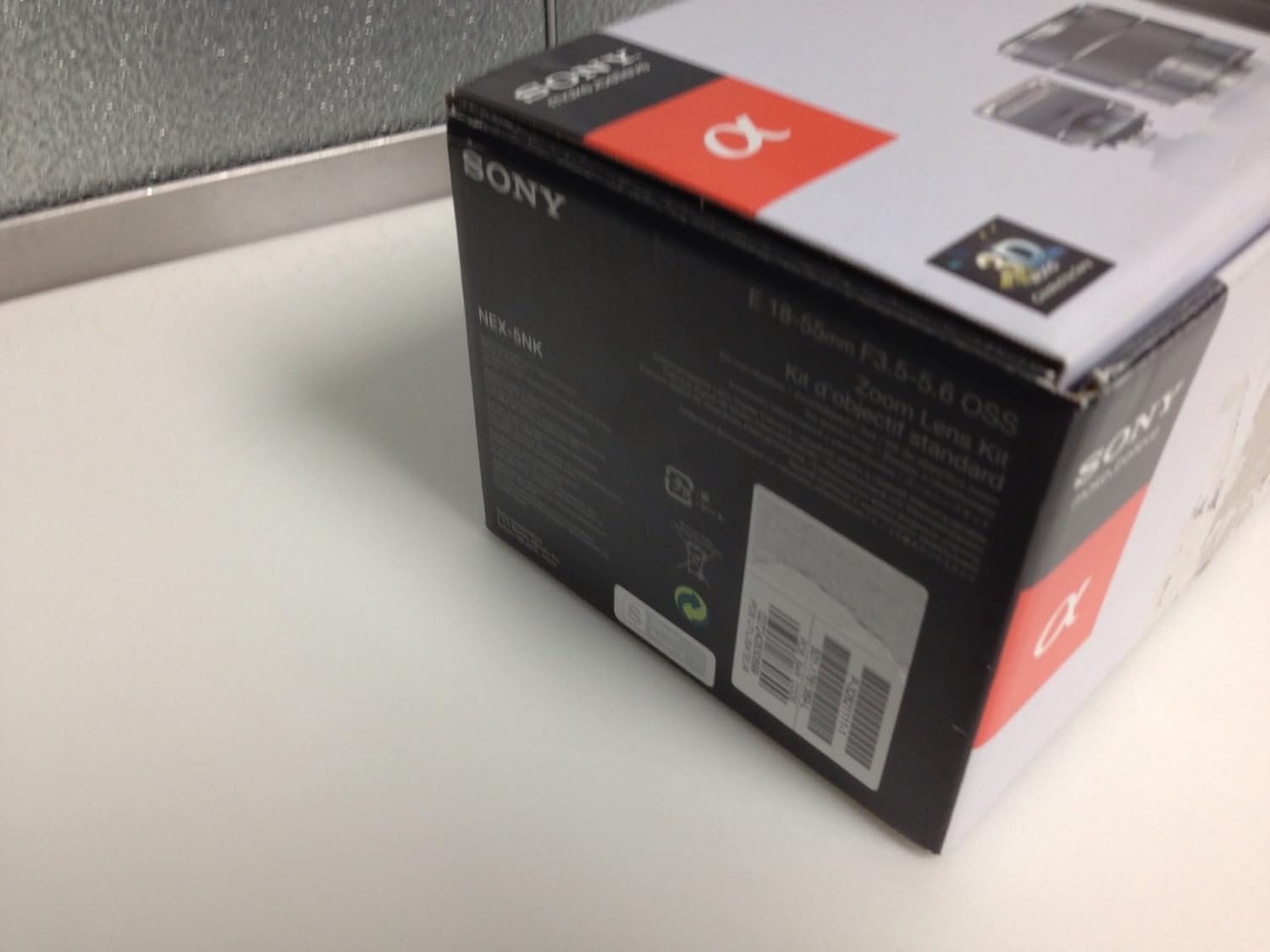

Малюнак 4: бок view of the Sony NEX-5N retail packaging, including product information and barcode.
Figure 5: Contents of the Sony NEX-5N box, showing the camera and accessories securely packed.
2.2 Зарадка акумулятара
Before initial use, fully charge the supplied battery. Insert the battery into the charger and connect the charger to a power outlet. The charging indicator will illuminate during charging and turn off when complete.
2.3 Усталяванне аб'ектыва
- Зніміце вечка корпуса з камеры і заднюю вечка аб'ектыва з аб'ектыва.
- Сумясціце белую пазнаку на аб'ектыве з белай пазнакай на корпусе камеры.
- Усталюйце аб'ектыў, павярнуўшы яго па гадзіннікавай стрэлцы, пакуль ён не зафіксуецца на месцы.
Video 1: This video demonstrates the process of attaching and detaching an interchangeable lens on the Sony NEX-5N camera, highlighting the alignment marks and secure locking mechanism.
3. Кіраванне камерай
3.1 Асновы фатаграфіі
- Уключэнне: Slide the ON/OFF switch to ON.
- Выберыце рэжым здымкі: Use the control dial or touchscreen to select your desired shooting mode (e.g., Intelligent Auto, Program Auto, Aperture Priority, Shutter Priority, Manual).
- Фокус: Point the camera at your subject. The camera will automatically focus. For manual focus, rotate the focusing ring on the lens.
- Захапіць малюнак: Press the shutter button halfway to focus, then press fully to take a picture.
3.2 Запіс відэа
To record a movie, press the dedicated MOVIE button. Press it again to stop recording. The camera records in Full HD (1920x1080) resolution.
Відэа 2: Гэта відэа дае агульны аглядview of the Sony NEX-5N's features and capabilities, including its compact design, interchangeable lenses, and high-quality image and video capture.
3.3 Выкарыстанне сэнсарнага экрана
The 3.0-inch tiltable LCD is a touchscreen. You can tap to select menu options, adjust settings, and even touch to focus on a specific area of your composition.
4. Тэхнічнае абслугоўванне
4.1 Чыстка камеры і аб'ектыва
- Выкарыстоўвайце мяккую, сухую тканіну для чысткі корпуса камеры.
- For the lens, use a lens brush to remove dust, then a lens cleaning solution and a microfiber cloth for smudges. Avoid touching the lens surface directly.
- Do not use organic solvents such as alcohol or thinner to clean the camera.
4.2 Захоўванне
When not in use for extended periods, remove the battery and store the camera in a cool, dry place away from direct sunlight and moisture. Use lens caps and a body cap to protect the sensor and lens elements.
5. Выпраўленне непаладак
If you encounter issues with your Sony NEX-5N, please refer to the following common troubleshooting tips:
- Камера не ўключаецца: Пераканайцеся, што акумулятар цалкам зараджаны і правільна ўстаўлены.
- Выявы размытыя: Check that the lens is clean and properly attached. Verify the focus mode and ensure sufficient lighting.
- Памылка карты памяці: Ensure the memory card is inserted correctly and is not damaged. Try formatting the card (this will erase all data).
- Без відэазапісу: Check available memory card space. Ensure the MOVIE button is pressed firmly.
For more detailed troubleshooting, consult the comprehensive user manual available on the Sony support webсайт.
6. Тэхнічныя характарыстыкі
| Асаблівасць | Дэталь |
|---|---|
| Назва мадэлі | Sony NEX-5N |
| Дазвол фотадатчыка | 16.1 МП |
| Памер фотадатчыка | APS-C |
| Тып аб'ектыва | E-mount 18-55mm zoom lens |
| Дазвол відэа | FHD 1080p |
| Памер экрана | 3 цалі |
| Тып дысплея | LCD (Tilting, Touchscreen) |
| Бесперапынная здымка | 10 кадраў у секунду |
| Стабілізацыя выявы | Аптычны |
| Падтрымліваецца File фармат | JPEG, RAW (фота), MP4 (відэа) |
| Сумяшчальныя мацавання | Соні Э |
| Вага прадмета | 16 унцыі |
7. Гарантыя і падтрымка
This product is covered by a manufacturer's warranty. For detailed warranty information, including terms, conditions, and registration, please refer to the warranty card included in your product packaging or visit the official Sony support website. For technical assistance, product registration, or service inquiries, please contact Sony customer support.
Інтэрнэт-падтрымка: www.sony.com/electronics/support
