1. Уводзіны
Thank you for choosing the Casio MTP-1343L-1B2 Analog Watch. This manual provides important information regarding the proper setup, operation, and maintenance of your watch. Please read this manual thoroughly to ensure correct use and to prolong the life of your timepiece.

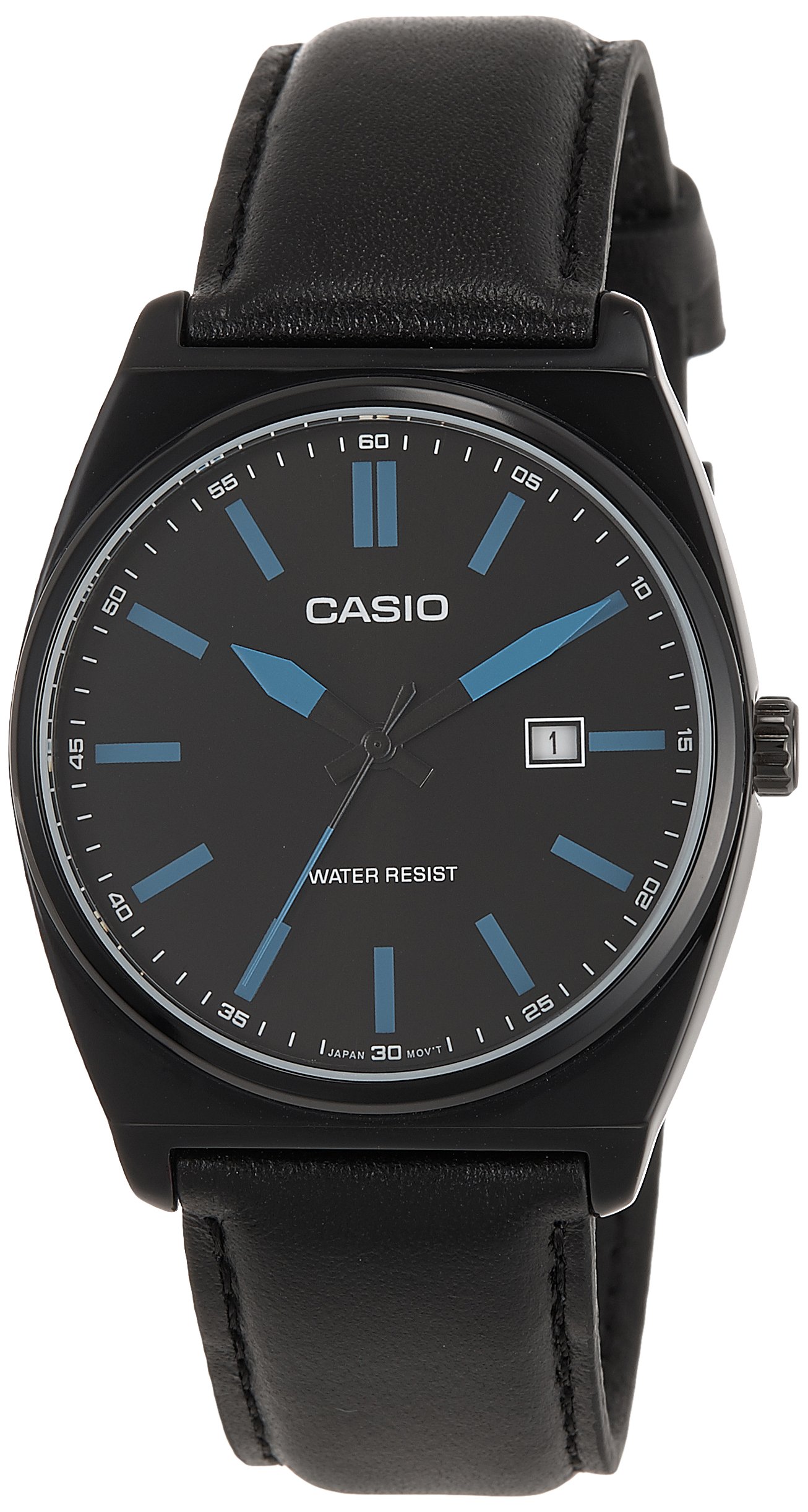

Малюнак 1: Спераду view of the Casio MTP-1343L-1B2 Analog Watch.
2. Асаблівасці
- Precise Japan Quartz Movement: Ensures accurate timekeeping with an accuracy of ±20 seconds per month.
- Трывалая канструкцыя: Features a stainless steel case and a genuine leather strap for comfort and longevity.
- Мінеральны крышталь: Provides enhanced scratch resistance for the watch face.
- Аналагавы дысплей: Classic three-hand (hour, minute, second) analog time display.
- Дысплей даты: Зручнае акенца даты на цыферблаце.
- Воданепранікальнасць: Rated for 30 meters (3 ATM), suitable for daily use and splashes.
- Доўгі тэрмін службы батарэі: Approximately 3 years on a SR626SW battery.
3. Настройка
3.1 Настройка часу
- Выцягніце заводную галоўку да другога пстрычкі. Секундная стрэлка спыніцца.
- Rotate the crown to advance or reverse the hands to set the correct time. Ensure the AM/PM is correctly set if your watch has a 24-hour indicator (though this model is a simple analog, setting past 12 will advance the date).
- Вярніце заводную галоўку ў звычайнае становішча. Секундная стрэлка аднавіць рух.
Малюнак 2: бок view гадзінніка, з вылучэннем заводной галоўкі, якая выкарыстоўваецца для налады часу і даты.
3.2 Усталяванне даты
- Выцягніце каронку да першага пстрычкі.
- Rotate the crown to set the desired date.
- Адсуньце каронку назад у звычайнае становішча.
Note: Avoid setting the date between 9:00 PM and 1:00 AM, as this may interfere with the automatic date change mechanism. If you need to set the date during this period, first set the time to outside this range, adjust the date, then reset the time.
3.3 Нашэнне гадзінніка
Adjust the leather strap to fit comfortably around your wrist. The watch should be snug enough not to slide freely but not so tight as to restrict circulation.
Figure 3: The Casio MTP-1343L-1B2 watch worn on a wrist, demonstrating proper fit.
4. Кіраванне гадзіннікам
Your Casio MTP-1343L-1B2 watch is designed for straightforward operation. Once the time and date are set, the watch will continuously display the current time and date.
- Дысплей часу: The hour, minute, and second hands move continuously to indicate the current time.
- Дысплей даты: The date window automatically advances once every 24 hours.
5. Тэхнічнае абслугоўванне
5.1 Воданепранікальнасць
This watch is water resistant to 30 meters (3 ATM). This means it is suitable for daily use, splashes, and brief immersion in water. It is не suitable for swimming, showering, or diving. Do not operate the crown while the watch is wet or submerged.
Малюнак 4: Задняя частка view of the watch case, displaying water resistance markings.
5.2 Замена батарэі
The watch uses one SR626SW battery, which has an approximate life of 3 years. When the second hand begins to move at two-second intervals, it indicates that the battery is low and needs replacement. Battery replacement should be performed by a qualified watch technician to ensure proper sealing and water resistance.
5.3 Чыстка і догляд
- Wipe the watch case and crystal with a soft, dry cloth regularly to remove dirt and moisture.
- For the leather strap, avoid prolonged exposure to direct sunlight, extreme heat, or moisture, as this can cause discoloration or damage. Clean with a soft, slightly damp cloth if necessary, and allow to air dry completely.
- Avoid exposing the watch to strong magnetic fields, as this can affect timekeeping accuracy.
6. Выпраўленне непаладак
| праблема | Магчымая прычына | Рашэнне |
|---|---|---|
| Watch stops or runs erratically | Low battery; Crown pulled out; Exposure to strong magnetic field | Replace battery; Push crown fully in; Move watch away from magnetic sources |
| Дата не змяняецца апоўначы | Time set incorrectly (e.g., AM/PM reversed) | Adjust time by 12 hours; Ensure date is not set between 9 PM and 1 AM |
| Condensation inside watch | Water ingress due to damaged seal or crown not fully pushed in | Immediately take to a qualified technician for inspection and repair |
7. Тэхнічныя характарыстыкі
- Нумар мадэлі: MTP-1343L-1B2
- Рух: Japan Quartz
- Дакладнасць: ±20 секунд у месяц
- Матэрыял корпуса: Stainless Steel (back), Aluminium (bezel/main case)
- Матэрыял раменьчыка: Натуральная скура
- Крышталь: Мінеральныя
- Воданепранікальнасць: 30 метраў (3 банкаматаў)
- Тып батарэі: SR626SW
- Прыбл. Тэрмін службы батарэі: 3 гады
- Case Dimensions (H x W x D): 49.5 х 40.8 х 10.1 мм
- Агульная вага: 41 г
- Дысплей: Аналагавы (3 стрэлкі: гадзінная, хвілінная, секундная)
- Дысплей даты: так
8. Гарантыя і падтрымка
For information regarding warranty coverage and customer support, please refer to the warranty card included with your purchase or visit the official Casio website for your region. Casio provides support for product inquiries, repairs, and genuine parts.
вытворца: Casio
