Kanto YU2 Desktop Speakers User Manual

Уводзіны

This manual provides comprehensive instructions for the setup, operation, maintenance, and troubleshooting of your Kanto YU2 Desktop Speakers. Please read this manual thoroughly before using your speakers to ensure optimal performance and longevity.

Што ў скрынцы

Your Kanto YU2 speakers come with all necessary accessories for immediate setup.

• Kanto YU2 Powered Desktop Speakers (Pair)
• Шнур харчавання
• Акустычны провад
• USB DAC Cable
• Дапаможны кабель 3.5 мм
• Rubber Feet (8 pieces)
• Кіраўніцтва карыстальніка
• Kanto USA Warranty Information

Image: All items included in the Kanto YU2 speaker package.

Настройка

1. Размяшчэнне дынамікаў

Place the speakers on a flat, stable surface. For optimal sound, position them at ear level and equidistant from your listening position. The included rubber feet can be applied to the bottom of the speakers to reduce vibrations and improve stability.

Image: Kanto YU2 speakers positioned on a desktop for optimal listening.

2. Падключэнне дынамікаў

The Kanto YU2 system consists of one active (left) speaker and one passive (right) speaker. Connect the active speaker to the passive speaker using the provided speaker wire. Ensure that the positive (+) terminal on the active speaker connects to the positive (+) terminal on the passive speaker, and similarly for the negative (-) terminals.

3. Падключэнне сілкавання

Connect the power cord to the active speaker and then to a wall outlet. The LED indicator on the front of the active speaker will illuminate when power is supplied.

Інструкцыя па эксплуатацыі

1. Уваходныя аўдыяпадключэнні

The Kanto YU2 speakers offer multiple input options:

• ЦАП USB: Connect your computer directly to the USB port on the active speaker using the provided USB DAC cable for high-quality digital audio streaming.
• 3.5 мм AUX: Use the 3.5mm auxiliary cable to connect to any device with a headphone jack, such as smartphones, tablets, or other media players.
• Выхад сабвуфера: For enhanced bass, connect an external powered subwoofer to the "Sub Out" port on the active speaker.

Выява: Задняя частка view of the active Kanto YU2 speaker with various input and output ports labeled.

2. Рэгулятар гучнасці

Adjust the master volume using the knob located on the rear of the active speaker. Turn clockwise to increase volume and counter-clockwise to decrease it. Ensure the volume is set to a low level before playing audio to prevent sudden loud sounds.

3. Уключэнне/выключэнне харчавання

The speakers will power on automatically when connected to power and an audio source is detected. To turn off, simply disconnect the power or turn the volume knob to the "OFF" position.

Тэхнічнае абслугоўванне

To maintain the appearance and performance of your Kanto YU2 speakers, follow these guidelines:

• Уборка: Use a soft, dry cloth to wipe the speaker cabinets. Avoid using abrasive cleaners, waxes, or solvents as they may damage the finish.
• Ачыстка пылу: Regularly dust the speaker grilles and drivers with a soft brush or a microfiber cloth.
• Размяшчэнне: Avoid placing speakers in direct sunlight, near heat sources, or in areas with high humidity.
• Апрацоўка: Handle speakers with care. Avoid touching the drivers directly.

Ліквідацыю непаладак

If you encounter issues with your Kanto YU2 speakers, refer to the following common solutions:

• Няма гуку:
  • Ensure the power cord is securely connected and the speakers are powered on.
  • Check all audio cables (USB, AUX, speaker wire) for secure connections.
  • Verify the volume knob on the active speaker is turned up.
  • Confirm the audio source (computer, phone) is playing and its volume is not muted or too low.
  • If using USB, ensure the Kanto YU2 is selected as the audio output device in your computer's sound settings.
• Скажоны гук:
  • Зменшце гучнасць як на дынаміках, так і на крыніцы гуку.
  • Check for damaged audio cables and replace if necessary.
  • Ensure speaker wires are correctly connected (positive to positive, negative to negative).
• Гудзенне або гудзенне:
  • Пераканайцеся, што ўсе кабельныя злучэнні надзейныя.
  • Try plugging the speakers into a different electrical outlet.
  • Перамясціце дынамікі далей ад іншых электронных прылад, якія могуць выклікаць перашкоды.

If these steps do not resolve the issue, please contact Kanto support for further assistance.

Тэхнічныя характарыстыкі

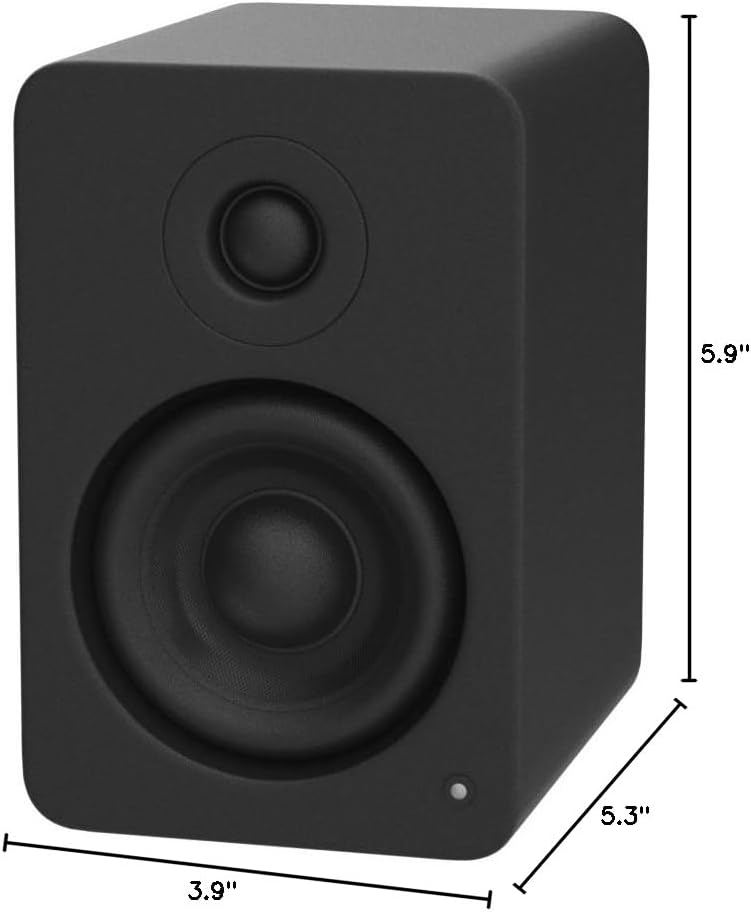

Image: Kanto YU2 speaker dimensions.

Інфармацыя аб гарантыі

The Kanto YU2 Desktop Speakers come with a Гарантыя ад вытворцы 2 годГэтая гарантыя распаўсюджваецца на дэфекты матэрыялаў і вырабу пры нармальным выкарыстанні. Калі ласка, захавайце пацвярджэнне пакупкі для прэтэнзій па гарантыі.

For detailed warranty terms and conditions, please refer to the Kanto USA Warranty information included in your product package or visit the official Kanto webсайт.

Падтрымка

For technical support, product inquiries, or assistance with troubleshooting beyond what is covered in this manual, please contact Kanto customer service.

You can find contact information and additional resources on the official Kanto webсайт: www.kantoaudio.com
