NorStone Stylum 3 Speaker Stands Instruction Manual

1. Уводзіны

The NorStone Stylum 3 speaker stands are designed to provide a stable and acoustically optimized platform for your compact speakers. These sturdy stands feature a robust construction, cable management capabilities, and adjustable components to ensure optimal performance and integration into your audio setup. The larger column can be optionally filled with sand for enhanced resonance dampening, contributing to a clearer sound reproduction.

Асноўныя функцыі ўключаюць у сябе:

• Cable management system for a tidy appearance.
• Adjustable spikes and counter spikes for stability on various floor types.
• Skidproof rubber pads for speaker isolation on the top plate.
• Optional sand filling for improved resonance dampенінг.

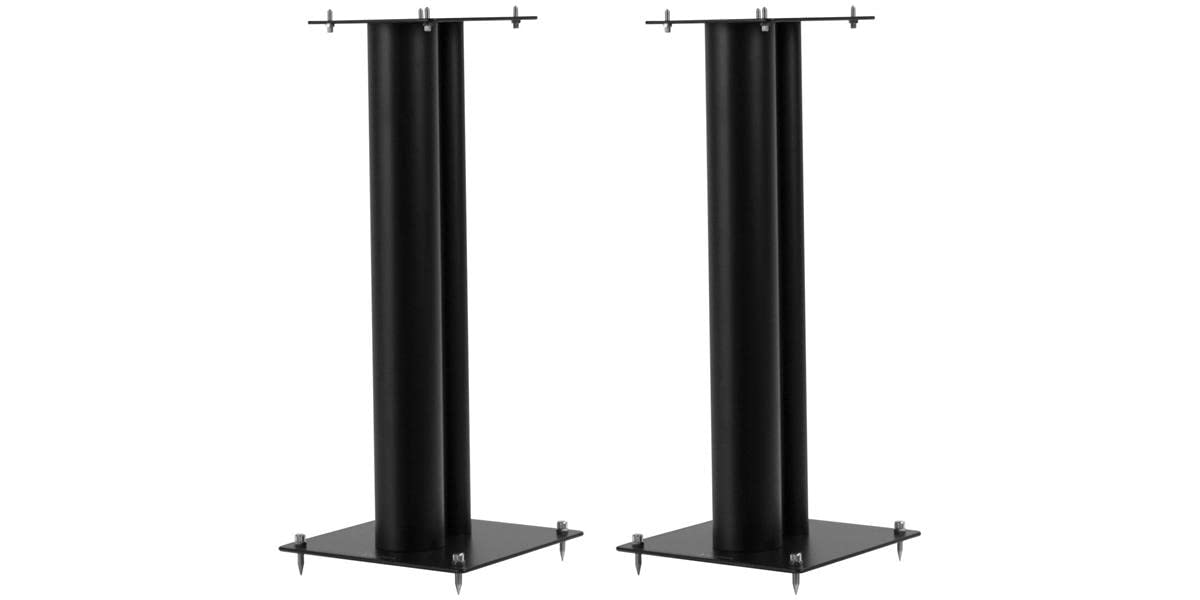

Figure 1: NorStone Stylum 3 Speaker Stands (exampмалюнак).

2. Змесціва ўпакоўкі

Please verify that all components are present in the package before beginning assembly. If any parts are missing or damaged, please contact your retailer or NorStone customer support.

• 2 x Speaker Stand Columns (main and smaller rear column)
• 2 x Base Plates
• 2 x Top Plates
• 8 x Adjustable Ground Spikes
• 8 x Protective Metal Plates for Ground Spikes
• 8 x Adjustable Top Spikes
• 8 x Skidproof Rubber Pads (for top plate)
• Assembly Hardware (screws, washers, nuts)
• Assembly Tool (e.g., Allen key, wrench)

3. Інфармацыя па бяспецы

Read all instructions carefully before assembly and use. Keep this manual for future reference.

• Грузападымальнасць: Do not exceed the maximum load capacity of 50 kg (110 lbs) per stand. Overloading can cause instability and damage.
• Стабільнасць: Ensure the stands are assembled correctly and placed on a level, stable surface. Adjust the ground spikes to eliminate any wobbling.
• Дзеці і хатнія жывёлы: Keep children and pets away from the stands during assembly and ensure the stands are stable to prevent accidental tipping.
• Вострыя краю: Be cautious of sharp edges, especially with the spikes. Use protective plates under ground spikes to prevent floor damage.
• зборка: Follow the assembly instructions precisely. Incorrect assembly can lead to instability and potential injury.

4. Налада і зборка

Follow these steps to assemble your NorStone Stylum 3 speaker stands:

1. Распакуйце кампаненты: Асцярожна выміце ўсе дэталі з упакоўкі і раскладзеце іх на чыстай, мяккай паверхні, каб пазбегнуць драпін. Праверце наяўнасць усіх кампанентаў, пералічаных у раздзеле 2.
2. Прымацаваць асноўную пласціну: Secure the base plate to the bottom of the main stand column using the provided screws and assembly tool. Ensure the screws are tightened firmly but do not overtighten.
3. Прымацаваць верхнюю пласціну: Secure the top plate to the top of the main stand column using the provided screws and assembly tool. Ensure it is oriented correctly for speaker placement.
4. Install Ground Spikes: Screw the adjustable ground spikes into the threaded inserts on the underside of the base plate. Place the protective metal plates under each spike if the stands are on a delicate floor surface (e.g., wood, laminate) to prevent scratches.
5. Install Top Spikes or Rubber Pads: For optimal speaker isolation, you have two options for the top plate:
   • Top Spikes: Screw the adjustable top spikes into the threaded inserts on the top plate. These provide a rigid coupling between the speaker and stand.
   • Skidproof Rubber Pads: Alternatively, place the provided skidproof rubber pads on the top plate. These offer vibration dampening and prevent speakers from sliding.
6. Optional Sand Filling: The larger main column can be filled with dry sand (not included) for increased mass and improved resonance dampening. Remove the top cap (if present) and carefully pour dry sand into the column. Ensure the sand is completely dry to prevent moisture issues. Replace the cap securely after filling.
7. Кабельнае кіраванне: The stand features a cable management system. Route your speaker cables through the designated openings in the columns to keep them tidy and out of sight.

5. Аперацыя

Once assembled, position your NorStone Stylum 3 speaker stands in the desired location, ensuring they are on a stable and level surface.

• Размяшчэнне дынамікаў: Carefully place your speakers onto the top plates. If using top spikes, ensure the speaker's base makes firm contact with all four spikes. If using rubber pads, center the speaker on the pads.
• Leveling and Stability: Adjust the height of the ground spikes by turning them clockwise or counter-clockwise until the stand is perfectly level and stable, with no wobbling. This is crucial for optimal sound performance and safety.
• Пракладка кабеля: Utilize the internal cable management system to route speaker cables from your amplifier to the speakers. This helps maintain a clean aesthetic and prevents cable clutter.

6. Тэхнічнае абслугоўванне

Regular maintenance will help preserve the appearance and functionality of your speaker stands.

• Уборка: Wipe the stands with a soft, slightly damp cloth to remove dust and fingerprints. Avoid using abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish.
• Праверце злучэнні: Перыядычна правярайце ўсе шрубы і злучэнні, каб пераканацца, што яны зацягнуты. Пры неабходнасці падцягвайце, але не перацягвайце.
• Spike Condition: Inspect the spikes for any damage or wear. Ensure the protective plates are still in place if used.

7. Выпраўленне непаладак

Вось рашэнні распаўсюджаных праблем, з якімі вы можаце сутыкнуцца:

• Stand is Unstable or Wobbles:
  • Ensure the stand is on a level surface.
  • Adjust the ground spikes individually until all four make firm contact with the floor and the stand is stable.
  • Праверце, ці ўсе зборачныя шрубы надзейна зацягнуты.
• Difficulty Routing Cables:
  • Ensure the cable diameter is compatible with the internal routing channels.
  • Gently guide the cables through the openings. If necessary, use a thin, flexible wire to help pull the cable through.
• Unwanted Resonance or Vibration:
  • Consider filling the main column with dry sand to increase mass and damp вібрацыі.
  • Ensure speakers are properly isolated on the top plate, either with top spikes or rubber pads.

8. Тэхнічныя характарыстыкі

9. Гарантыя і падтрымка

For warranty information, please refer to the documentation provided with your purchase or contact your retailer. NorStone products are designed for durability and performance.

If you encounter any issues or require technical assistance, please contact NorStone customer support or your authorized dealer. Please have your model number (Stylum 3 / NORSTY) and purchase details ready when contacting support.
