1. Уводзіны
Thank you for choosing the VEVOR 400V Electric Spot Welder. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your spot welding gun. Please read this manual thoroughly before use and retain it for future reference.
2. Інструкцыі па тэхніцы бяспекі
ПАПЯРЭДЖАННЕ: Improper use of this equipment can cause serious injury or death. Always follow these safety guidelines:
- Электрабяспека: This unit operates at 400V. Ensure proper electrical connections and grounding. Do not operate in wet conditions. Always disconnect power before performing maintenance or changing tips.
- Сродкі індывідуальнай абароны (СІЗ): Always wear appropriate welding helmets, gloves, and protective clothing to shield against sparks, heat, and UV radiation.
- Вентыляцыя: Забяспечце дастатковую вентыляцыю ў рабочай зоне для рассейвання зварачных дымаў.
- Небяспека пажару: Трымайце лёгкаўзгаральныя матэрыялы далей ад зоны зваркі. Майце пад рукой вогнетушыцель.
- Гарачыя паверхні: Welding tips and workpieces will become extremely hot. Allow them to cool before handling or wear heat-resistant gloves.
- Дзеці і сведкі: Трымайце дзяцей і старонніх асоб далей ад зоны зваркі.
- агляд: Before each use, inspect the welder for any damage to the cables, housing, or tips. Do not use if damaged.
3. Прадукт скончыўсяview
3.1 Кампаненты
The VEVOR 400V Electric Spot Welder package includes the following components:
- Spot Welding Gun
- Additional Pair of Welding Tips
- Падвесны рэмень
- Hex Keys (for tip replacement)
Image: The complete kit, including the spot welder, two pairs of welding tips, hex keys, and a hanging strap.
3.2 Асноўныя магчымасці
- Durable Welding Tips: Constructed from high-quality steel for optimal welding performance.
- Зменныя наканечнікі: Comes with an additional pair of welding tips for extended use. Tips can be easily replaced by twisting them off and screwing on new ones.
- Distinct Control Panel: Features an intuitive control panel with multiple modes for easy operation.
- Кампактны памер: Designed to be large enough for effective welding operations yet compact for convenient storage.
- Рэмень для падвешвання: Includes a strap for easy carrying and hands-free operation when needed.
Выява: Крупны план view of the durable welding tips, designed for effective metal fusion.
Image: The control panel of the spot welder, showing various settings and mode selections for different welding tasks.
Image: Ergonomic handgrip for comfortable and secure handling during operation.

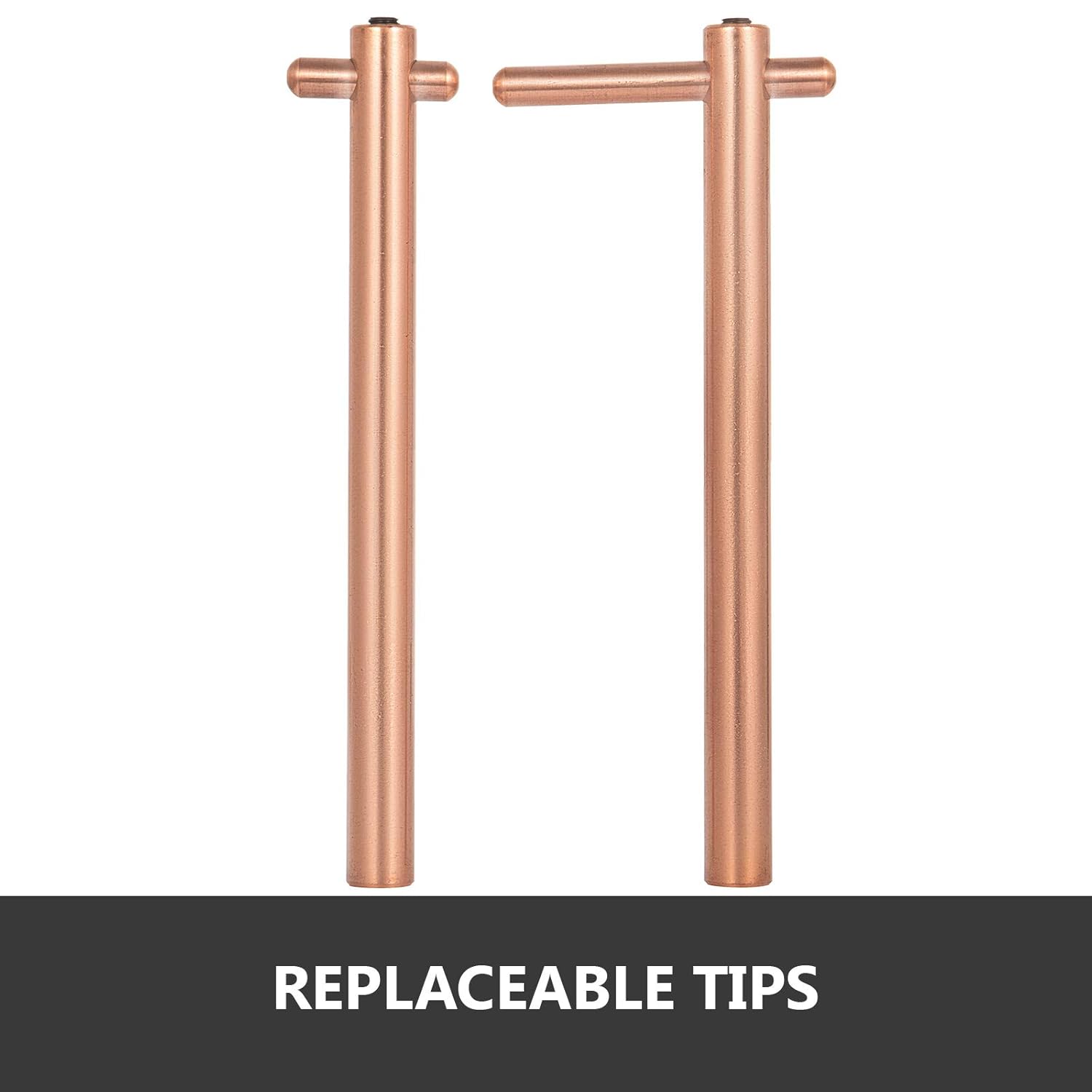

Image: An additional pair of replaceable welding tips, highlighting their ease of installation.
Image: The spot welder showcasing its compact dimensions (17.3" length, 11.6" height, 7.7" width) for portability and storage.

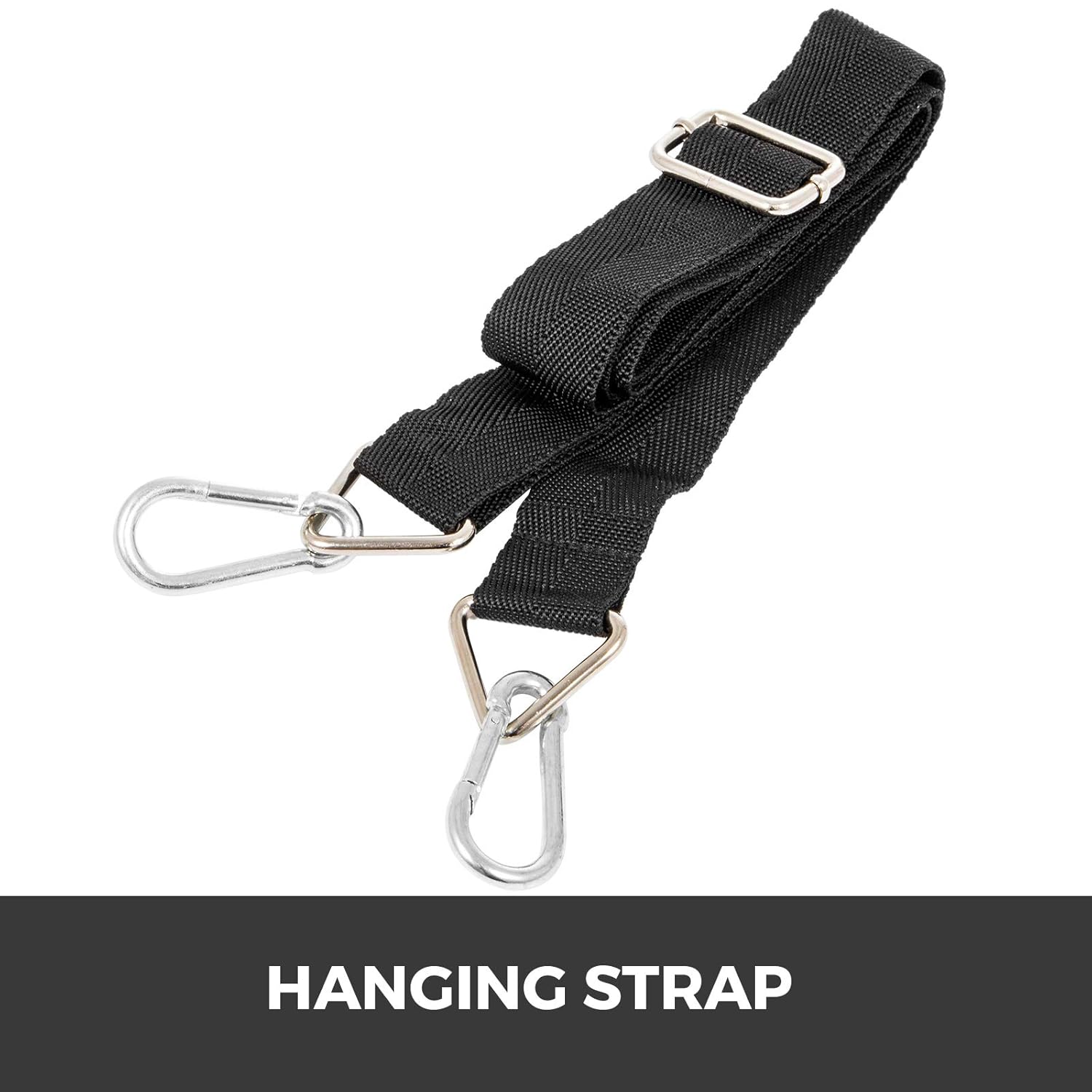

Image: The included hanging strap, designed for convenient transport and hands-free use of the welder.
4. Настройка
- Распакуйце: Асцярожна выміце ўсе кампаненты з упакоўкі. Праверце на наяўнасць пашкоджанняў пры дастаўцы.
- Парада Ўстаноўка: Ensure the welding tips are securely screwed into the gun. If replacing, twist off the old tips and screw on the new ones firmly.
- Падключэнне сілкавання: Connect the welder to a suitable 400V power supply. Verify that the power source matches the welder's requirements. Do not attempt to connect to a 220V or 110V household outlet.
- Падрыхтоўка працоўнай зоны: Set up your work area in a well-ventilated space, free from flammable materials. Ensure you have all necessary PPE.
- Hanging Strap (Optional): Attach the hanging strap to the designated points on the welder if you intend to use it for portability or hands-free operation.
5. Інструкцыя па эксплуатацыі
This spot welder is designed for welding metal parts with a maximum thickness of 2.0 + 2.0 mm.
- Уключэнне: Connect the welder to the 400V power supply. The control panel should illuminate.
- Выберыце рэжым: Use the distinct control panel to select the appropriate welding mode based on the thickness and type of metal you are welding. Refer to the panel markings for guidance (e.g., 2+2mm, 1.5+1.5mm, etc.).
- Пазіцыя дэталі: Place the metal pieces to be welded between the welding tips. Ensure good contact between the tips and the workpiece.
- Initiate Weld: Firmly press the trigger or handle to bring the tips together and initiate the welding process. Hold until the weld cycle is complete.
- Inspect Weld: After each weld, carefully inspect the joint for strength and quality. Adjust settings as needed.
- Астуджэнне: Allow the welder and workpiece to cool down between welds to prevent overheating and ensure optimal performance.
- Выключэнне: When finished, disconnect the welder from the power supply.
6. Тэхнічнае абслугоўванне
- Уборка: Regularly clean the exterior of the welder with a dry cloth. Do not use solvents or abrasive cleaners.
- Tip Inspection and Replacement: Inspect welding tips for wear or damage. Replace worn tips promptly to maintain welding quality. Always disconnect power before changing tips.
- Праверка кабеля: Periodically check power cables for cuts, fraying, or damage. Replace damaged cables immediately.
- захоўванне: Store the welder in a dry, clean, and secure location when not in use.
7. Выпраўленне непаладак
If you encounter issues with your VEVOR Spot Welder, refer to the following common troubleshooting steps:
| праблема | Магчымая прычына | Рашэнне |
|---|---|---|
| Зварачны апарат не ўключаецца | Няма харчавання; няправільная гучнасцьtage; Damaged cable | Check power connection; Ensure 400V supply; Inspect and replace damaged cables. |
| Poor weld quality / No weld | Worn tips; Incorrect settings; Insufficient contact; Material too thick | Replace tips; Adjust welding mode/settings; Ensure firm contact; Verify material thickness is within 2.0+2.0mm limit. |
| Перагрэў | Continuous use; Insufficient cooling time | Allow adequate cooling time between welds; Do not operate continuously for extended periods. |
If the problem persists after following these steps, please contact VEVOR customer support.
8. Тэхнічныя характарыстыкі
| Спецыфікацыя | Каштоўнасць |
|---|---|
| Марка | ВЕВОР |
| Нумар мадэлі | 380В |
| Крыніца харчавання | 400В |
| Ватtage | 2000 ват |
| Максімальная таўшчыня зваркі | 2.0 + 2.0 мм |
| Даўжыня прадмета | 120 міліметра |
| Вага прадмета | 11.3 кілаграма |
| Матэрыял ручкі | Алюміній |
| Асаблівасці | Лёгкі, партатыўны |
| UPC | 197988934974 |
9. Гарантыя і падтрымка
VEVOR products are designed for durability and performance. For warranty information, please refer to the documentation included with your purchase or visit the official VEVOR website. If you require technical assistance or have questions regarding your spot welder, please contact VEVOR customer support through their official channels.
вытворца: ВЕВОР
