Indesit Oven Door Hinge Instruction Manual

Уводзіны

This manual provides essential instructions for the installation, operation, and maintenance of the sparefixd oven door hinge, which is an equivalent replacement for Indesit part number C00077441. Please read these instructions thoroughly before attempting any installation or maintenance procedures to ensure safe and correct usage.

The sparefixd oven door hinge is designed to restore the proper function of your oven door, ensuring smooth opening and closing. This product is compatible with a wide range of Indesit oven models. For a comprehensive list of compatible models, please refer to the product description where this item was purchased.

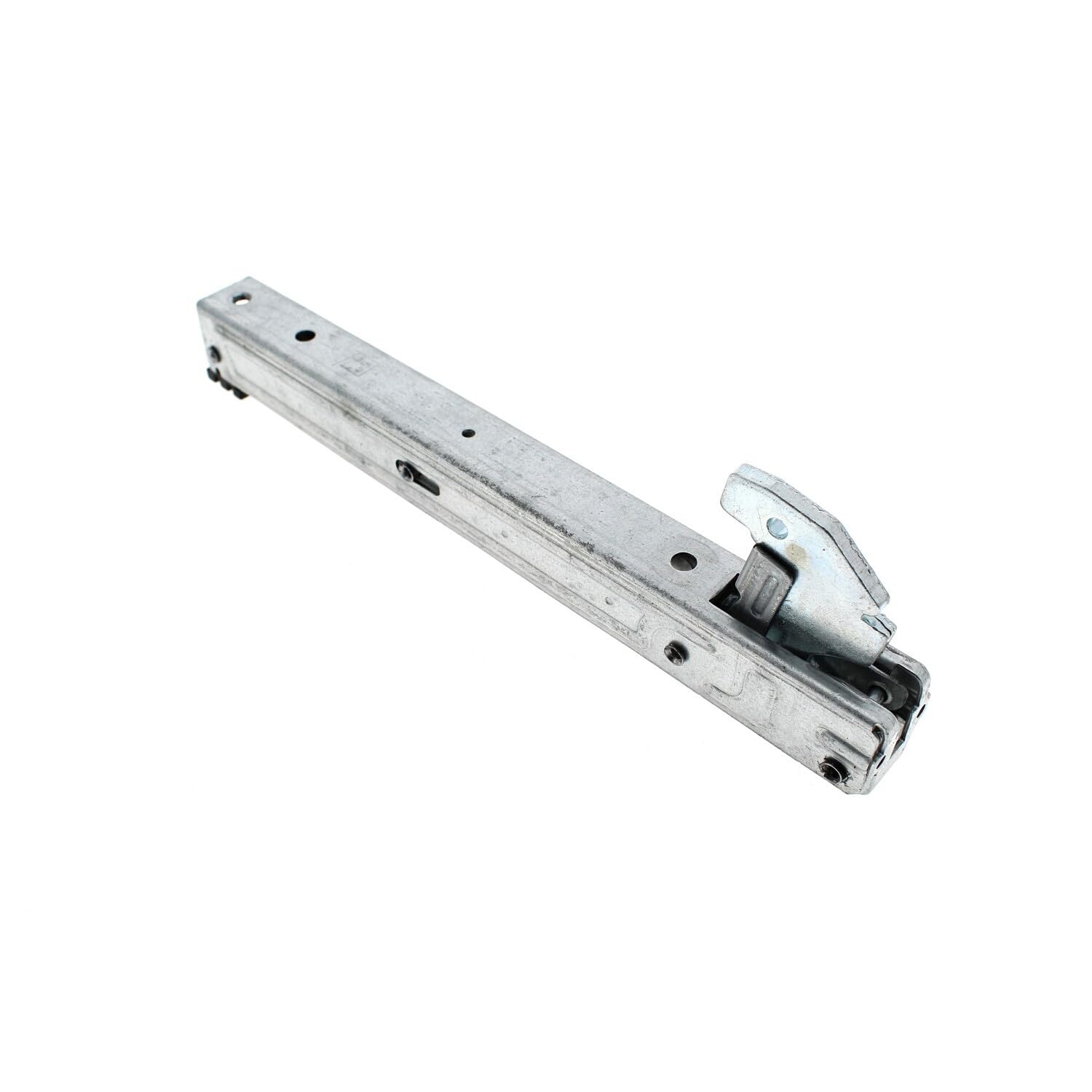

This image displays the replacement oven door hinge, designed for Indesit ovens. It shows the metal construction and mounting points, which are crucial for proper fitment.

Настройка і ўстаноўка

Replacing an oven door hinge requires careful attention to safety and proper procedure. If you are unsure about any step, it is recommended to consult a qualified technician.

Меры бяспекі:

• Always disconnect the oven from the main power supply before beginning any installation or repair work.
• Карыстайцеся адпаведнымі сродкамі індывідуальнай абароны, такімі як пальчаткі, каб пазбегнуць траўмаў.
• Ensure the oven door is supported during removal and reinstallation to prevent it from falling.

Этапы ўстаноўкі:

1. Identify Oven Model: Locate your oven's model number. This is typically found inside the oven door on the main body, sometimes hidden behind the door seal or towards the bottom. For built-in ovens, it might be accessible by removing the oven from its unit.
2. Remove Oven Door: Carefully open the oven door fully. Depending on your oven model, there may be small levers or clips on the hinges that need to be flipped or engaged to unlock the door. Once unlocked, partially close the door to a specific angle (usually about 45 degrees) and lift it straight up and out of its frame. Place the door on a soft, flat surface to prevent damage.
3. Access and Remove Old Hinges: With the door removed, you will typically find screws securing the hinges to the oven door frame. Unscrew these fasteners and carefully remove the old, faulty hinges. Note the orientation of the hinges for correct reinstallation.
4. Усталюйце новыя завесы: Position the new sparefixd oven door hinges in the same orientation as the old ones. Secure them with the appropriate screws, ensuring they are tightened firmly but not overtightened.
5. Reinstall Oven Door: Align the new hinges on the oven door with the slots in the oven frame. Carefully lower the door into place, ensuring the hinges engage correctly. Once seated, open the door fully and re-engage any locking levers or clips that were disengaged during removal.
6. Тэставая аперацыя: Gently open and close the oven door several times to ensure it operates smoothly and closes securely without any gaps.
7. Падключыце сілкаванне: Once satisfied with the installation, reconnect the oven to the main power supply.

Інструкцыя па эксплуатацыі

The sparefixd oven door hinge is a mechanical component designed to facilitate the movement of your oven door. Proper operation involves simply opening and closing the oven door as intended. After installation, the door should move smoothly and securely.

• Плыўны рух: The door should open and close with consistent, smooth motion, without excessive resistance or binding.
• Бяспечнае закрыццё: When closed, the oven door should sit flush against the oven frame, creating a proper seal to maintain oven temperature efficiency.
• Пазбягайце сілы: Do not force the oven door open or closed if you encounter resistance. Investigate the cause of the obstruction immediately.

Тэхнічнае абслугоўванне

Regular maintenance helps prolong the life of your oven door hinges and ensures continued safe operation.

• Уборка: Periodically clean the hinge area to remove any accumulated grease, food debris, or dust. Use a damp cloth and mild detergent. Ensure the area is dry after cleaning.
• агляд: Regularly inspect the hinges for any signs of wear, corrosion, bending, or loose screws. Address any issues promptly.
• змазка: Oven hinges are typically designed to operate without lubrication due to high temperatures. Applying standard lubricants can attract dirt and grease, or even pose a fire hazard. Consult your oven's specific manufacturer guidelines before applying any lubricant.

Ліквідацыю непаладак

If you encounter issues with your oven door after hinge replacement, refer to the following troubleshooting guide:

If the problem persists after attempting these solutions, it is advisable to contact a qualified appliance repair technician.

Тэхнічныя характарыстыкі

• Тып прадукту: Завеса дзверцы духоўкі
• Марка: sparefixd
• Equivalent Part Number: C00077441
• ASIN: B08DY7DSLF
• Сумяшчальнасць: Designed to fit various Indesit oven models. Refer to the product listing for a detailed compatibility list.
• матэрыял: Metal construction (specific alloy not provided).

Гарантыя і падтрымка

No specific warranty information is provided with this product. Please refer to the retailer or manufacturer's website for any applicable warranty details.

For technical support or further assistance regarding the sparefixd oven door hinge, please contact sparefixd customer service through the platform where the product was purchased or refer to the manufacturer's official contact channels.
