1. Уводзіны
The HubiCare Leg Massager is an advanced air compression device designed to provide circulation and pain relief for your legs. Featuring heat and vibration functions, along with multiple modes and intensity levels, it aims to reduce swelling and promote muscle relaxation. This manual provides essential information for safe and effective use of your device.
2. Асаблівасці прадукту
- 2024 Upgrade Thigh-Calf-Foot Massager: Covers the entire range from thighs to foot with built-in 13 airbags for 360° circulation and pressure. Includes heating function for minor pain relief, muscle recovery, and improved blood flow. Each part is separate and can be used on specific areas.
- Zipper Design, Easy to Wear: Features a unique zipper design for convenient donning and doffing, making it easy for anyone to use independently.
- Adjustable Fit with Extensions: Size can be adjusted to fit various leg sizes. Parts are generously sized (15 inches, 21 inches, 15 inches) with Velcro for adjustment.
- 6 Modes + 2 Heat Levels + 3 Intensity Levels + Vibration: Offers customized massage with diverse modes (Auto, Pinch, Leg, Press, Foot, Relax). Adjustable intensity (Min, Mid, Max) and heating (Low, High, Off, 42°C~52°C).
- 20-minute Safety Auto-off: Automatically shuts off after 20 minutes to protect battery life and prevent excessive massage.
Figure 2.1: Illustration of the 13 airbag distribution for comprehensive leg massage.
Figure 2.2: The massager offers sequential compression with various modes for a customized experience.
3. Змесціва ўпакоўкі
Калі ласка, праверце ўпакоўку, каб пераканацца ў наяўнасці ўсіх прадметаў:
- HubiCare Leg Massager (Pair of leg wraps)
- Кантралёр
- Knee Pads (Pair)
- Сумка для захоўвання
- Кіраўніцтва карыстальніка

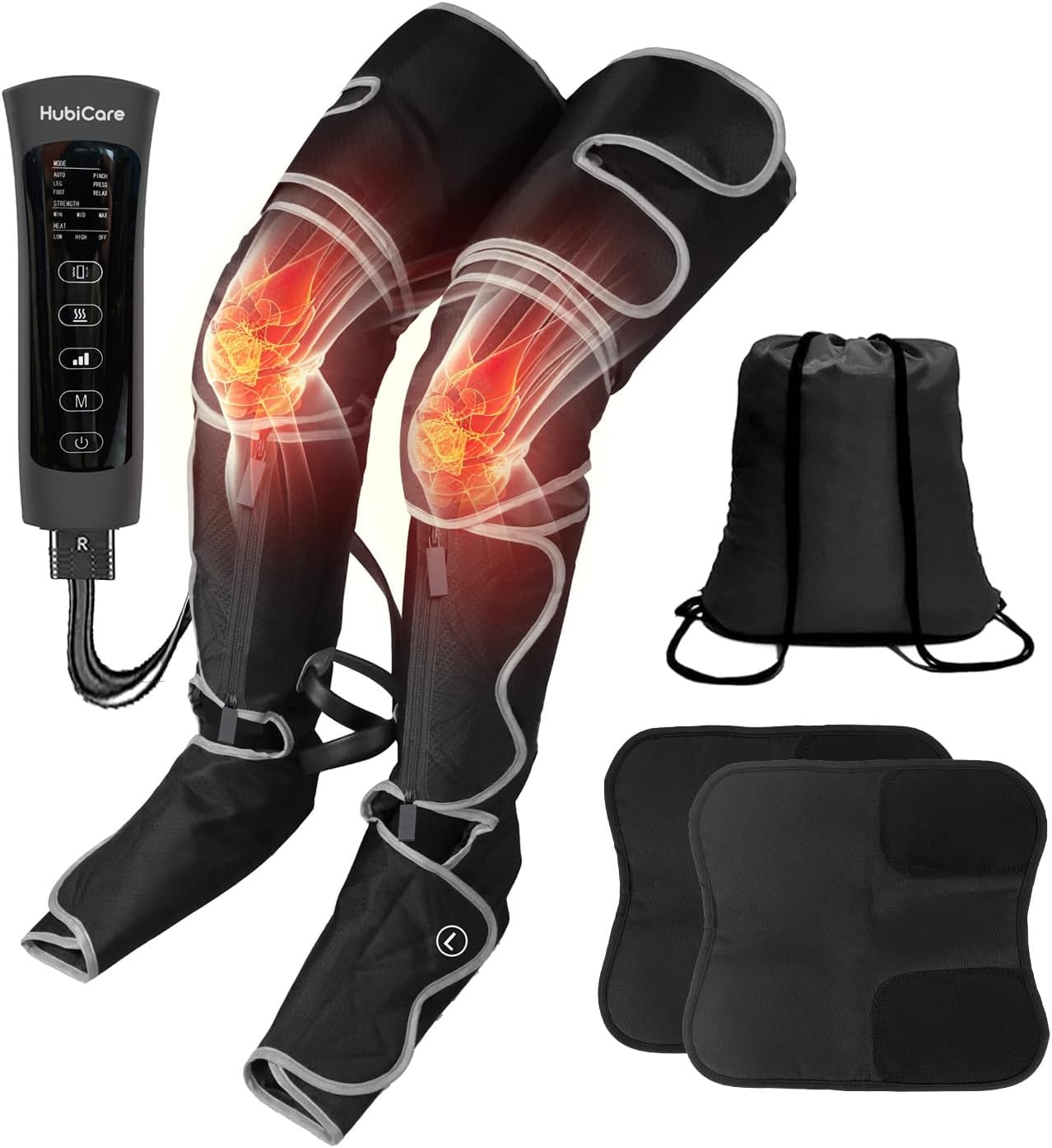

Figure 3.1: All components included in the HubiCare Leg Massager package.
4. Настройка
Follow these steps to set up your HubiCare Leg Massager:
- Падрыхтуйце масажор: Lay the leg massager wraps flat on a surface.
- Носіце масажор: Put your foot into the foot section of the massager. Wrap the Velcro straps properly around your calf and thigh, ensuring a snug but comfortable fit. Attach the knee Velcro strap.
- Падключыце кантролер: Connect the hose from the leg wraps to the designated port on the controller.
Figure 4.1: Proper way to wear the HubiCare Leg Massager for full coverage.
Figure 4.2: The massager fits most leg sizes and can be extended for larger dimensions.
Video 4.1: A demonstration on how to properly wear the HubiCare leg massager, including securing the Velcro straps and connecting the controller.
5. Інструкцыя па эксплуатацыі
Your HubiCare Leg Massager offers various settings for a personalized experience:
- Уключэнне/выключэнне харчавання: Націсніце кнопку харчавання (U) on the controller to turn the device on or off.
- Выберыце рэжым: Press the 'M' button to cycle through 6 massage modes: Auto, Pinch, Leg, Press, Foot, Relax.
- Рэгуляваць сілу: Use the strength button (|||) to select from 3 intensity levels: Min, Mid, Max.
- Control Heat: Націсніце кнопку нагрэву (SSS) to choose between 2 heat levels (Low, High) or turn it off. The temperature ranges from 42°C to 52°C.
- Уключыць вібрацыю: Use the vibration button (~) to select from 3 vibration levels (White - Level 1, Green - Level 2, Blue - Level 3).
The massager features a 20-minute automatic shut-off for safety and to conserve battery life. It is recommended to use the massager for less than 15 minutes at a time.
Figure 5.1: The intuitive control panel allows for easy customization of your massage experience.
Figure 5.2: Detailed explanation of each massage mode and its targeted areas.
6. Тэхнічнае абслугоўванне
To ensure the longevity and proper functioning of your HubiCare Leg Massager:
- Уборка: Wipe the massager and controller with a soft, damp тканіна. Не выкарыстоўвайце абразіўныя ачышчальнікі і не апускайце прыладу ў ваду.
- захоўванне: Store the massager in a cool, dry place, away from direct sunlight and extreme temperatures. Use the provided storage bag to protect it from dust.
- Сыход: Avoid sharp objects that could puncture the airbags or fabric. Do not forcefully bend or twist the massager.
7. Выпраўленне непаладак
If you encounter any issues with your massager, please refer to the following common problems and solutions:
| праблема | Магчымая прычына | Рашэнне |
|---|---|---|
| Прылада не ўключаецца. | Hose not properly connected to controller; Low battery (if applicable); Power button not pressed firmly. | Ensure hose is securely connected. Charge the device if it's rechargeable. Press the power button firmly. |
| Няма сціску або слабы сціск. | Hose connection loose; Air leakage; Incorrect mode/intensity setting. | Check all hose connections for tightness. Inspect wraps for any visible damage. Adjust mode and intensity settings on the controller. |
| Няма спёкі або слабая спёка. | Heat function not activated; Low heat setting selected. | Ensure the heat function is turned on and set to 'High' if desired. |
| Няма вібрацыі. | Vibration function not activated; Low vibration setting selected. | Ensure the vibration function is turned on and set to a higher level if desired. |
Калі праблема не знікне, звярніцеся ў службу падтрымкі кліентаў.
8. Тэхнічныя характарыстыкі
- Памеры прадукту: 16.14 х 9.84 х 8.27 цалі
- Вага прадмета: 4.2 фунта
- Нумар мадэлі тавару: ІП-7208
- вытворца: HuBDIC
- матэрыял: Поліэстэр
- колер: Чорны
- Выкарыстоўвайце для: Ногі
9. Інфармацыя па бяспецы
Важныя меры бяспекі:
- Avoid excessive use.
- Не выкарыстоўвайце побач з вадой або мокрымі рукамі.
- Заявы адносна дыетычных дабавак не былі ацэнены FDA і не прызначаны для дыягностыкі, лячэння або прафілактыкі якіх-небудзь захворванняў або стану здароўя.
10. Гарантыя і падтрымка
For warranty information, technical support, or any inquiries regarding your HubiCare Leg Massager, please refer to the official product website or contact HuBDIC customer service.
You can also scan the QR code below to access the user manual translation and choose your preferred language:
Figure 10.1: Scan this QR code for multi-language user manual access.
Alternatively, visit the official manual page: HubiCare User Manual
