Amewi Binary V3 RC Sailboat Instruction Manual

1. Уводзіны

Welcome to the instruction manual for your Amewi Binary V3 RC Sailboat. This attractive and elegant catamaran is designed for ease of sailing and is now in its third generation, featuring new technical advancements. It includes automatic sail correction for gusts and intelligent control to significantly reduce the risk of capsizing. Whether you are sailing in a large swimming pool, pond, or lake, the Binary V3 promises an enjoyable experience. Its rich sailing characteristics are supported by high-quality materials and design, making it suitable for both beginners and experienced enthusiasts.

This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your RC sailboat. Please read it thoroughly before first use.

2. Інструкцыі па тэхніцы бяспекі

Operating remote-controlled models requires caution and responsibility. Failure to operate the model safely can result in injury or damage to property. Always adhere to the following safety guidelines:

• Узроставае абмежаванне: This product is not suitable for children under 3 years due to small parts which may present a choking hazard. Recommended age is 14 years and above.
• Кантроль: Children operating the model must be supervised by an adult.
• Бяспека вады: Operate the sailboat only in open water areas, away from swimmers, boats, and obstacles. Avoid operating in strong currents or high winds that exceed the model's capabilities.
• Бяспека акумулятара: Always use the correct type and size of batteries. Do not mix old and new batteries, or different types of batteries. Dispose of used batteries responsibly. Never short-circuit battery terminals.
• Умовы навакольнага асяроддзя: Do not operate the model during thunderstorms or in adverse weather conditions.
• Тэхнічнае абслугоўванне: Regularly inspect the model for any damage or wear. Do not operate a damaged model.

3. Змесціва ўпакоўкі

Перад зборкай пераканайцеся, што ў камплекце ёсць усе пералічаныя ніжэй кампаненты:

• Amewi Binary V3 RC Sailboat Model (Hulls, Mast, Booms, Sails)
• 2.4 GHz Digital Proportional Remote Control Transmitter
• Падстаўка для лодкі
• Інструкцыя па эксплуатацыі (DE/EN)

Items Required (Not Included):

• 4 x 1.5V AA Mignon batteries for the model (receiver)
• 4 батарэйкі тыпу AA Mignon 1.5 В для перадатчыка

Выява 1: Канецview of the Amewi Binary V3 RC Sailboat package contents, showing the disassembled boat, remote control, and boat stand.

4. Налада і зборка

The Amewi Binary V3 is designed for quick and easy assembly. Follow these steps to prepare your sailboat for its first voyage:

4.1. Install the Boat Stand

Assemble the plastic boat stand according to the diagrams in the included manual. This stand will support the boat during assembly and storage.

4.2. Устаноўка батарэі

1. перадатчык: Open the battery compartment on the back of the 2.4 GHz remote control. Insert 4 x 1.5V AA Mignon batteries, ensuring correct polarity. Close the compartment.
2. Boat (Receiver): Locate the battery compartment within the boat's hull. Insert 4 x 1.5V AA Mignon batteries, observing correct polarity. Securely close the compartment to prevent water ingress. It is recommended to use gaffer tape or similar waterproof sealing after the first few uses to ensure the electronics remain sealed, as the factory patches may require reinforcement.

Image 2: The J2C02 remote control transmitter and its corresponding receiver unit, which are essential for controlling the sailboat.

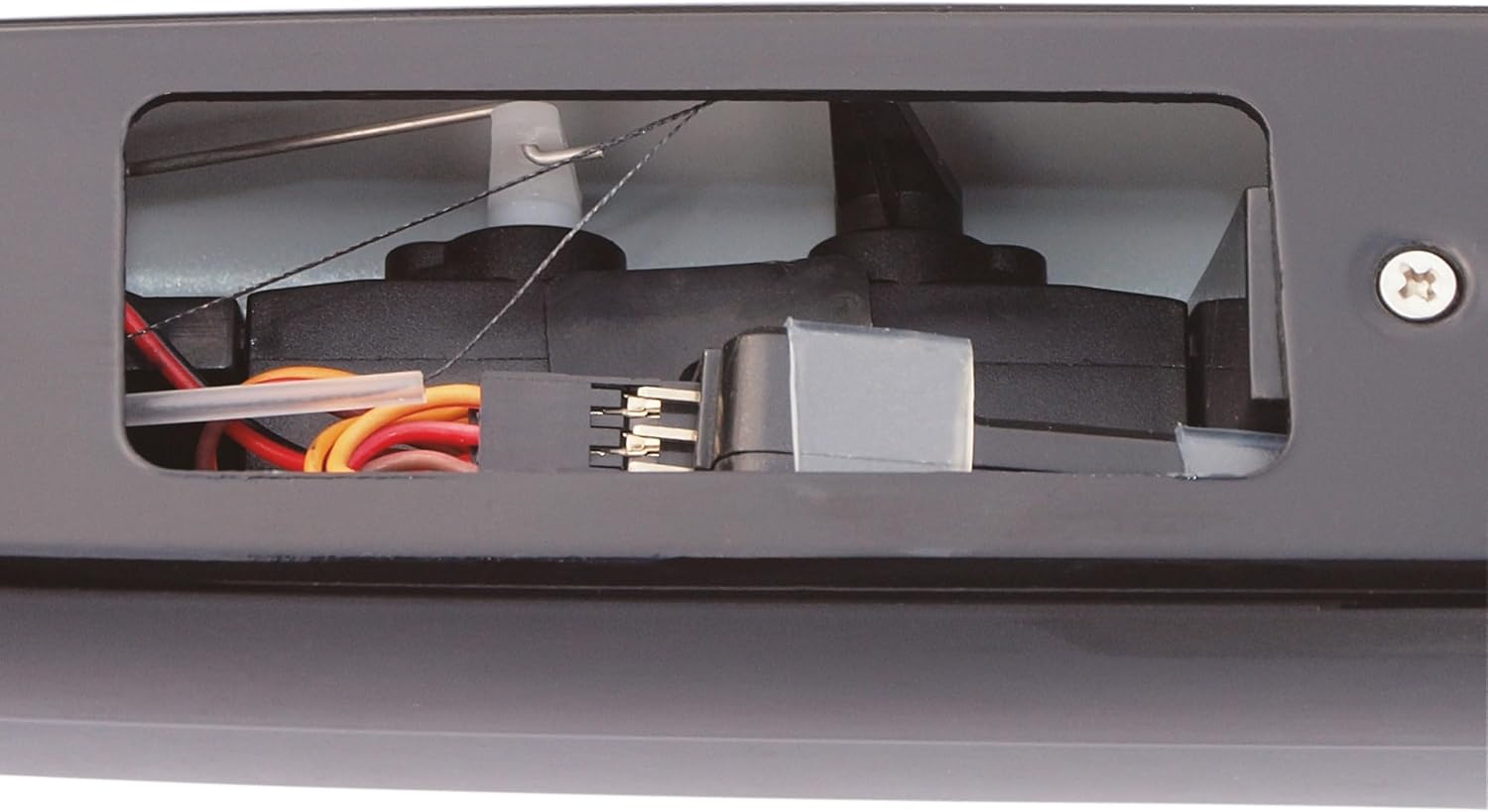

Малюнак 3: Крупны план view of the internal electronics compartment of the sailboat, showing the receiver and servo connections.

4.3. Mast and Sail Assembly

The mast and boom are constructed from durable fiberglass. Follow the instructions carefully for proper rigging:

1. Attach the mast to the main hull.
2. Connect the main sail and jib sail to their respective booms and then to the mast. Ensure all lines are securely fastened.
3. Sail Line Rigging: The included manual may provide general guidance for sail line routing. However, for optimal performance and to avoid issues, it is recommended to consult online resources or diagrams for proper RC sailboat sail rigging techniques if the provided instructions are unclear or lead to poor performance. Correct rigging ensures the sails can be adjusted effectively by the servos.

4.4. Звязванне перадатчыка і прымача

The transmitter and receiver are typically pre-bound from the factory. If you experience connection issues, follow these steps to re-bind:

1. Ensure both the transmitter and receiver have fresh batteries and are powered off.
2. Уключыце перадатчык.
3. Power on the boat (receiver). Look for a binding button or sequence as described in the detailed manual.
4. The indicator light on the receiver should become solid, indicating a successful bind. If issues persist, try powering on the boat first, then the transmitter, or vice-versa, as some units can be sensitive to the power-on sequence.

Image 4: The fully assembled Amewi Binary V3 RC Sailboat resting on its included stand, showcasing its catamaran design and sails.

5. Інструкцыя па эксплуатацыі

Once assembled and powered, your Amewi Binary V3 RC Sailboat is ready for operation. Familiarize yourself with the controls and sailing principles.

5.1. Асноўныя элементы кіравання

The 2.4 GHz proportional remote control allows precise manipulation of the sailboat:

• Steering (Rudder): Typically controlled by one joystick or wheel on the transmitter. This adjusts the rudder to change the boat's direction.
• Sail Control: Controlled by another joystick or lever. This adjusts the angle of the sails relative to the wind, allowing you to harness wind power for propulsion.
• Аздабленне: Small buttons or sliders near the joysticks allow fine-tuning of the rudder and sail positions to ensure the boat sails straight or maintains a desired sail angle without constant input.

5.2. Sailing Tips

• Wind Awareness: Always be aware of the wind direction and strength. RC sailboats are highly dependent on wind.
• Sail Adjustment: Adjust your sails to the wind. When sailing directly into the wind (no-go zone), the boat will stop. You will need to tack (turn through the wind) or jibe (turn away from the wind) to change direction.
• Паварот: Use the rudder for steering and coordinate with sail adjustments for smooth turns.
• Smart Control Features: The Binary V3 features automatic sail correction in gusts and intelligent control to reduce capsizing risk. These systems work automatically to maintain stability and optimal sailing performance.

Image 5: The Amewi Binary V3 RC Sailboat actively sailing on water, demonstrating its performance and stability.

6. Тэхнічнае абслугоўванне

Proper maintenance will extend the lifespan of your Amewi Binary V3 RC Sailboat and ensure consistent performance.

• Пасля кожнага выкарыстання:
• Remove the batteries from both the boat and the transmitter.
• Thoroughly dry the boat, especially the electronics compartment, to prevent corrosion.
• Clean the hull and sails with fresh water to remove any salt, dirt, or debris.
• Сыход за батарэяй: Store batteries in a cool, dry place. Do not leave batteries in the model or transmitter for extended periods when not in use.
• Sail and Rigging Inspection: Regularly check the sails for tears or damage. Inspect all lines and connections for wear or looseness. Replace any damaged components.
• Цэласнасць корпуса: Periodically check the hull for cracks or leaks. Ensure the seals for the electronics compartment are intact. As noted in user feedback, reinforcing the seals with waterproof tape (e.g., gaffer tape) after initial uses can significantly improve water resistance.
• захоўванне: Store the sailboat on its stand in a dry, cool place away from direct sunlight.

7. Выпраўленне непаладак

If you encounter issues with your Amewi Binary V3, refer to the following common problems and solutions:

8. Тэхнічныя характарыстыкі

Technical details for the Amewi Binary V3 RC Sailboat:

9. Гарантыя і падтрымка

For warranty information and customer support, please refer to the documentation included with your product or visit the official Amewi webсайт. Захоўвайце пацвярджэнне пакупкі для любых гарантыйных прэтэнзій.

Афіцыйны Webсайт: amewi.com
