1. Уводзіны
The KitchenBrothers Sous Vide Immersion Circulator, Model KB717, is designed to provide precise temperature control for low-temperature cooking. This method ensures food is cooked evenly to its desired doneness, retaining moisture and flavor. This manual provides essential information for the safe and effective use of your appliance.
2. Інструкцыі па тэхніцы бяспекі
- Перад выкарыстаннем прыбора заўсёды чытайце ўсе інструкцыі.
- Do not immerse the electrical cord, plug, or the upper part of the circulator in water or other liquids.
- Ensure the appliance is connected to a grounded electrical outlet.
- Захоўвайце прыбор у месцах, недаступных дзецям.
- Use only with a heat-resistant pot or container.
- Не выкарыстоўвайце прыладу, калі пашкоджаны шнур або вілка, або калі яна працуе няспраўна або была пашкоджана якім-небудзь чынам.
- Always ensure the water level is between the MIN and MAX marks on the circulator.
- Праяўляйце асаблівую асцярожнасць, калі перамяшчаеце прыбор, які змяшчае гарачы алей або іншыя гарачыя вадкасці.
- Адключайце вілку ад разеткі, калі яна не выкарыстоўваецца і перад чысткай. Дайце астыць, перш чым надзяваць або здымаць дэталі, а таксама перад чысткай прыбора.
3. Змесціва ўпакоўкі
Your KitchenBrothers Sous Vide Immersion Circulator package includes the following items:
- Sous Vide Immersion Circulator (Model KB717)
- Вакуумны помпа
- Шматразовыя вакуумныя пакеты
- Sealing Clips
- Шчыпцы
- Sous Vide Cookbook

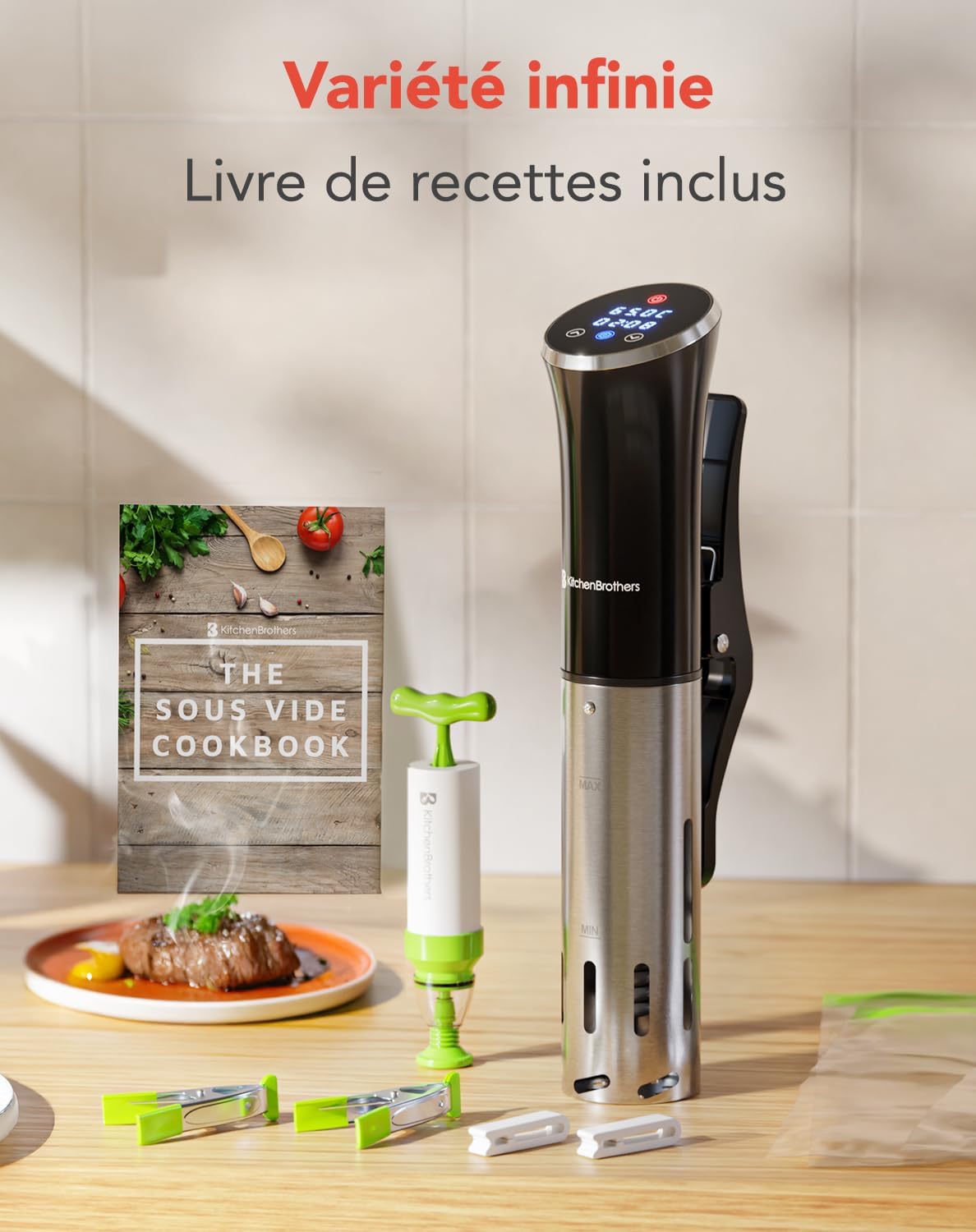

Image: The KitchenBrothers Sous Vide Immersion Circulator shown with its complete set of accessories, including the vacuum pump, various reusable vacuum bags, sealing clips, and a cookbook.
4. Асаблівасці прадукту
The KitchenBrothers Sous Vide Immersion Circulator offers advanced features for an optimal cooking experience:
- High Precision Temperature Control: Adjustable from 0°C to 95°C with an accuracy of 0.2°C, ensuring perfectly cooked results every time.
- Магутны награвальны элемент магутнасцю 1200 Вт: Rapidly heats water to the desired temperature and maintains it consistently.
- Зручны інтэрфейс: Intuitive touch controls for easy temperature and time setting.
- Убудаваны таймер: Set precise cooking durations for various foods.
- Secure Attachment Clip: Easily attaches to most pots and containers.
- Трывалая канструкцыя: Made with stainless steel for longevity and easy cleaning.
- Поўны камплект аксесуараў: Comes with a cookbook, reusable vacuum bags, a vacuum pump, and sealing clips for immediate use.

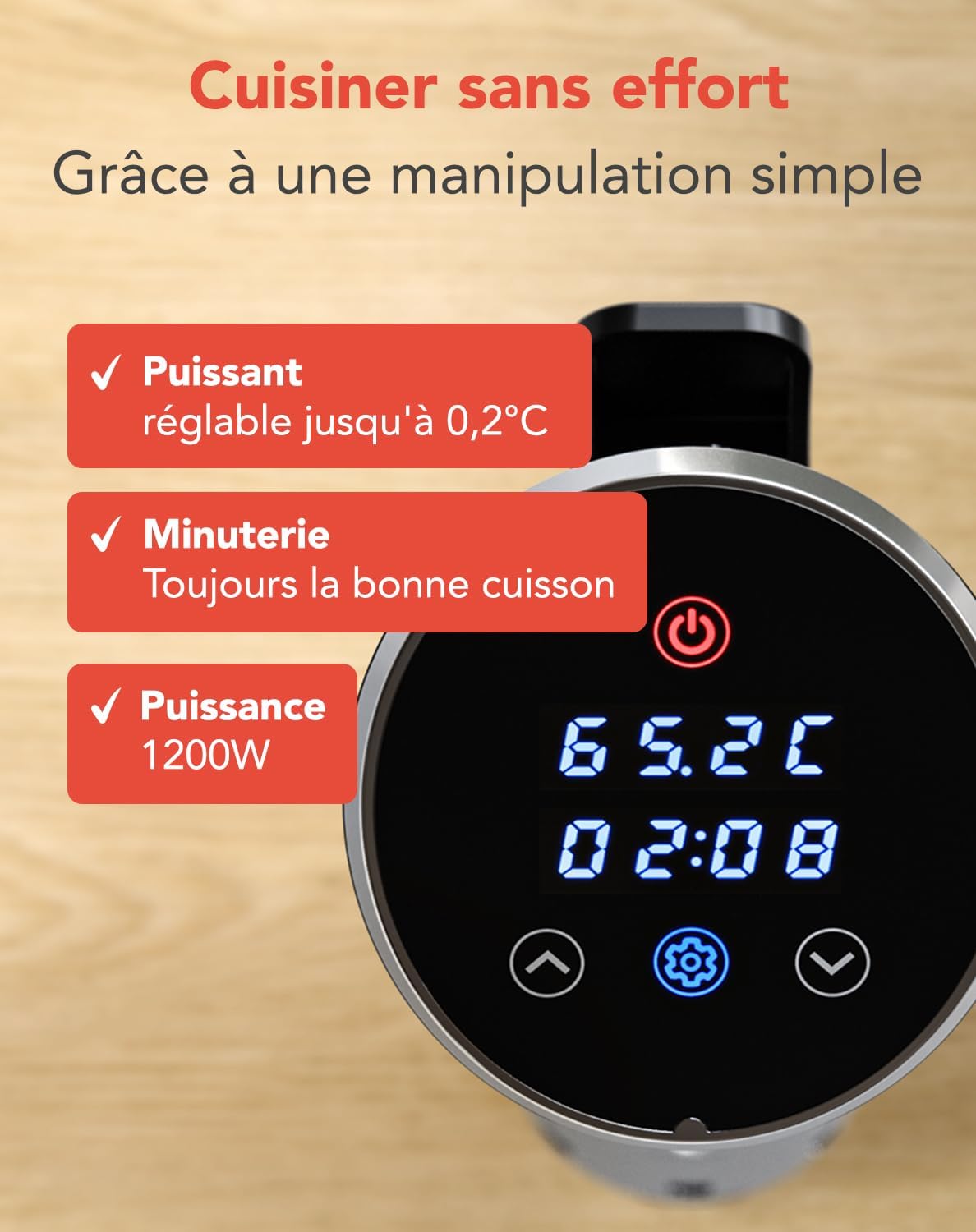

Image: The digital display of the sous vide circulator showing temperature and time, highlighting its precise control capabilities.
5. Настройка
Follow these steps to set up your KitchenBrothers Sous Vide Immersion Circulator:
- Choose a Pot: Select a heat-resistant pot or container large enough to hold your food and the circulator, ensuring the water level will remain between the MIN and MAX marks.
- Падключыце цыркуляцыйны помпа: Securely attach the immersion circulator to the side of your chosen pot using the integrated clip.
- Заліць вадой: Fill the pot with water. Ensure the water level is above the 'MIN' line and below the 'MAX' line indicated on the circulator.
- Падключыце харчаванне: Падключыце шнур сілкавання да заземленай электрычнай разеткі. Дысплей падсвеціцца.
Image: The sous vide circulator is shown attached to a pot, ready for water filling.
Image: Water is being added to the pot, demonstrating the correct water level for operation.
6. Інструкцыя па эксплуатацыі
Выканайце наступныя дзеянні для дакладнага прыгатавання ежы метадам су-від:
- Прыгатуйце ежу: Season your food as desired and place it into one of the reusable vacuum bags.
- Vacuum Seal the Bag: Use the included vacuum pump to remove air from the bag. Ensure a tight seal to prevent water from entering and to ensure even cooking.
Image: Demonstrates the use of the vacuum pump to seal a bag containing food.
- Задаць тэмпературу і час:
- Press the power button to turn on the circulator.
- Use the up/down arrows to adjust the desired cooking temperature.
- Press the settings button (gear icon) to switch to time setting, then use the up/down arrows to set the cooking duration.
- Press the power button again to start heating. The circulator will beep when the target temperature is reached.
- Immerse Food: Once the water reaches the set temperature, carefully place the sealed food bag into the water bath. Use the included clips to secure the bag to the side of the pot, ensuring it remains fully submerged and does not block water circulation.
Image: Food in a vacuum-sealed bag is submerged in the water bath, secured by clips for even cooking.
- Прыгатаванне завершана: The circulator will beep when the set cooking time has elapsed. Carefully remove the food bag from the water bath using the tongs.
- Аздабленне (неабавязкова): For many foods, especially meats, a quick sear in a hot pan or on a grill after sous vide cooking will create a desirable crust and enhance flavor.
Official Product Video: Sous Vide Cooking Process
Video: This official product video demonstrates the complete sous vide cooking process, from vacuum sealing food to setting the temperature and time on the circulator, and finally, the food cooking in the water bath.
Basic Cooking Guide
Refer to the included cookbook for detailed recipes. Here are some general guidelines:
Image: A quick reference guide displaying optimal temperatures and cooking times for common sous vide items such as steak, salmon, chicken, eggs, and vegetables.
- Стейк: 55°C на працягу 60 хвілін
- Ласось: 45°C на працягу 45 хвілін
- курыца: 65°C на працягу 1.5 гадзін
- яйка: 65°C на працягу 50 хвілін
- гародніна: 60 minutes (temperature varies by vegetable, consult cookbook)
7. Тэхнічнае абслугоўванне і ачыстка
Proper maintenance ensures the longevity and performance of your sous vide circulator:
- Перад чысткай адключыце вілку ад сеткі: Заўсёды адключайце прыладу ад электрычнай разеткі і дайце ёй цалкам астыць перад чысткай.
- Clean the Heating Coil and Housing: The stainless steel lower part of the circulator can be wiped with a damp cloth. For mineral deposits, a solution of equal parts white vinegar and water can be circulated at 60°C for 30 minutes, then rinsed.
- Wipe Control Panel: Gently wipe the control panel with a soft, damp cloth. Do not use abrasive cleaners or immerse the upper part of the device in water.
- Захоўвайце належным чынам: Store the circulator in a dry place when not in use.
Image: The stainless steel component of the circulator is shown, emphasizing its design for easy cleaning.
8. Выпраўленне непаладак
If you encounter issues with your KitchenBrothers Sous Vide Immersion Circulator, refer to the following common problems and solutions:
| праблема | Магчымая прычына | Рашэнне |
|---|---|---|
| Прылада не ўключаецца. | Няма крыніцы харчавання. | Праверце, ці надзейна падключаны шнур харчавання да спраўнай электрычнай разеткі. |
| Вада не награваецца. | Temperature not set or start button not pressed. | Ensure desired temperature is set and the cooking cycle has been initiated. |
| Temperature fluctuates or is inaccurate. | Insufficient water circulation or sensor issue. | Ensure the food bag does not obstruct water flow. Check water level. If problem persists, contact support. |
| Ежа не гатуецца раўнамерна. | Air in vacuum bag or bag not fully submerged. | Re-seal the bag to remove all air. Ensure the bag is completely submerged and secured with clips. |
| Адлюстраваны код памылкі. | Канкрэтная ўнутраная праблема. | Глядзіце поўнае кіраўніцтва па эксплуатацыі, каб даведацца пра канкрэтныя коды памылак, або звярніцеся ў службу падтрымкі кліентаў. |
9. Тэхнічныя характарыстыкі
| Спецыфікацыя | Дэталь |
|---|---|
| Нумар мадэлі | KB717 |
| Памеры (Д х Ш х У) | 11.4 х 7.5 х 34.7 см |
| Вага | 910 грам |
| Магутнасць | 1200 ват |
| тtage | 220 вольт |
| Recommended Water Capacity | Up to 12 Litres |
| Дыяпазон тэмператур | ад 0°C да 95°C |
| Дакладнасць тэмпературы | 0.2°C |
| Матэрыял | Нержавеючая сталь |
| Метад кантролю | Дакранацца |
Image: Visual representation of the product's dimensions for reference.
10. Гарантыя і падтрымка
Your KitchenBrothers Sous Vide Immersion Circulator comes with a Гарантыя 2 год on spare parts, ensuring peace of mind regarding the quality and durability of your product.
For any questions, technical assistance, or warranty claims, please contact KitchenBrothers customer support. Refer to the contact information provided in your product packaging or visit the official KitchenBrothers webсайт для падрабязнай інфармацыі аб падтрымцы.
