Pride Mobility Jazzy Select Power Chair User Manual

1. Уводзіны

This manual provides essential information for the safe and effective operation, maintenance, and care of your Pride Mobility Jazzy Select Power Chair. Please read this manual thoroughly before using your power chair. Proper understanding and adherence to these instructions will ensure optimal performance and longevity of your device.

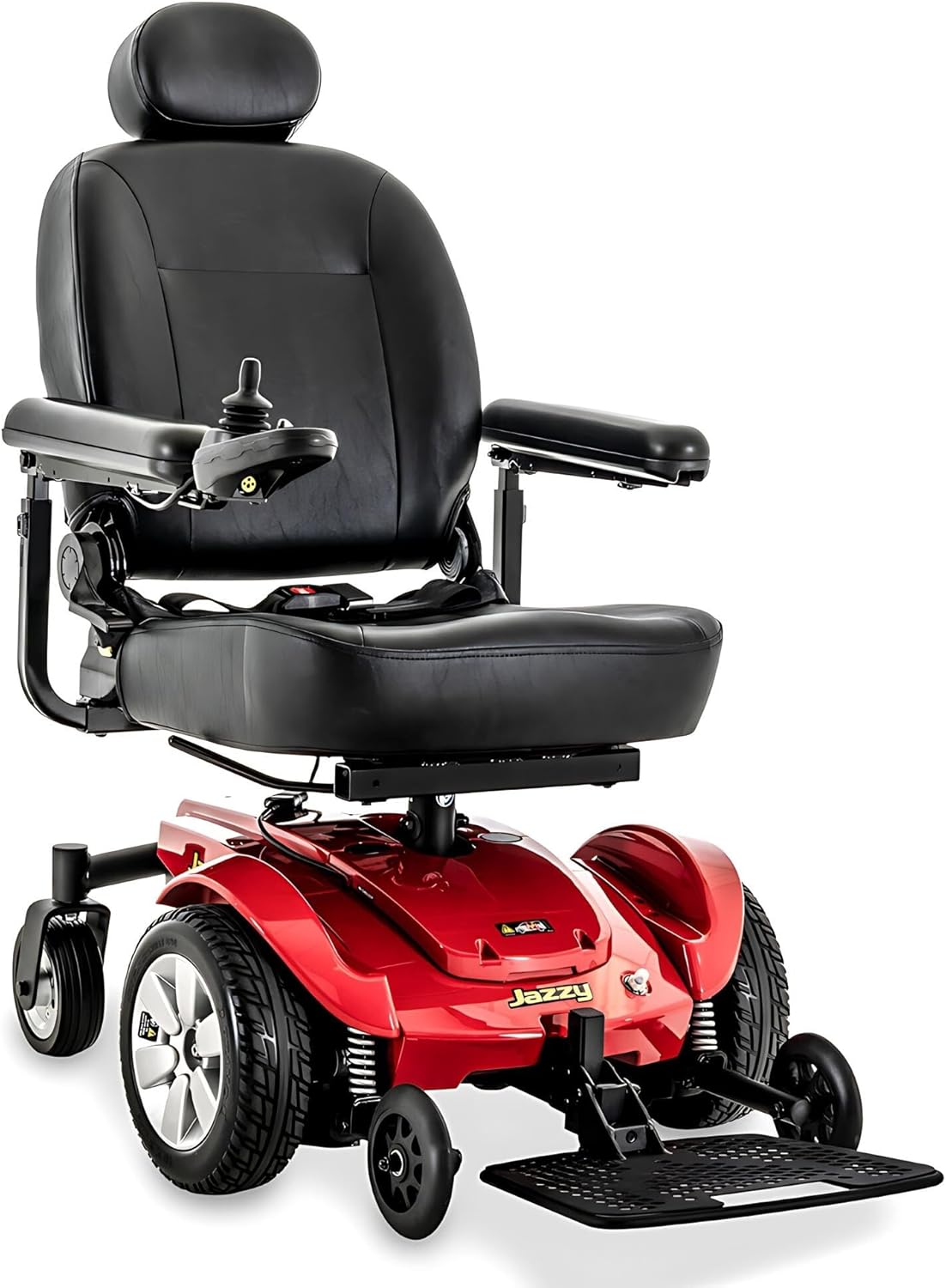

Малюнак 1: Спераду view of the Pride Mobility Jazzy Select Power Chair. This image displays the chair's overall design, including the seat, armrests, joystick control, foot platform, and mid-wheel drive system.

2. Правілы бяспекі

Your safety is paramount. Always observe the following guidelines:

• Ёмістасць вагі: Не перавышайце максімальную вагу ў 300 фунтаў.
• Бяспека акумулятара: Use only approved U-1 batteries. Ensure proper installation and charging procedures are followed to prevent hazards.
• Працоўнае асяроддзе: Avoid operating the power chair on steep inclines, uneven surfaces, or in adverse weather conditions (rain, snow, ice).
• Трансферы: Always turn off the power chair before transferring in or out of the seat.
• Тэхнічнае абслугоўванне: Regularly inspect tires, brakes, and electrical connections. Do not attempt repairs beyond your capability; contact qualified service personnel.
• FDA Class II Medical Device: This device is designed to aid individuals with mobility impairments. Consult a healthcare professional for appropriate use.

3. Усталёўка і першапачатковая зборка

Upon receiving your Jazzy Select Power Chair, some assembly and initial setup are required before first use.

3.1 Распакаванне

Carefully remove all components from the packaging. Inspect for any shipping damage. Retain packaging for future transport or returns.

3.2 Усталёўка акумулятара і першапачатковая зарадка

The Jazzy Select requires two 12V U-1 batteries. Ensure they are fully charged before first use. Refer to the battery charger manual for specific charging instructions.

1. Locate the battery compartment, typically under the seat or base.
2. Carefully place the batteries into their designated slots.
3. Connect the battery terminals according to the markings (positive to positive, negative to negative). Ensure connections are secure.
4. Надзейна зачыніце батарэйны адсек.
5. Connect the charger to the charging port on the power chair and then to a standard wall outlet. Allow for a full initial charge, typically 8-14 hours.

Figure 2: A hand demonstrating the installation of a U-1 battery into the power chair's battery compartment. This illustrates the process of placing the battery and connecting its terminals.

3.3 Seat and Foot Platform Adjustment

The high-back seat is depth adjustable, and the flip-up foot platform is height and depth adjustable for personalized comfort.

• Adjust seat depth by loosening the appropriate fasteners under the seat, sliding the seat to the desired position, and re-tightening.
• Adjust foot platform height and depth by manipulating the adjustment levers or pins located on the foot platform assembly.

Малюнак 3: Бакавы прафесіяналfile of the Jazzy Select Power Chair, highlighting the adjustable high-back seat and the flip-up foot platform. This view helps in understanding the chair's ergonomic features.

4. Operating Your Power Chair

The Jazzy Select features user-friendly controls for intuitive operation.

4.1 Control Panel and Joystick

The control panel typically includes a power button, speed control, and a joystick for steering. Familiarize yourself with these components before driving.

• Уключэнне/выключэнне харчавання: Press the power button to turn the chair on or off.
• Рэгуляванне хуткасці: Use the speed control buttons or dial to set your desired speed. Start at the lowest setting until comfortable.
• Рулявое кіраванне: Gently push the joystick in the desired direction (forward, backward, left, right). The chair's mid-wheel drive provides a tight turning radius for superior maneuverability.
• тармажэнне: рэлеasing the joystick will automatically engage the electromagnetic brakes, bringing the chair to a smooth stop.

4.2 Парады па кіраванні аўтамабілем

• Practice in an open, safe area before navigating confined spaces.
• Maintain a safe distance from obstacles and other people.
• Be aware of your surroundings, especially when turning or reversing.
• The Active-Trac Suspension system helps maintain stability over varied terrain, but exercise caution on uneven surfaces.

5. Тэхнічнае абслугоўванне

Regular maintenance ensures the longevity and safe operation of your power chair.

• Сыход за батарэяй:
  • Charge batteries daily, even if only used for a short period.
  • Avoid completely draining the batteries.
  • Трымайце клемы акумулятара чыстымі і свабоднымі ад карозіі.
• Уборка: Wipe down the chair with a damp cloth. Avoid using abrasive cleaners or excessive water directly on electrical components.
• Ціск у шынах: Check tire pressure regularly and inflate to the recommended PSI (if pneumatic tires).
• Агульны агляд: Periodically check all fasteners, connections, and moving parts for wear or damage.
• Прафесійнае абслугоўванне: Schedule annual professional inspections and service to ensure all components are functioning correctly.

6. Выпраўленне непаладак

У гэтым раздзеле разглядаюцца распаўсюджаныя праблемы, з якімі вы можаце сутыкнуцца. Калі ў вас праблемы, якія тут не пералічаны, звярніцеся ў службу падтрымкі кліентаў.

7. Тэхнічныя характарыстыкі

Key technical specifications for the Pride Mobility Jazzy Select Power Chair (18"x18-20" seat size variant):

• мадэль: Jazzy Select
• Ёмістасць вагі: 300 фунта
• Памер сядзення: 18"x18-20" (depth adjustable)
• батарэі: Two 12V U-1 batteries (included)
• Памеры прадукту: 33" Г x 23.75" Ш x 26" У
• Вага прадмета: 194.6 фунта
• Сістэма прывада: Mid-wheel drive with Active-Trac Suspension
• Рухавікі: Dual, in-line motors

8. Гарантыя і падтрымка

Pride Mobility provides comprehensive warranty coverage for your Jazzy Select Power Chair:

• кадр: 5-гадовая абмежаваная гарантыя
• Электроніка: 13-месячная абмежаваная гарантыя
• Прывадныя рухавікі: 13-месячная абмежаваная гарантыя

Акрамя таго, а 1-Year In-Home Service is offered. If you experience issues within the first twelve months, contact HV Supply to arrange for a technician visit for diagnosis and repair.

Палітыка вяртання і замены:

• If the item is received damaged, notify HV Supply within 3 business days for a free replacement.
• For order refusals or returns unrelated to damage, a 25% restocking fee of the original item price plus a $115.00 back freight charge applies.

For further assistance or to contact support, please refer to the contact information provided with your purchase documentation or visit the official Pride Mobility webсайт.
