1. Уводзіны
Thank you for choosing the TempSpike Wireless Meat Thermometer. This manual provides detailed instructions for setting up, operating, and maintaining your device to ensure perfect cooking results every time. The TempSpike Pro offers advanced features including dual WiFi and Bluetooth connectivity, multiple high-precision sensors, and a durable, waterproof design, all managed through a user-friendly mobile application.
Figure 1: TempSpike Pro Wireless Meat Thermometer System
2. Змесціва ўпакоўкі
Upon unboxing your TempSpike Pro, please verify that all components listed below are included:
- 1 x TempSpike Pro Booster
- 2 x TempSpike Pro Probes (Black and White, for 2-probe model)
- 1 х зарадны канцэнтратар
- 1 х USB-кабель для зарадкі
- 1 х Кіраўніцтва карыстальніка

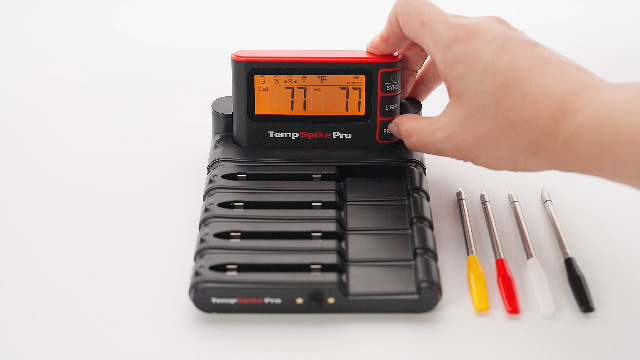

Figure 2: All components included in the TempSpike Pro package.
3. Усталёўка і першае выкарыстанне
3.1 Першапачатковая зарадка
Before first use, fully charge both the booster and the probes. Connect the USB charging cable to the charging hub and a power source. Place the booster and probes into their respective slots on the charging hub. The display will indicate charging status.
Figure 3: Charging the TempSpike Pro system.
3.2 Усталёўка прыкладання
The TempSpike Pro operates with a dedicated mobile application. Download the "ThermoPro" app from your device's app store. Ensure Bluetooth is enabled on your smartphone for initial pairing.
Video 1: Detailed setup and app pairing instructions for the TempSpike Pro.
3.3 Booster and Probe Pairing
The probes and booster are pre-paired from the factory. If re-pairing is needed:
- Зніміце зонд з бустера.
- Press and hold the "PROBE" button on the booster for 3-4 seconds until the internal and ambient readings appear on the display.
- The probe is now paired.
To connect the booster to the app:
- Open the ThermoPro app and tap "Add Device".
- Select "TempSpike Pro" from the list.
- Follow the on-screen prompts to connect to your WiFi network (2.4GHz only). You may need to press the WiFi button on the booster twice.
Figure 4: The modular and detachable design of the TempSpike Pro system.
4. Інструкцыя па эксплуатацыі
4.1 Устаўка зонда
For accurate readings, insert the probe fully into the thickest part of the meat, avoiding bones. The stainless steel part of the probe should be completely inside the food, with only the ceramic handle exposed.
Figure 5: Proper probe insertion for accurate internal and ambient temperature readings.
4.2 Выкарыстанне прыкладання
The ThermoPro app provides real-time temperature monitoring, cooking graphs, and customizable alerts.
- Food Profile Налада: Select the type of meat and desired doneness from preset options. You can also customize target temperatures.
- Маніторынг у рэжыме рэальнага часу: View internal and ambient temperatures on the app.
- Cooking Graph: Track temperature changes over time.
- Абвесткі: Set alarms for target temperatures, low/high ambient temperatures, and disconnection notices.
Малюнак 6: Закончанаview of the upgraded TempSpike Pro smart app features.
The probes are color-coded for easy identification when using multiple probes simultaneously.
Figure 7: Easier tracking with color-coded probes.
Video 2: Demonstration of the TempSpike Pro WiFi Wireless Meat Thermometer in use.
5. Тэхнічнае абслугоўванне і догляд
5.1 Ачыстка
The TempSpike Pro probes are IP67-rated waterproof and safe for dishwasher cleaning. The ceramic handles are heat-resistant up to 1050°F. Always ensure the probes are cool before handling and cleaning.
Figure 8: The TempSpike Pro probes are fully waterproof for easy cleaning.
5.2 Захоўванне
Store the probes and booster in their charging hub when not in use. Ensure they are fully charged before long-term storage to maintain battery health.
Video 3: Short demonstration of the TempSpike Pro's durable probes and charging.
6. Выпраўленне непаладак
| праблема | Магчымая прычына | Рашэнне |
|---|---|---|
| No connection to WiFi. | Device only supports 2.4GHz WiFi. Incorrect password. | Ensure your WiFi network is 2.4GHz. Re-enter password carefully. Separate 2.4GHz and 5GHz networks if necessary. |
| Probe not pairing with booster. | Probe or booster battery low. Pairing process not followed correctly. | Fully charge both devices. Follow the re-pairing steps in Section 3.3. |
| Няправільныя паказчыкі тэмпературы. | Probe not inserted correctly. Sensor malfunction. | Ensure the probe is inserted into the thickest part of the meat, avoiding bones, with the stainless steel part fully submerged. If issues persist, contact customer support. |
| App not alerting. | App settings. Phone's notification settings. | Check app alarm settings (internal, ambient, disconnection). Ensure phone's notification permissions are granted for the ThermoPro app. Keep the app running in the background. |
7. Тэхнічныя характарыстыкі
- Марка: TempSpike
- Назва мадэлі: TempSpike Pro
- Асаблівасці: Wi-Fi Support, Waterproof, App Companion, Rechargeable, Dual Probe
- колер: Чорны
- Знешні матэрыял: Нержавеючая сталь
- Тып дысплея: Лічбавы
- Тэхналогія падключэння: Bluetooth, Wi-Fi (2.4 ГГц)
- Інструкцыі па догляду за вырабам: Dishwasher Safe (Probes)
- акумулятар: Патрабуецца 4 літый-іённыя батарэі (у камплекце)
- Вага прадмета: 1.12 фунта
8. Гарантыя і падтрымка
The TempSpike Pro comes with a standard warranty. For product registration and to extend your warranty, please visit the official TempSpike website or register through the ThermoPro app.
For technical support, troubleshooting assistance, or warranty claims, please contact TempSpike customer service. Contact information can typically be found on the product packaging or the official TempSpike webсайт.
Інтэрнэт-падтрымка: Visit the TempSpike Store on Amazon
