Philips 12-Cup Water Filter Pitcher (Model ADD5902) Instruction Manual

1. Уводзіны

This manual provides essential information for the safe and efficient use of your Philips 12-Cup Water Filter Pitcher, Model ADD5902. This rechargeable water dispenser is designed to provide filtered water conveniently, reducing various impurities for improved taste and quality.

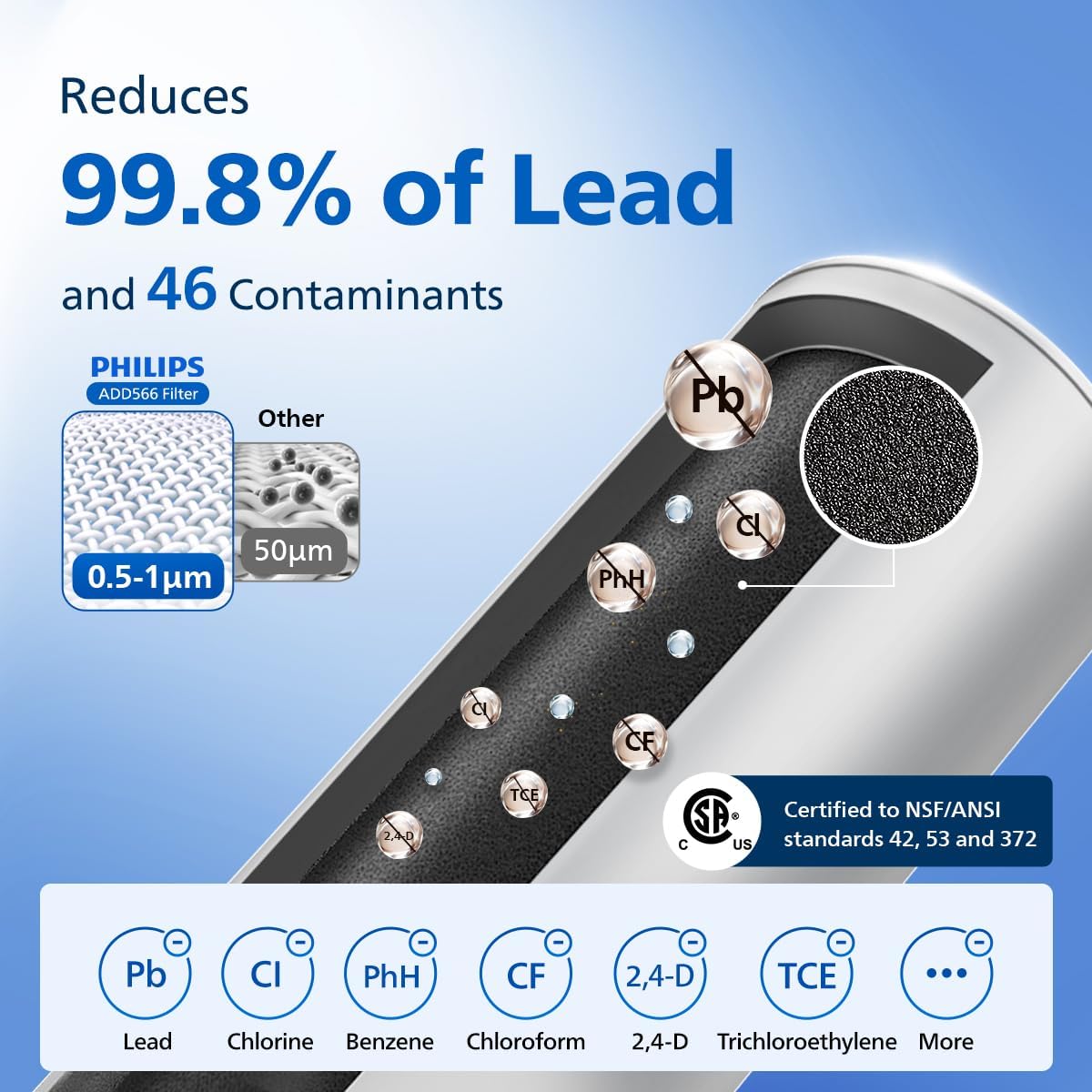

The pitcher features a slim design for easy fridge door placement, a mechanical button for dispensing, and a usage-based filter monitoring system. It utilizes a Plus filter (ADD566) to reduce lead and other contaminants.

2. Важная інфармацыя па бяспецы

Please read all instructions carefully before using the appliance and save them for future reference.

• Do not immerse the electronic dispensing unit in water.
• Use only the original USB-C charging cable provided. Using other cables may prevent proper charging.
• Перад падключэннем кабеля зарадкі пераканайцеся, што порт зарадкі сухі.
• Keep the appliance away from direct heat sources and open flames.
• Гэты прыбор не прызначаны для выкарыстання асобамі (уключаючы дзяцей) з абмежаванымі фізічнымі, сэнсарнымі або разумовымі здольнасцямі або з адсутнасцю вопыту і ведаў, за выключэннем выпадкаў, калі яны знаходзяцца пад наглядам або праінструктаваныя адносна выкарыстання прыбора асобай, адказнай за іх бяспеку.
• Do not use the pitcher with hot water (above 40°C / 104°F).

3. Кампаненты прадукту

Your Philips 12-Cup Water Filter Pitcher package includes the following items:

• 1 x Electric Pitcher (12-cup capacity)
• 1 x Plus Filter (Model: ADD566)
• 1 х Кіраўніцтва карыстальніка
• 1 х кабель для зарадкі USB-C

4. Кіраўніцтва па наладцы

4.1. Распакаванне

Выдаліце ​​ўсе ўпаковачныя матэрыялы і пераканайцеся, што ўсе кампаненты наяўныя і непашкоджаныя.

4.2. Устаноўка фільтра

1. Зніміце вечка са збана.
2. Unpack the Plus filter (ADD566) from its protective packaging.
3. Insert the filter into the designated slot in the pitcher's reservoir. Twist it clockwise to secure it in place.
4. Replace the lid, ensuring it is properly aligned.

4.3. Першапачатковае выкарыстанне

1. Fill the pitcher with tap water through the flip-top lid.
2. Press the dispense button to filter and dispense the first full pitcher of water. Discard this water, as it may contain carbon dust from the new filter.
3. The pitcher is now ready for regular use.

5. Charging the Pitcher

The Philips Water Filter Pitcher is equipped with a rechargeable battery to power its dispensing mechanism. A full charge can last up to 30 days with typical usage.

• Connect the provided USB-C charging cable to the charging port located on the side of the pitcher.
• Plug the other end of the USB-C cable into a DC5V, ≥1A USB charger (not included).
• The indicator light on the dispenser will flash yellow when the battery is low, signaling that a recharge is needed.
• During charging, the indicator light will flash yellow.
• Once fully charged, the indicator light will turn a constant yellow.

6. Інструкцыя па эксплуатацыі

6.1. Напаўненне збана

1. Lift the small flip-top lid located on the main lid of the pitcher.
2. Pour cold tap water into the reservoir. The design allows for easy one-handed refilling.
3. Close the flip-top lid securely after filling.

6.2. Падача вады

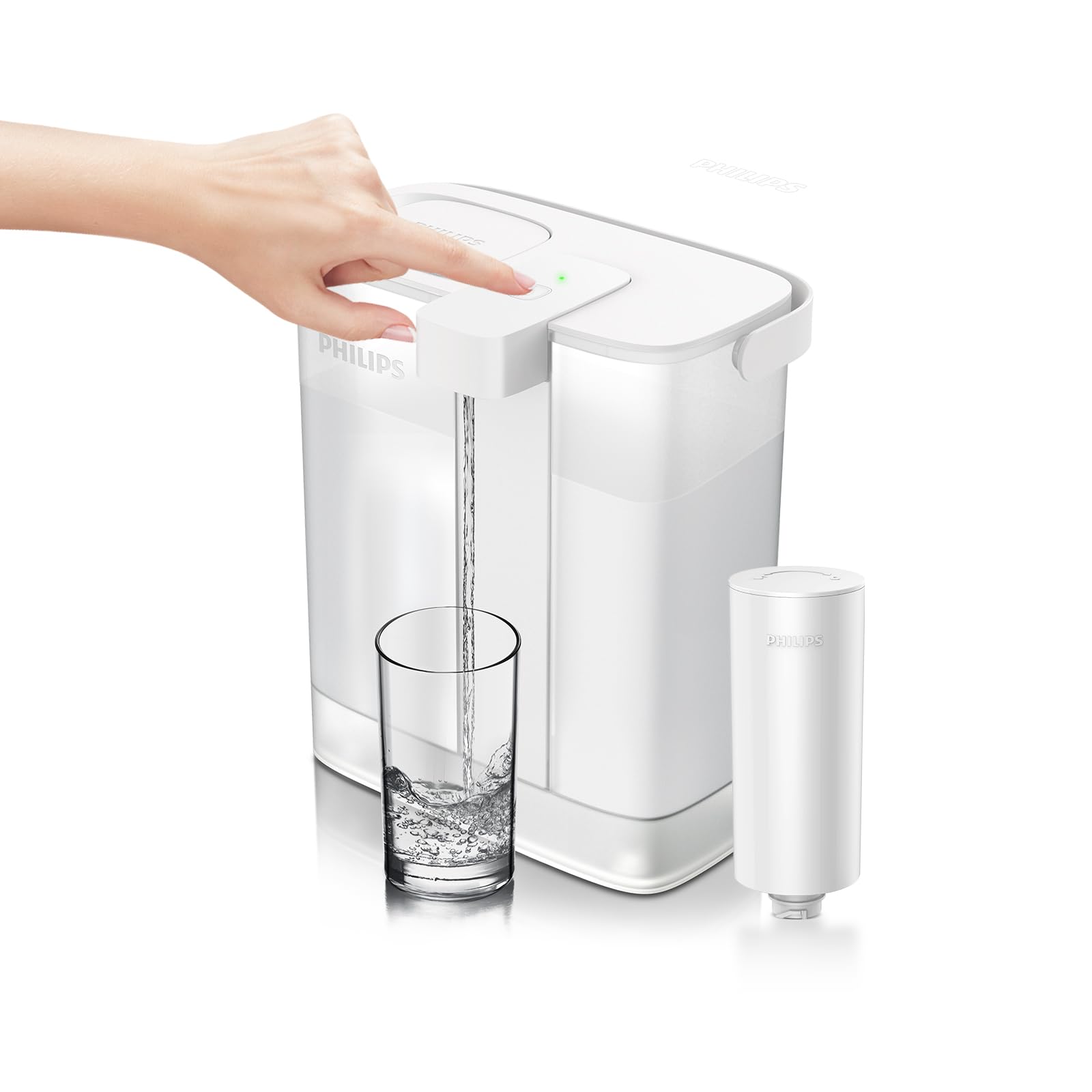

1. Падстаўце шклянку або ёмістасць пад распыляльнік.
2. Press the mechanical button on the front of the dispenser. Water will flow instantly.
3. Адпусціце кнопку, каб спыніць паток вады.

6.3. Filter Life and Battery Indicator

The LED indicator light provides information about the pitcher's status:

• Зялёнае святло: Water is being dispensed.
• Міргае жоўтае святло: Battery is low; recharge soon.
• Constant Yellow Light: Зарадка завершана.
• Мігае чырвонае святло: Фільтр трэба хутка замяніць.
• Пастаяннае чырвонае святло: Filter has expired; replace immediately.

7. Догляд і абслугоўванне

7.1. Ачыстка збана

1. Disconnect the charging cable before cleaning.
2. Hand wash the pitcher, lid, and reservoir with mild soap and warm water.
3. Do not place the electronic dispensing unit in a dishwasher or immerse it in water. Wipe it clean with a damp тканіна.
4. Rinse all parts thoroughly and allow them to air dry completely before reassembling.

7.2. Замена фільтра

The Philips Plus filter (ADD566) should be replaced every 3 months or after filtering 60 gallons of water, whichever comes first. The filter lifetime indicator will alert you when replacement is due.

1. Remove the lid and the old filter by twisting it counter-clockwise.
2. Утылізуйце стары фільтр адказна.
3. Install a new Philips Plus filter (ADD566) as described in the Setup Guide (Section 4.2).
4. Reset the filter lifetime indicator by pressing and holding the dispense button for 5 seconds until the light turns green.

8. Выпраўленне непаладак

9. Тэхнічныя характарыстыкі прадукту

10. Гарантыя і падтрымка

Каб атрымаць інфармацыю аб гарантыі і падтрымцы кліентаў, звярніцеся да афіцыйнага прадстаўніка Philips. webсайт або звярніцеся непасрэдна ў службу падтрымкі кліентаў. Захоўвайце пацвярджэнне пакупкі для прэтэнзій па гарантыі.
