BAFANG 48V500W CAN Protocol Mid Drive Motor Controller

Уводзіны

This manual provides comprehensive instructions for the BAFANG 48V500W CAN Protocol Mid Drive Motor Controller. This controller is designed as a replacement for BBS/HD series mid-drive ebike motors, featuring the latest CAN protocol for enhanced performance and reliability. It integrates tail light connectivity and battery communication ports, aiming to provide smoother power output and reduced operational noise.

Асноўныя характарыстыкі

• 2025 Latest CAN Protocol Upgrade: Features added tail light and battery communication ports for seamless compatibility with BAFANG CAN version BBS/HD mid-drive ebike motors. Delivers smoother power output and quieter operation compared to older models.
• Smart Ebike Riding Customization: Programmable via BAFANG-specific display to adjust speed limits, pedal-assist parameters, and slow start and graded current distribution functions. Allows for personalized riding experiences.
• Durable & Compact Design: Precision-engineered with premium materials for enhanced anti-interference and a long operational lifespan. Compact dimensions ensure easy installation and seamless integration with original motor setups.
• Enhanced Safety & Reliability: Speed limits apply to both pedal-assist and throttle modes, preventing motor overload. Stable voltage output reduces ride vibration and ensures long-distance performance.

Настройка і ўстаноўка

The BAFANG mid-drive ebike motor controller is designed for straightforward installation. Before installation, verify the voltagПраверце характарыстыкі і магутнасць вашага існуючага рухавіка, каб пераканацца ў сумяшчальнасці з новым кантролерам.

Сумяшчальнасць

• Compatible with BAFANG CAN version BBS/HD mid-drive ebike motors.
• Падтрымлівае сістэмы 36 В, 48 В і 52 В.
• Suitable for 500W, 750W, and 1000W motors, seamlessly replacing controllers for BBS01B, BBS02B, and BBS-HD BAFANG mid-drive motors.

Этапы ўстаноўкі

1. Падрыхтоўка: Ensure your ebike is powered off and the battery is disconnected before beginning installation.
2. Removal of Old Controller: Carefully disconnect and remove the existing motor controller from your ebike. Note the wiring connections for reference.
3. New Controller Placement: Position the BAFANG 48V500W controller in the designated area. Its compact design facilitates integration.
4. Падключэнне правадоў: Connect the new controller to your motor, battery, display, and other components. Pay attention to the tail light and battery communication ports for proper integration.
5. Бяспечная ўстаноўка: Securely fasten the controller to prevent movement during operation.
6. Канчатковая праверка: Before powering on, double-check all connections to ensure they are firm and correctly aligned.

Detailed video guides are available to assist with the installation process. Refer to the support section for access to these resources.

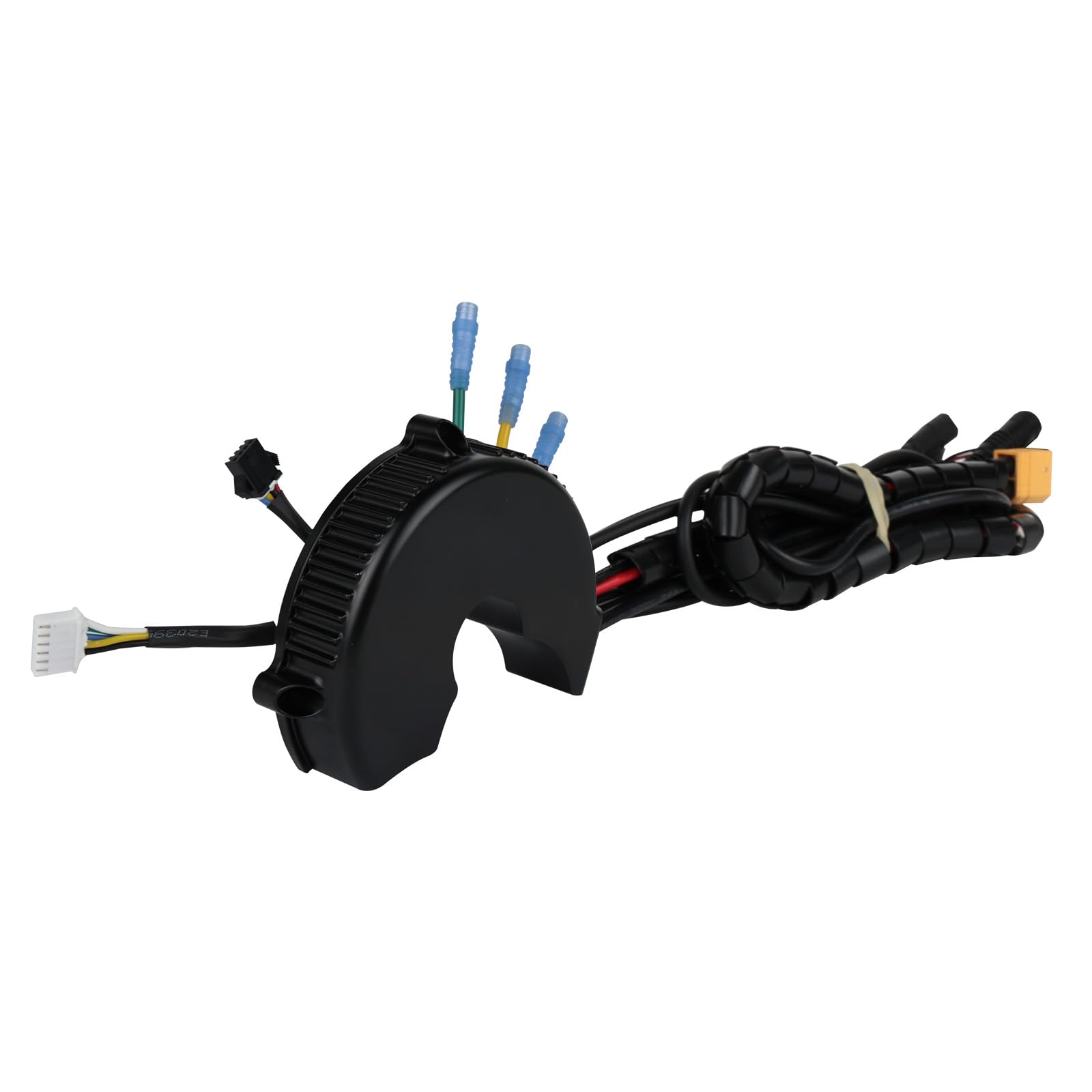

Image: The BAFANG 48V500W CAN Protocol Mid Drive Motor Controller, showcasing its compact design and integrated ports.

Інструкцыя па эксплуатацыі

Once installed, the controller allows for customized ebike operation through a BAFANG-specific display.

Customizing Riding Experience

• Абмежаванні хуткасці: Adjust the maximum speed for both pedal-assist and throttle modes to comply with local regulations or personal preference.
• Параметры дапамогі пры кручэнні педаляў: Configure the level of assistance provided by the motor based on your pedaling input.
• Функцыя павольнага старту: Modify the initial power delivery to ensure a smooth and controlled acceleration from a standstill.
• Градуяванае размеркаванне току: Fine-tune how power is distributed across different assist levels for optimal efficiency and feel.

These adjustments are made through the connected BAFANG display unit. Refer to your display's user manual for specific navigation and setting procedures.

Тэхнічнае абслугоўванне

The BAFANG 48V500W controller is designed for durability and minimal maintenance.

• Ахова навакольнага асяроддзя: The controller features an IP67-rated casing, providing resistance against vibration, dust, and moisture. While robust, avoid submerging the controller in water.
• Рэгулярны агляд: Periodically check all cable connections to ensure they remain secure and free from corrosion or damage.
• Уборка: Clean the exterior of the controller with a soft, damp тканіна. Не выкарыстоўвайце агрэсіўныя хімікаты або абразіўныя матэрыялы.

Ліквідацыю непаладак

This section addresses common issues you might encounter. The BAFANG 48V500W controller is designed for high reliability, aiming to reduce common after-sales issues.

• Няма харчавання/Рухавік не рэагуе:
  • Check all power connections, including the battery and motor cables, to ensure they are securely connected.
  • Праверце ўзровень зарада батарэі.
  • Ensure the display unit is powered on and functioning correctly.
• Нестабільная выхадная магутнасць:
  • Inspect motor and sensor cables for any damage or loose connections.
  • Check for error codes on your BAFANG display, which can indicate specific issues.
• Незвычайныя шумы:
  • While the controller is designed for quieter operation, any new or unusual noises from the motor area should be investigated. This may indicate a mechanical issue with the motor rather than the controller.

If you encounter persistent issues not resolved by these steps, please contact BAFANG customer support for further assistance.

Тэхнічныя характарыстыкі

Гарантыя і падтрымка

Інфармацыя аб гарантыі

The BAFANG 48V500W CAN Protocol Mid Drive Motor Controller comes with a адзін год гарантыі з даты пакупкі. Акрамя таго, 30-дзённая палітыка вяртання is available. Please retain your proof of purchase for warranty claims.

Падтрымка кліентаў

For any questions regarding installation, operation, troubleshooting, or warranty claims, BAFANG offers 24/7 customer support. Detailed video guides are also available to assist with installation and common queries.

Please visit the official BAFANG website or contact their customer service department for support resources.
