Уводзіны
Thank you for choosing the SKY LAND Home Gym Station GM-8149. This multi-functional fitness equipment is designed to provide a comprehensive full-body workout in the comfort of your home. Featuring a robust steel frame, a 69kg weight stack, and a smooth cable system, the GM-8149 supports a wide range of strength training exercises. Please read this manual thoroughly before assembly and operation to ensure safe and effective use of your new home gym.
Важная інфармацыя па бяспецы
To reduce the risk of serious injury, please read and follow all warnings and instructions before using this equipment.
- Пракансультуйцеся з урачом перад пачаткам любой праграмы практыкаванняў.
- Трымайце дзяцей і хатніх жывёл далей ад абсталявання падчас выкарыстання.
- Place the equipment on a flat, stable surface with adequate clearance around it.
- Inspect the equipment for worn or loose parts before each use. Do not use if any components are damaged.
- Перад выкарыстаннем пераканайцеся, што ўсе балты і гайкі надзейна зацягнуты.
- Use proper form and controlled movements during exercises. Do not overexert yourself.
- Максімальная вага карыстальніка для гэтага абсталявання складае 200 кг.
- Апранайце адпаведную вопратку і абутак для заняткаў спортам.
Змест пакета
Перад пачаткам зборкі пераканайцеся, што ўсе кампаненты ёсць у наяўнасці і не пашкоджаны. Калі якія-небудзь дэталі адсутнічаюць або пашкоджаныя, звярніцеся ў службу падтрымкі кліентаў.
- Main Frame Components (various steel tubes and supports)
- Weight Stack (9 x 7kg plates + 1 x 6kg plate, total 69kg)

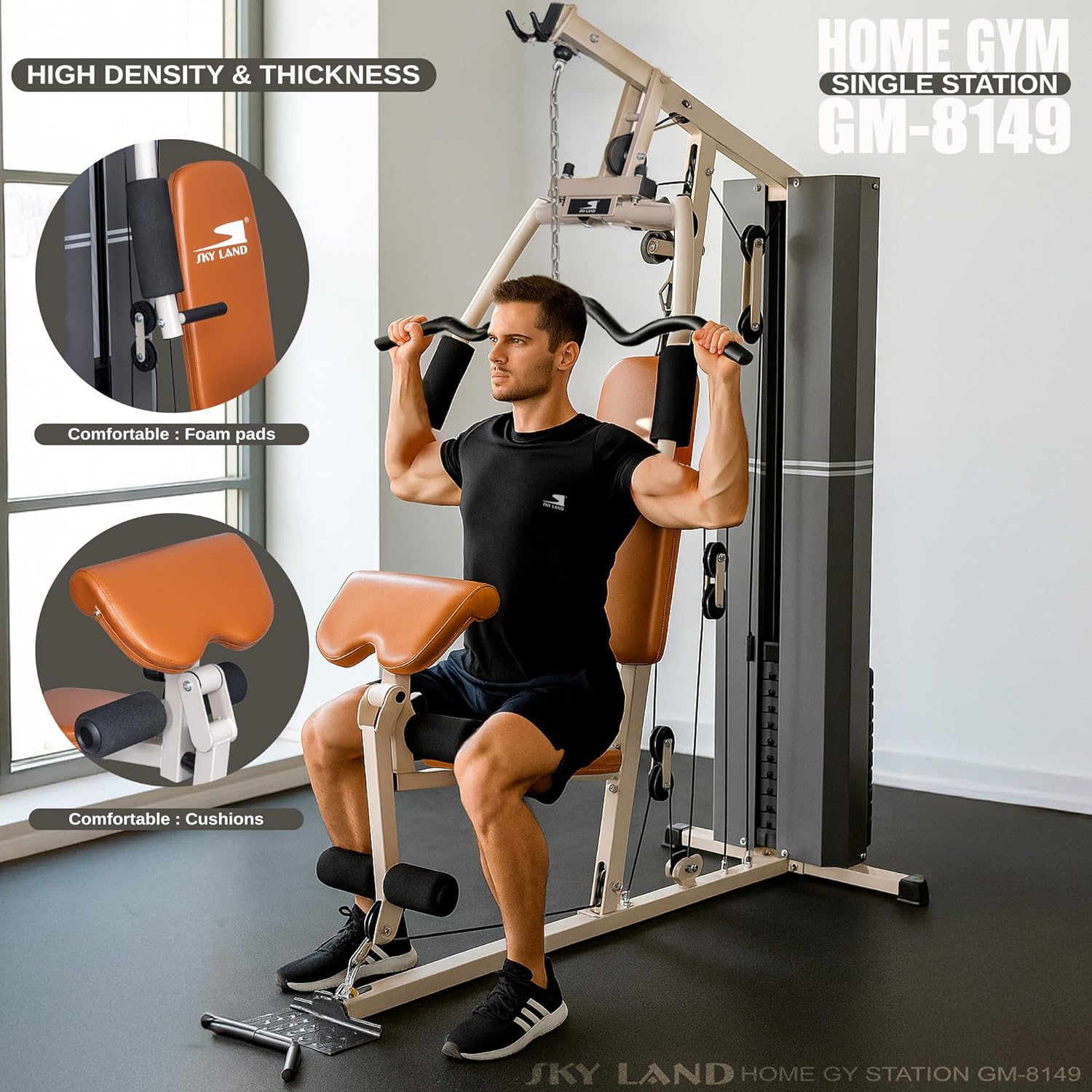

- Мяккае сядзенне і спінка
- Cable and Pulley System
- Leg Rest and Arm Pad
- L-shaped Handles
- Accessories: Wide Grip Seat Bar, Lat Pull-Down Bar, Preacher Curl калодка
- Hardware Kit (bolts, nuts, washers, tools)
- Схема інструкцыі па зборцы
Інструкцыі па ўсталёўцы і зборцы
Assembly typically requires two people and can take several hours. Follow the included assembly diagram carefully. If you encounter difficulties, especially with the cable system, refer to the detailed diagrams or contact SKY LAND customer support.
- Распакаваць і ўпарадкаваць: Lay out all components and hardware. Compare with the parts list to ensure everything is present.
- Зборка асновай рамы: Connect the main base supports and uprights using the provided bolts and nuts. Do not fully tighten until all major frame components are in place.
- Усталяваць сядзенне і спінку: Attach the padded seat and backrest to the frame. Adjust for comfort if adjustable.
- Mount Weight Stack: Carefully install the weight plates into the designated stack area. Ensure the guide rods are properly aligned.
- Route Cable System: This is a critical step. Follow the cable routing diagram precisely, ensuring cables pass through all pulleys correctly. Incorrect routing can lead to malfunction or damage. Ensure pulleys move smoothly.
- Далучыць аксэсуары: Secure the leg rest, arm pad, and various handles/bars.
- Final Tightening and Inspection: Once all components are assembled, go back and securely tighten all bolts and nuts. Check all moving parts, especially the cables and pulleys, for smooth operation and proper alignment.
Operating Instructions & Exercise Guide
The SKY LAND GM-8149 offers a variety of exercises for a full-body workout. Always warm up before exercising and cool down afterwards.
Adjusting Weight Resistance
To adjust the weight, insert the selector pin into the desired weight plate in the stack. Ensure the pin is fully inserted before beginning your exercise.
Common Exercises
- Lat Pulldowns: Sit facing the machine, grasp the lat pulldown bar with an overhand grip. Pull the bar down to your upper chest, squeezing your shoulder blades.
- Жым лежачы: Sit on the bench, grasp the press handles. Push forward, extending your arms, then slowly return to the starting position.
- Выцягванне ног: Sit on the seat, place your shins behind the leg pad. Extend your legs forward, contracting your quadriceps.
- Біцэпс Зurls: Use the preacher curl pad and the lower cable attachment. Curl the bar upwards, focusing on your biceps.
- Seated Rows: Use the lower cable attachment and a suitable handle. Sit with feet on the footplates, pull the handle towards your abdomen, squeezing your back muscles.
- Скручанні прэса: Use the upper cable attachment and a rope handle. Kneel facing away from the machine, pull the rope down towards your hips, engaging your core.
Always maintain control of the weight throughout the entire range of motion. Avoid dropping the weight stack.
Тэхнічнае абслугоўванне
Рэгулярнае тэхнічнае абслугоўванне гарантуе даўгавечнасць і бяспечную працу вашай хатняй трэнажорнай залы.
- штодня: Працярыце абсталяванне рэкламайamp тканіна пасля кожнага выкарыстання для выдалення поту і пылу.
- штотыдзень: Inspect all cables for fraying or wear. Check all pulleys for smooth rotation.
- Штомесяц: Check all bolts and nuts for tightness. Retighten as necessary. Lubricate moving parts, especially guide rods and pivot points, with a silicone-based lubricant.
- Сыход за абіўкай: Clean padded surfaces with mild soap and water. Avoid harsh chemicals.
Ліквідацыю непаладак
If you encounter issues with your home gym, refer to the following common problems and solutions:
| праблема | Магчымая прычына | Рашэнне |
|---|---|---|
| Noisy operation / Squeaking | Lack of lubrication on moving parts or pulleys. | Apply silicone-based lubricant to guide rods and pulley axles. |
| Rough cable movement | Incorrect cable routing or worn pulleys. | Check cable routing against the diagram. Inspect pulleys for damage and replace if necessary. |
| Loose parts / Instability | Bolts and nuts have loosened over time. | Inspect and retighten all bolts and nuts. |
| Weight stack not moving freely | Guide rods are dirty or bent, or selector pin is not fully inserted. | Clean and lubricate guide rods. Ensure selector pin is fully engaged. If rods are bent, contact support. |
If the problem persists after attempting these solutions, please contact SKY LAND customer support for further assistance.
Тэхнічныя характарыстыкі прадукту
| Асаблівасць | Дэталь |
|---|---|
| Нумар мадэлі | GM-8149 |
| Марка | НЕБА ЗЕМЛЯ |
| Вага прадмета | 127 кг |
| Матэрыял | Plastic, Alloy Steel, Rust-resistant Steel, Rubber |
| Памеры прадукту (Д х Ш х У) | 180 см х 97 см х 205 см |
| Узровень напружання | 130 фунта |
| Узровень супраціву | 130 фунта |
| Тып ручкі | пенапласт |
| Рэмень Тып | Cable/Pulley |
| Стэк вагі | 69 kg (9 x 7kg + 1 x 6kg plates) |
| Максімальная вага карыстальніка | 200 кг |
| Краіна паходжання | Кітай |
Інфармацыя аб гарантыі
This product comes with a standard manufacturer's warranty against defects in materials and workmanship. The specific terms and duration of the warranty may vary by region. Please retain your proof of purchase for warranty claims. For detailed warranty information, refer to the documentation included with your product or contact SKY LAND customer support.
Падтрымка кліентаў
If you have any questions, require assistance with assembly, or need to report a missing/damaged part, please contact SKY LAND customer support. Our team is available to help you with any product-related inquiries.
Please have your model number (GM-8149) and proof of purchase ready when contacting support.
For contact details, please refer to the packaging or the official SKY LAND webсайт.
