1. Уводзіны
The LenxTi LGA52.171B27 Gas Burner Control is designed for the reliable startup and supervision of atmospheric gas burners operating in intermittent mode. This control unit monitors the flame using an ionization probe, ensuring safe and efficient operation. It is suitable for industrial production equipment and is fully compatible with equivalent SIEMENS series products.
2. Важная інфармацыя па бяспецы
Read all instructions carefully before installation and operation. Failure to follow these instructions could result in property damage, serious injury, or death.
- Усталёўку і абслугоўванне павінны выконваць толькі кваліфікаваныя спецыялісты.
- Disconnect power before performing any work on the control unit or burner system.
- Забяспечце належнае зазямленне, каб прадухіліць паражэнне электрычным токам.
- Verify all wiring connections are secure and correct according to local codes and wiring diagrams.
- Do not operate the burner control if it is damaged or has been exposed to moisture.
- This device is designed for specific applications; do not use it for purposes other than those specified.
3. Асаблівасці прадукту
- Designed for startup and supervision of atmospheric gas burners.
- Intermittent operation capability.
- Flame supervision via ionization probe.
- Robust and durable construction, tested for long service life.
- Standard size and specifications for direct replacement.
- Compatible with SIEMENS series products of the same type.
- Працоўны выпtage: 220-240 В ~.
- Частата: 50-60 Гц.
- Power consumption: 3VA.
- Ingress Protection: IP40.
- Safety Time (TSA): ≤10s, TSA max: ≤20s.
- EN 298:2012 compliant.
4. Настройка і ўстаноўка
The LenxTi LGA52.171B27 is designed for easy installation as a direct replacement for compatible burner controls.
4.1 Праверкі перад устаноўкай
- Ensure the power supply matches the control unit's requirements (220-240V~, 50-60Hz).
- Verify that the existing wiring and system components are in good working order.
- Confirm that the mounting location is free from excessive heat, moisture, and vibration.
4.2 Этапы ўстаноўкі
- Адключыць харчаванне: Turn off the main power supply to the burner system at the circuit breaker.
- Remove Old Unit (if applicable): Carefully disconnect all wiring from the existing burner control and remove it from its mounting. Note the position of each wire for correct re-connection.
- Усталяваць новы блок: Securely mount the LenxTi LGA52.171B27 in the designated location.

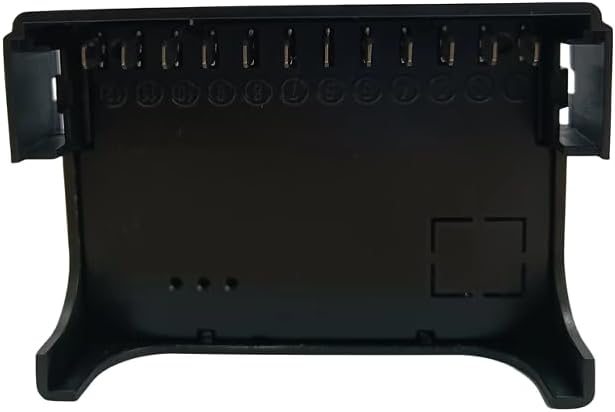

- Правадныя злучэнні: Connect the system wiring to the appropriate terminals on the LGA52.171B27. Refer to the burner system's specific wiring diagram for accurate connections. Pay close attention to power, ground, flame sensor, and valve connections.
- Праверка злучэнняў: Double-check all wiring for correct placement and secure connections.
- Аднавіць сілу: Once all connections are verified, restore power to the burner system.
5. Інструкцыя па эксплуатацыі
The LGA52.171B27 operates automatically once installed and powered. It manages the startup sequence and continuous supervision of the gas burner.
5.1 Паслядоўнасць запуску
- Upon power-up, the control unit initiates a self-check.
- It then proceeds with pre-purge (if configured by the burner system).
- Ignition is initiated, and the gas valve opens.
- The ionization probe detects the flame.
- If a stable flame is detected within the Safety Time (TSA ≤10s, max ≤20s), the burner continues operation.
- If no flame is detected, or if the flame is lost during operation, the control unit will enter a lockout state.
5.2 Нармальная праца
During normal operation, the LGA52.171B27 continuously monitors the flame signal. If the flame signal is lost, the unit will shut down the gas supply and enter a lockout state for safety.
5.3 Resetting After Lockout
If the control unit enters a lockout state, it typically requires a manual reset. Refer to your specific burner system's instructions for the reset procedure, which usually involves cycling the power or pressing a reset button on the burner system. Investigate and resolve the cause of the lockout before resetting.
6. Тэхнічнае абслугоўванне
The LenxTi LGA52.171B27 Gas Burner Control is designed for robust and reliable operation with minimal maintenance. However, regular checks of the overall burner system are recommended.
- Штогадовая праверка: Have a qualified technician inspect the entire burner system annually, including the burner control, flame sensor (ionization probe), and wiring connections.
- Чысціня: Ensure the control unit and its surroundings are kept clean and free from dust, debris, and moisture.
- Цэласнасць праводкі: Periodically check all wiring connections for tightness and signs of wear or damage.
- Датчык полымя: Ensure the ionization probe is clean and correctly positioned for optimal flame detection.
Заўвага: Do not attempt to open or repair the control unit yourself. Refer all servicing to qualified personnel.
7. Выпраўленне непаладак
У гэтым раздзеле прыведзены агульныя рэкамендацыі па вырашэнні распаўсюджаных праблем. У выпадку складаных праблем звярніцеся да кваліфікаванага спецыяліста.
| праблема | Магчымая прычына | Рашэнне |
|---|---|---|
| Гарэлка не запускаецца | Няма харчавання на блок кіравання | Check circuit breaker and power supply. |
| Гарэлка не запускаецца | Control unit in lockout | Reset the burner system. Investigate cause of lockout (e.g., no gas, faulty ignition). |
| Burner ignites but immediately shuts down | Weak or no flame signal | Check ionization probe for cleanliness, position, and wiring. Ensure stable gas supply. |
| Intermittent operation/unexpected shutdowns | Unstable power supply or faulty connections | Verify power supply stability. Check all wiring connections for tightness. |

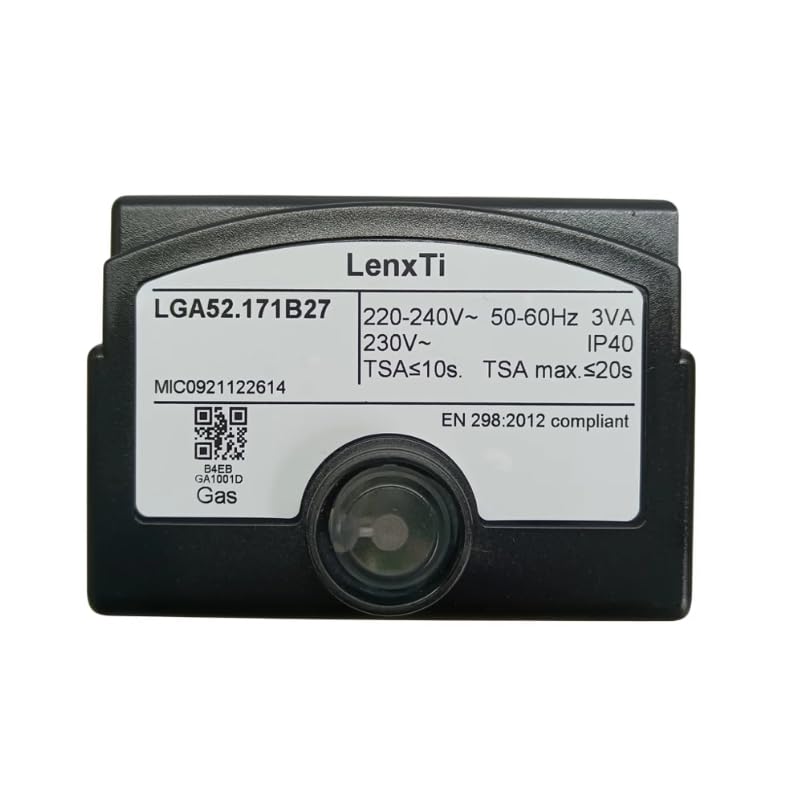

8. Тэхнічныя характарыстыкі
- мадэль: LGA52.171B27
- Марка: LenxTi
- вытворца: Shenzhen LenxTi Software Tech Co., Ltd.
- Ужыванне: Startup and supervision of atmospheric gas burners
- Рэжым працы: Перарывісты
- Flame Supervision: Іанізацыйны зонд
- тtage: 220-240 В ~
- Частата: 50-60 Гц
- Спажываная магутнасць: 3 ВА
- Рэйтынг абароны ад пранікнення (IP): IP40
- Safety Time (TSA): ≤10s (startup), ≤20s (max)
- Адпаведнасць: EN 298:2012
- Вага: 200 грам
- Уключаныя кампаненты: Burner controller
- Сумяшчальнасць: Fully compatible with SIEMENS series products of the same type.
9. Гарантыя і падтрымка
9.1 Інфармацыя аб гарантыі
This LenxTi LGA52.171B27 Gas Burner Control comes with a Гарантыя 1 год from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from improper installation, misuse, accidents, unauthorized repairs, or modifications.
9.2 Тэхнічная падтрымка
For technical assistance, installation queries, or troubleshooting beyond the scope of this manual, please contact LenxTi customer support.
электронная пошта: support@lenxti.com (Note: This is a placeholder email address for demonstration purposes. Refer to your product packaging or official LenxTi website for actual support contact information.)
When contacting support, please provide your product model number (LGA52.171B27) and a detailed description of the issue.
