SKY LAND EM-1266 Treadmill and EM-9362 Ab Roller Instruction Manual

1. Уводзіны

Thank you for choosing the SKY LAND EM-1266 Foldable Treadmill and EM-9362 Smart Rebound Ab Roller bundle. This comprehensive fitness package is designed to provide effective cardio and core training in the comfort of your home. This manual contains important information regarding the safe assembly, operation, and maintenance of your new fitness equipment. Please read it thoroughly before use and retain it for future reference.

Image 1.1: The SKY LAND EM-1266 Treadmill and EM-9362 Ab Roller setup in a home environment.

2. Інфармацыя па бяспецы

ПАПЯРЭДЖАННЕ: To reduce the risk of serious injury, read all important precautions and instructions in this manual before using the treadmill or ab roller. SKY LAND assumes no responsibility for personal injury or property damage sustained by or through the use of this product.

Агульныя меры бяспекі:

• Перад пачаткам любой праграмы практыкаванняў пракансультуйцеся з урачом.
• Трымайце дзяцей і хатніх жывёл далей ад абсталявання падчас працы.
• Размясціце абсталяванне на цвёрдай, роўнай паверхні з дастатковай вольнай прасторай вакол яго.
• Апранайце адпаведную спартыўную вопратку і абутак.
• Do not use the equipment if you feel dizzy, faint, or experience pain. Stop exercising immediately.
• Inspect the equipment for wear or damage before each use. Do not use if damaged.
• Перад выкарыстаннем пераканайцеся, што ўсе балты і гайкі надзейна зацягнуты.

Treadmill Specific Safety:

• Заўсёды прымацуйце заціск для ключа бяспекі да адзення перад запускам бегавой дарожкі.
• Do not step on the running belt when it is in motion.
• Hold the handrails when starting or stopping the treadmill.
• Не перавышайце максімальную вагу карыстальніка ў 100 кг.
• Адключайце бегавую дарожку ад разеткі, калі яна не выкарыстоўваецца або перад чысткай/тэхнічным абслугоўваннем.

Ab Roller Specific Safety:

• Use the included knee pad to protect your knees during exercise.
• Maintain a controlled movement throughout the exercise to prevent injury.
• Ensure the ab roller is on a stable, non-slip surface.

3. Змесціва ўпакоўкі

Перад пачаткам зборкі пераканайцеся, што ўсе кампаненты ў наяўнасці. Калі якія-небудзь дэталі адсутнічаюць або пашкоджаныя, звярніцеся ў службу падтрымкі кліентаў.

• SKY LAND EM-1266 Treadmill (Main Frame, Console, Running Belt)
• SKY LAND EM-9362 Ab Roller (Main unit, Detachable Handles, Knee Pad)
• Шнур харчавання
• Ключ бяспекі
• Кіраўніцтва карыстальніка (гэты дакумент)
• Інструменты для зборкі (калі ў камплекце)

4. Інструкцыя па зборцы

Assembly is required for both the treadmill and the ab roller. Follow the steps carefully.

4.1. SKY LAND EM-1266 Treadmill Assembly

The treadmill features a hydraulic soft-drop folding system for easier setup. While some components may come pre-assembled, final assembly typically involves attaching the console, handrails, and securing various parts.

1. Unpack all components and place them on a clear, flat surface.
2. Carefully lift the uprights and console mast into position.
3. Attach the console to the uprights, ensuring all cables are connected correctly.
4. Secure all bolts and nuts as indicated in the assembly diagram (refer to the separate assembly sheet if provided).
5. Ensure the running belt is centered and tensioned correctly.

Image 4.1: The treadmill's folding mechanism, manual incline adjustment, and transport wheels.

4.2. SKY LAND EM-9362 Ab Roller Assembly

The ab roller is designed for quick and easy assembly.

1. Attach the detachable handles to the main ab roller unit. Ensure they click securely into place.
2. The knee pad is ready for use.

Image 4.2: The SKY LAND EM-9362 Ab Roller.

5. Настройка

5.1. Treadmill Placement

Place the treadmill on a flat, stable surface. Ensure there is at least 2 meters of clear space behind the treadmill and 0.5 meters on each side for safe operation and emergency dismount. Connect the power cord to a grounded electrical outlet.

5.2. Ab Roller Placement

The ab roller can be used on various floor types, including tile, wooden flooring, carpet, and concrete flooring, thanks to its 6-layer design for maximum strength and floor protection. Ensure the surface is clear of obstructions.

Image 5.1: The 6-layer construction of the Ab Roller for floor protection.

6. Operating Instructions - SKY LAND EM-1266 Treadmill

6.1. Кансоль надview

The 5-inch LCD display shows key workout metrics. The console includes buttons for speed adjustment, program selection, and music control.

Image 6.1: The treadmill's LCD console and control panel.

6.2. Запуск і прыпынак

1. Пераканайцеся, што ключ бяспекі правільна размешчаны на кансолі і прышпілены да вашай вопраткі.
2. Націсніце СТАРТ button to begin your workout. The belt will start moving at a low speed.
3. Каб спыніць, націсніце СТОП кнопку або пацягніце ключ бяспекі.

6.3. Рэгуляванне хуткасці

Выкарыстоўвайце + і - buttons on the console to increase or decrease the running belt speed. The treadmill offers speeds from 0.8 to 14 km/h. Quick speed buttons (e.g., 2, 4, 6, 8, 10, 12 km/h) are also available for rapid adjustments.

6.4. Adjusting Incline

The EM-1266 treadmill features 3 levels of manual incline. To adjust the incline, you must manually change the position of the incline mechanism located at the rear of the treadmill. Ensure the treadmill is off and unplugged before adjusting the incline.

6.5. Папярэдне зададзеныя праграмы

The treadmill includes 12 preset workout programs. Use the ПРАГРАМА button to cycle through the available programs. Each program offers varying speed and incline profiles to challenge your workout.

6.6. Маніторынг ЧСС

Grip the pulse sensors on the handrails to monitor your heart rate. Your heart rate will be displayed on the LCD screen.

6.7. Функцыя музыкі

Connect your audio device to the treadmill's AUX port to play music through the built-in Hi-Fi speakers. Adjust volume from your connected device.

6.8. Складванне і захоўванне

To fold the treadmill for storage, lift the running deck until it locks into an upright position. The hydraulic soft-drop system assists in this process. Use the built-in transport wheels to move the folded treadmill. To unfold, gently release the locking mechanism and lower the deck using the hydraulic system.

7. Operating Instructions - SKY LAND EM-9362 Ab Roller

7.1. Using the Ab Roller

The EM-9362 Ab Roller features an automatic rebound system and dual-wheel stability for effective core workouts.

1. Place the included knee pad on the floor. Kneel on the pad, holding the ab roller handles firmly.
2. Slowly roll the ab roller forward, extending your body while keeping your core engaged. The smart brake function will provide resistance.
3. Utilize the automatic rebound feature to smoothly return to the starting position. This spring-assisted rebound reduces strain and enhances safety.
4. Perform repetitions as desired, focusing on controlled movements.

Image 7.1: Illustration of the Ab Roller's smart brake and automatic rebound mechanism.

7.2. Функцыі камфорту

The ab roller is designed with comfortable elbow support, non-slip foam grips, and a padded knee mat to ensure safe and effective workouts.

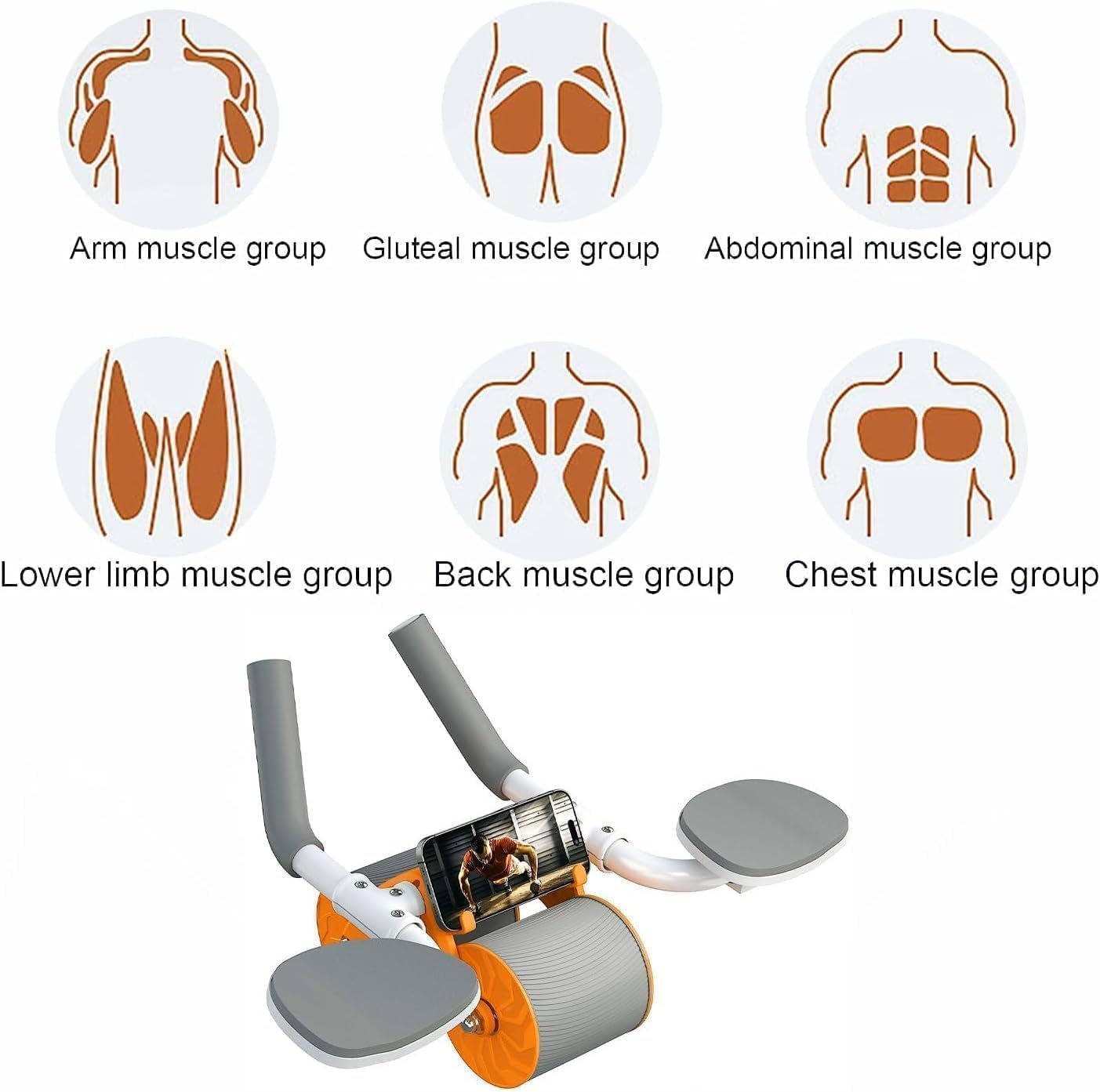

7.3. Target Muscle Groups

The ab roller effectively targets various muscle groups, including:

• Abdominal muscle group
• Arm muscle group
• Gluteal muscle group
• Lower limb muscle group
• Back muscle group
• Chest muscle group

Image 7.2: Muscle groups targeted by the Ab Roller.

8. Тэхнічнае абслугоўванне

Regular maintenance ensures the longevity and safe operation of your fitness equipment.

8.1. Treadmill Maintenance

• Уборка: Працярыце кансоль і іншыя паверхні рэкламайamp тканінай пасля кожнага выкарыстання. Пазбягайце абразіўных ачышчальнікаў.
• Змазка рамяня: Lubricate the running belt every few months or as indicated by usage. Refer to the specific instructions for your treadmill model for the correct lubricant and application method.
• Нацяжэнне і выраўноўванне рамяня: Periodically check the running belt for proper tension and alignment. Adjust if necessary according to the instructions in the full assembly guide.
• Агульны агляд: Рэгулярна правярайце ўсе балты і гайкі на надзейнасць зацягвання.

8.2. Ab Roller Maintenance

• Уборка: Wipe the ab roller with a damp тканіна пасля выкарыстання.
• захоўванне: Store in a dry place. The detachable handles allow for compact storage.

9. Выпраўленне непаладак

If you encounter issues with your equipment, refer to the following common problems and solutions.

9.1. Treadmill Troubleshooting

• Бегавая дарожка не запускаецца: Ensure the power cord is securely plugged in and the safety key is correctly placed on the console. Check the circuit breaker.
• Бегавая стужка слізгае або спыняецца: The running belt may need tensioning or lubrication. Refer to the maintenance section.
• Незвычайныя гукі: Check for loose parts or foreign objects under the belt. If the noise persists, contact customer support.
• Inaccurate heart rate reading: Ensure your hands are firmly gripping both pulse sensors. Skin moisture can affect readings.

9.2. Ab Roller Troubleshooting

• Handles feel loose: Ensure the detachable handles are fully inserted and locked into place.
• Ab roller not rebounding smoothly: Check for any obstructions or debris in the wheel mechanism. Ensure the spring is functioning correctly.

10. Тэхнічныя характарыстыкі

10.1. SKY LAND EM-1266 Treadmill Specifications

Image 10.1: Treadmill running surface dimensions.

10.2. SKY LAND EM-9362 Ab Roller Specifications

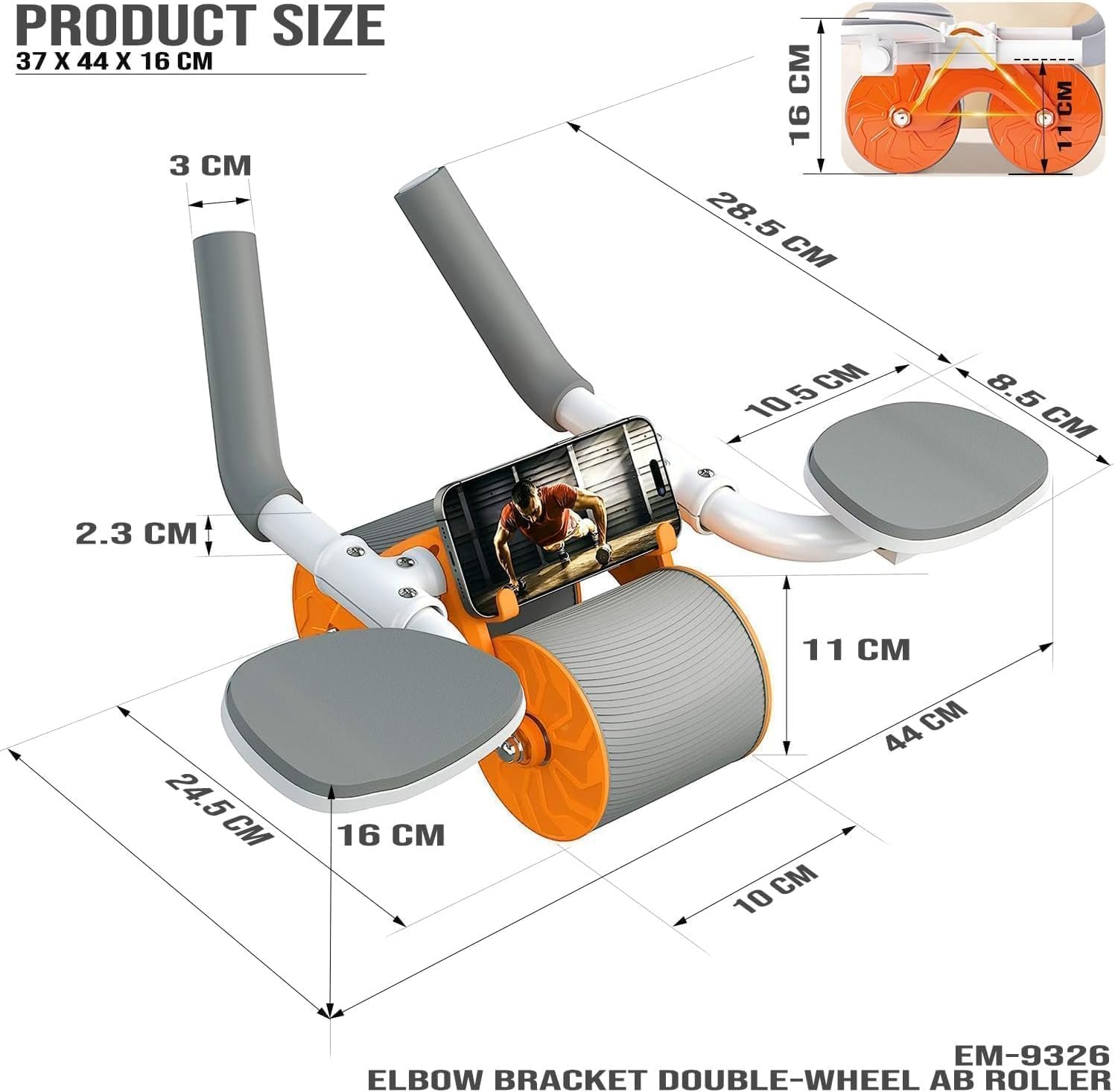

Image 10.2: Ab Roller product dimensions.

11. Гарантыя і падтрымка

The SKY LAND EM-1266 Treadmill and EM-9362 Ab Roller bundle comes with a Гарантыя 1 год з даты пакупкі. Гэтая гарантыя распаўсюджваецца на вытворчыя дэфекты пры нармальных умовах выкарыстання.

For warranty claims, technical support, or inquiries about replacement parts, please contact Top Sky Land General Trading LLC, the manufacturer. Please retain your proof of purchase for warranty validation.

вытворца: Top Sky Land General Trading LLC

Краіна паходжання: Кітай
